לוח אם – ASRock Z790 PG Lightning ATX 2.5GbE Lan LGA1700 DDR5

1,030.00 ₪

לוח אם איכותי מבית ASRock, בעל תושבת LGA1700, ערכת שבבים Z790, תאימות לזכרונות DDR5 ובעל יציאת HDMI.

המלאי אזל

מק״ט 90-MXBKA0-A0UAYZ קטגוריה לוחות אם תגיות 1700, Asrock, ATX, DDR5, Intel, Z790, שחור

עוד על - לוח אם – ASRock Z790 PG Lightning ATX 2.5GbE Lan LGA1700 DDR5

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	ASRock
מבוסס	Intel
תושבת	LGA1700
סוג זיכרון לוח אם	DDR5
גודל	ATX
NVMe PCIe M.2 Connector	4
תמיכה במעבדים	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
תמיכה בזיכרונות	Dual Channel DDR5 Memory Technology 4x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively* 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively
גרפיקה מובנית	Intel® Xe Graphics Architecture (Gen 12) 1x eDP 1.4, supports max. resolution up to Full HD 60Hz 1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz .Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated*
חריצי הרחבה	:CPU 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 1x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* 3x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire™ Supports NVMe SSD as boot disks*
USB	1x USB 3.2 Gen2x2 Type-C (Rear) 1x USB 3.2 Gen2 Type-A (Rear) 1x USB 3.2 Gen1 Type-C (Front) 9x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) 3x USB 2.0 (1 Rear, 2 Front) All USB ports support ESD Protection*
ממשק אחסון	:CPU 1x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* :Chipset 1x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 1x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD)* Supports NVMe SSD as boot disks Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
שמע	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
כרטיס רשת קווי	2.5Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
חיבורים פנימיים	1x eDP Signal Connector 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 3x Addressable LED Headers 1x CPU Fan Connector (4-pin)* 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1x 24 pin ATX Power Connector 2x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1x Front Panel Audio Connector 1x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1x USB 2.0 Header (Supports 2 USB 2.0 ports) 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W)* CPU_FAN2/WP supports the fan power up to 2A (24W)** CHA_FAN1~5/WP support the fan power up to 2A (24W)*** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use

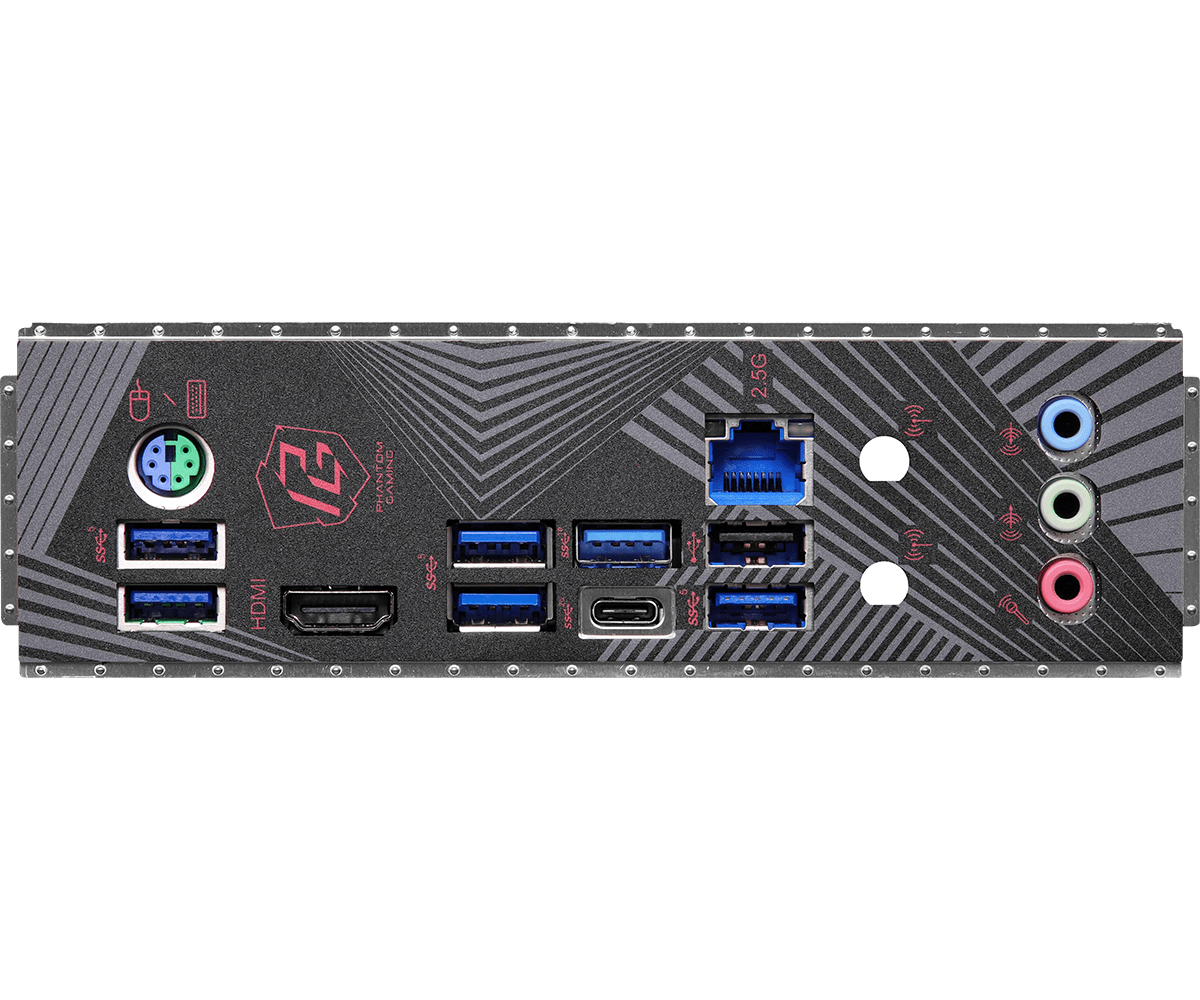

חיבורים ויציאות	2x Antenna Mounting Points 1x PS/2 Mouse/Keyboard Port 1x HDMI Port 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 5x USB 3.2 Gen1 Ports 1x USB 2.0 Port 1x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
תכונות ייחודיות	:Superb Productivity PCIe Gen5 (Graphics) Dual Channel DDR5 :Rock-Solid Durability 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield :Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer :EZ Troubleshooter ASRock Post Status Checker
תוכנות מצורפות	:Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC* :UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer .These utilities can be downloaded from ASRock Live Update & APP Shop*
אביזרים כלולים	1x User Manual 2x SATA Data Cables 5x Screws for M.2 Sockets 1x Standoff for M.2 Socket
תצורה	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
קישור לאתר היצרן	https://pg.asrock.com/mb/Intel/Z790PGLightning/index.asp#Overview
