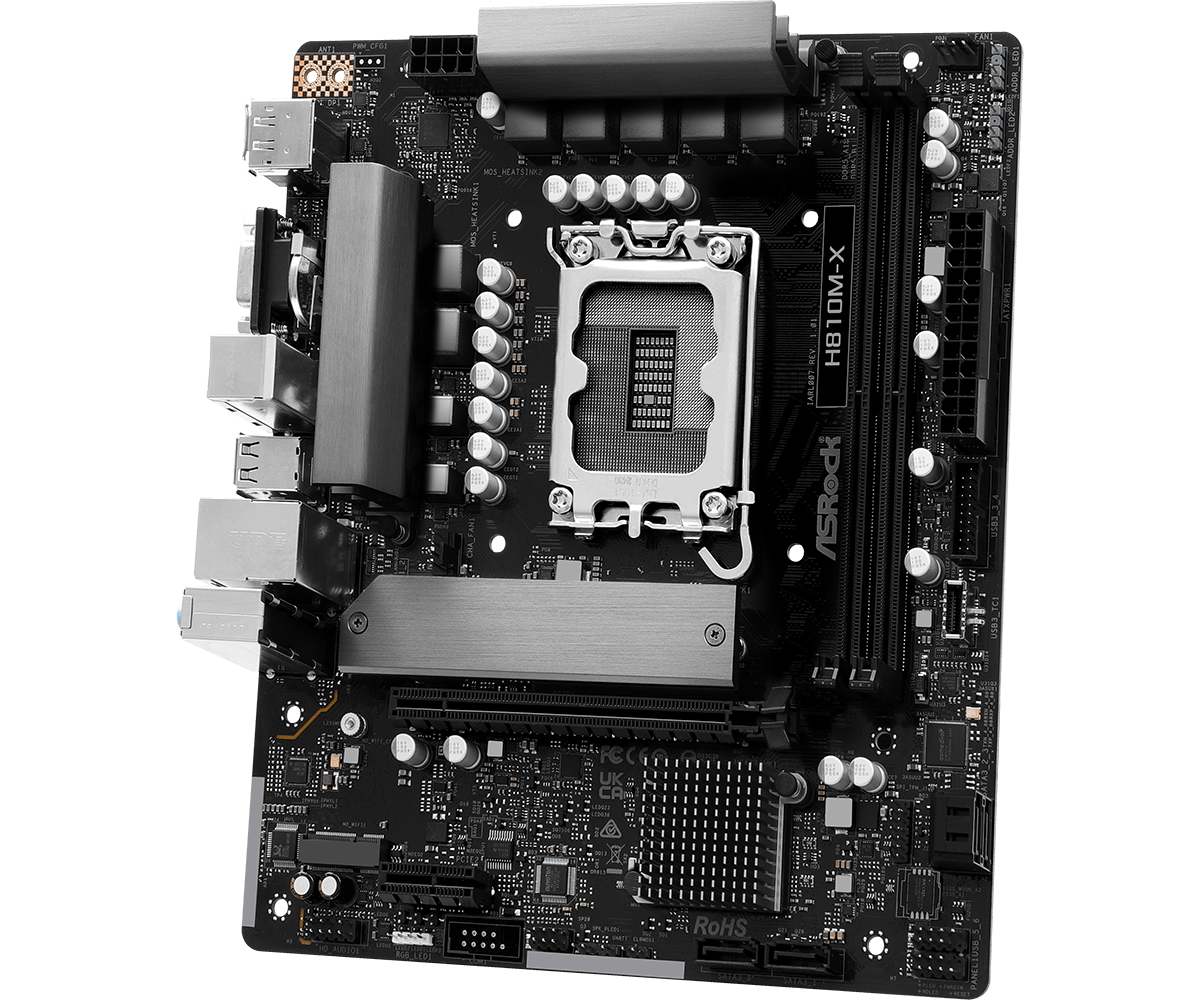

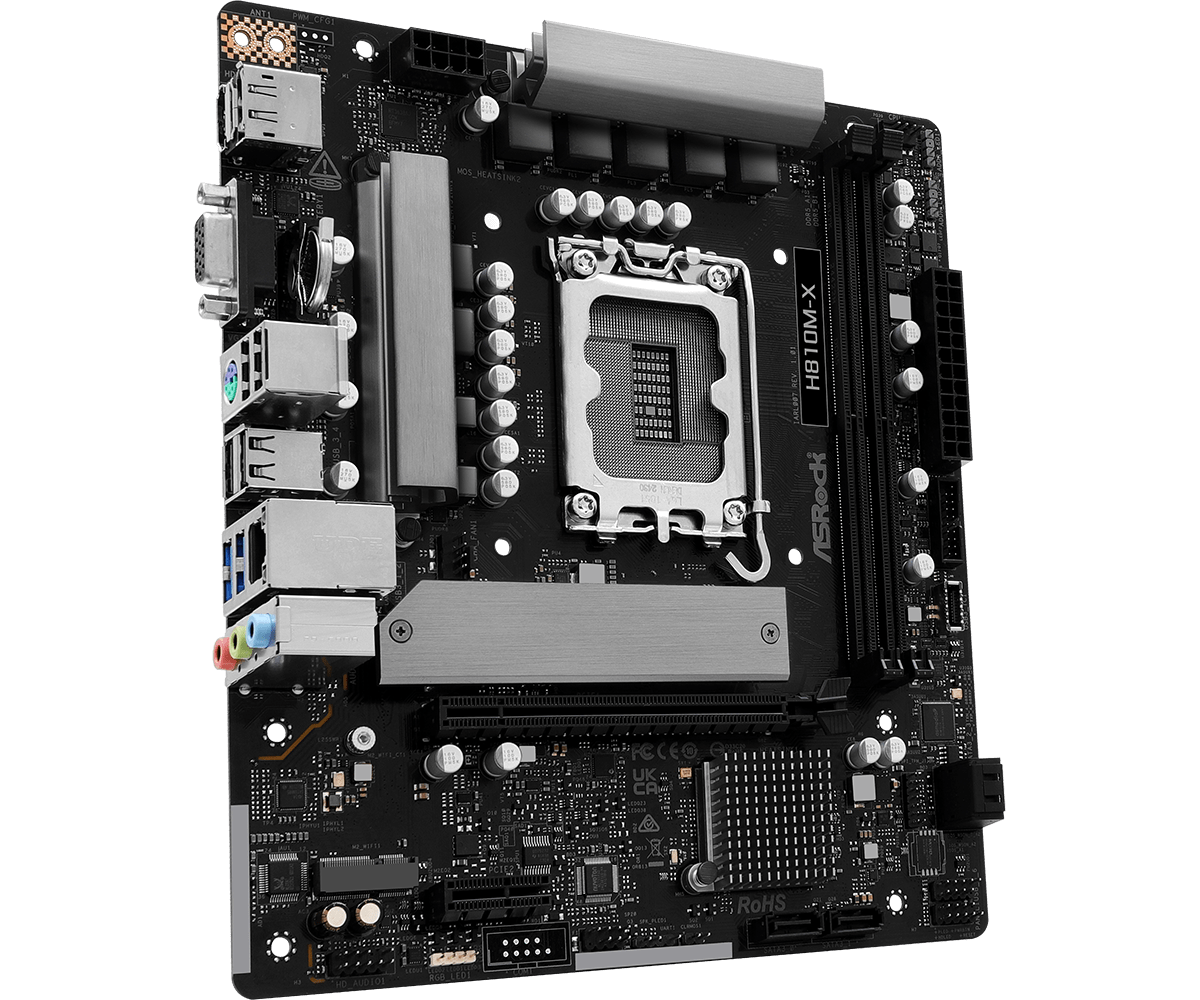

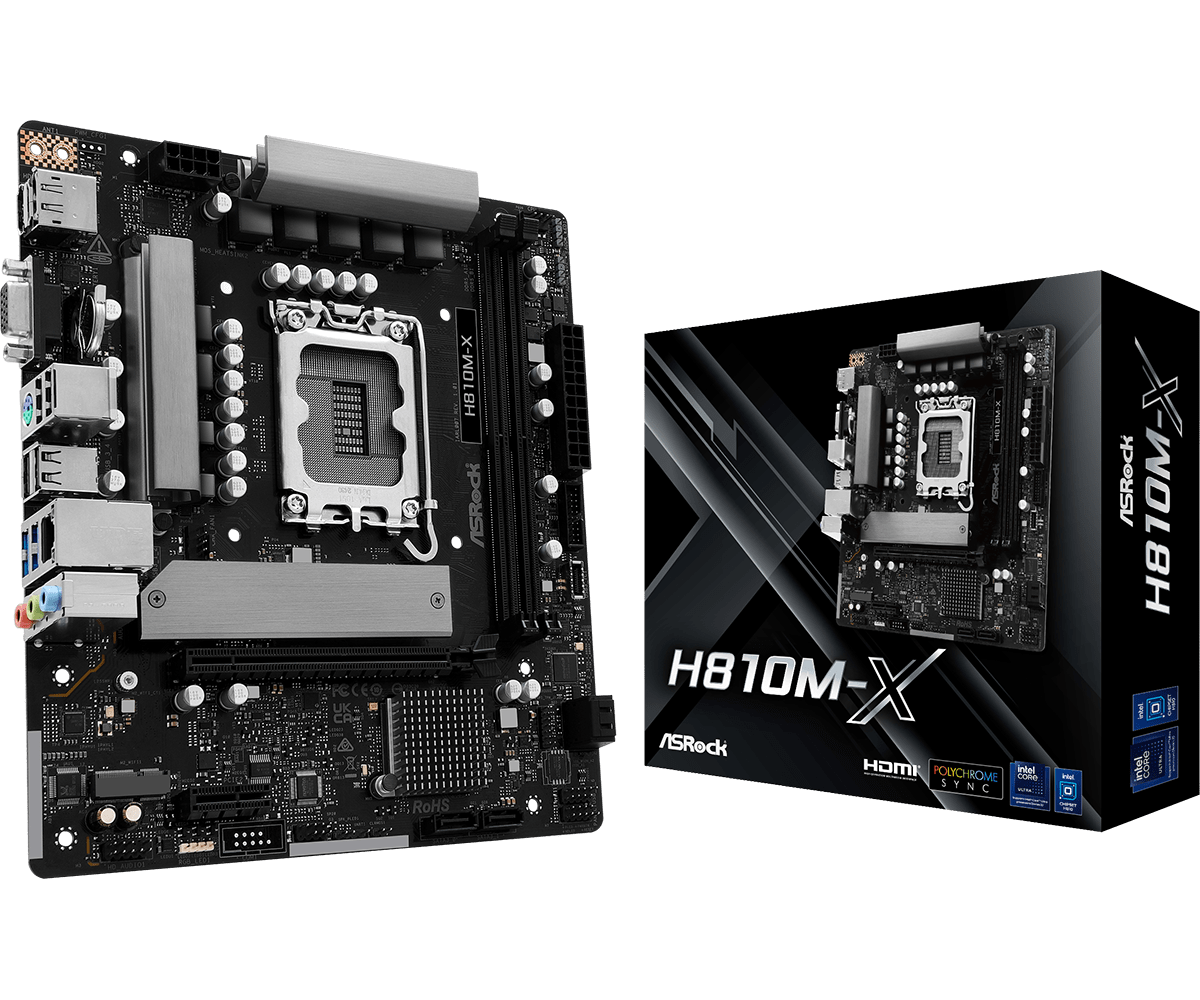

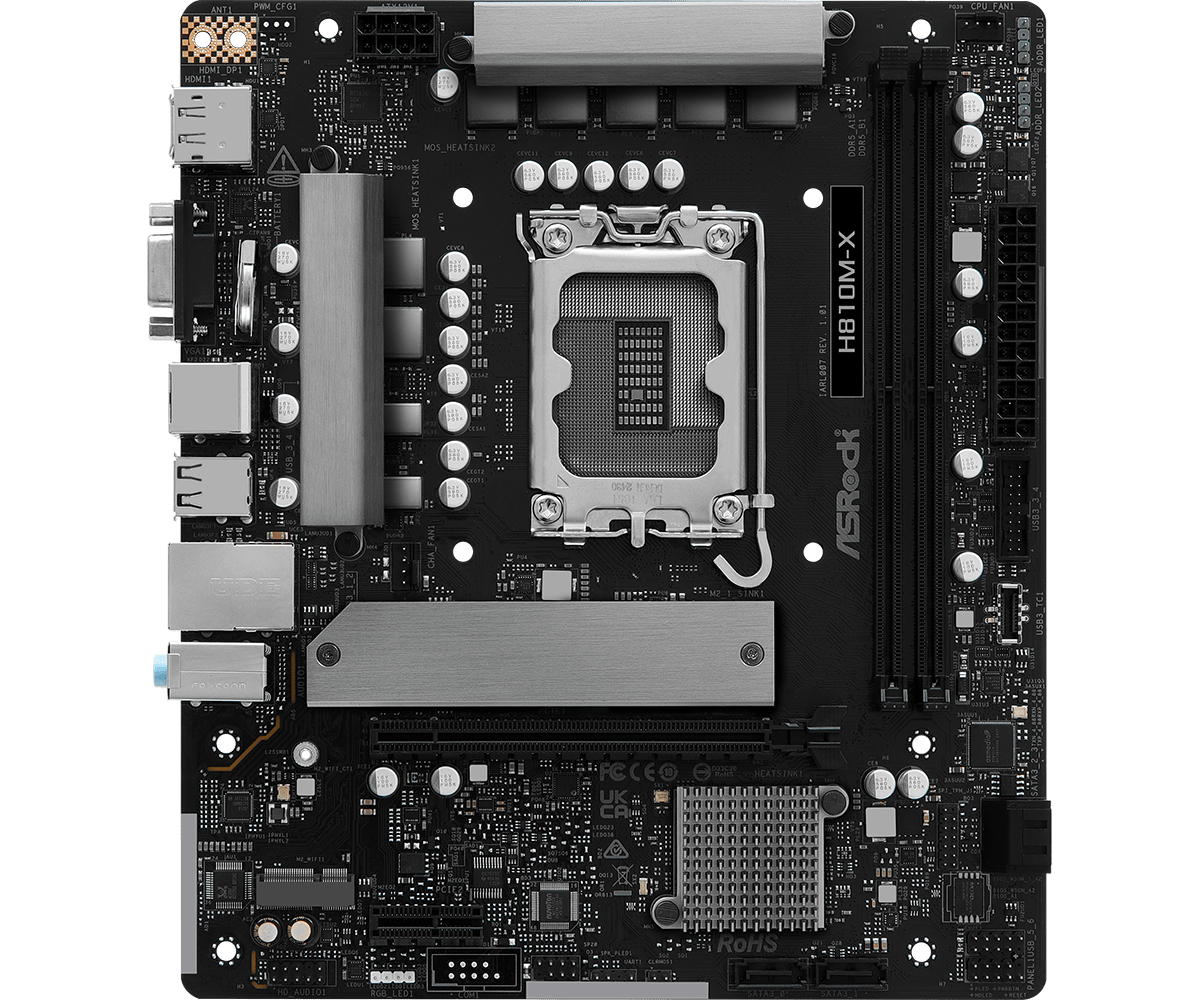

לוח אם – ASRock H810M-X Micro-ATX 2.5GbE Lan LGA1851 DDR5

460.00

לוח אם איכותי מבית ASRock, בעל תושבת LGA1851, ערכת שבבים H810, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort ,VGA.

המלאי אזל

מק״ט 90-MXBS40-A0UAYZ קטגוריה תגיות , , , , , ,

עוד על - לוח אם – ASRock H810M-X Micro-ATX 2.5GbE Lan LGA1851 DDR5

תקופת אחריות

3 שנים על ידי היבואן הרשמי

יצרן לוח אם

ASRock

מבוסס

Intel

תושבת

LGA1851

ערכת שבבים

H810

סוג זיכרון לוח אם

DDR5

גודל

Micro-ATX

תמיכה במעבדים

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration

תמיכה בזיכרונות

Dual Channel DDR5 Memory Technology
2x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB*
Supports Intel® Extreme Memory Profile (XMP) 3.0x*

* Please refer to Memory Support List on ASRock's website for more information*
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

גרפיקה מובנית

Intel® Xe LPG Graphics Architecture
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated*

חריצי הרחבה

:CPU
1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
:Chipset
1x PCIe 4.0 x1 Slot (PCIE2)*
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supports NVMe SSD as boot disks*

USB

:Chipset
1x USB 3.2 Gen1 Type-C (Front)
4x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6x USB 2.0 (4 Rear, 2 Front)

All USB ports support ESD Protection*

ממשק אחסון

:Chipset
1x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
4x SATA3 6.0 Gb/s Connectors

Supports NVMe SSD as boot disks*

שמע

7.1CH HD Audio (Realtek ALC897 Audio Codec)

כרטיס רשת קווי

2.5Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

חיבורים פנימיים

1x SPI TPM Header
1x Power LED and Speaker Header
1x RGB LED Header*
2x Addressable LED Headers**
1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
1x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen1 Header

Supports in total up to 12V/3A, 36W LED Strip*
Support in total up to 5V/3A, 15W LED Strip**
CPU_FAN1 supports the fan power up to 1A (12W)***
CHA_FAN1 supports the fan power up to 3A (36W)****
CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use

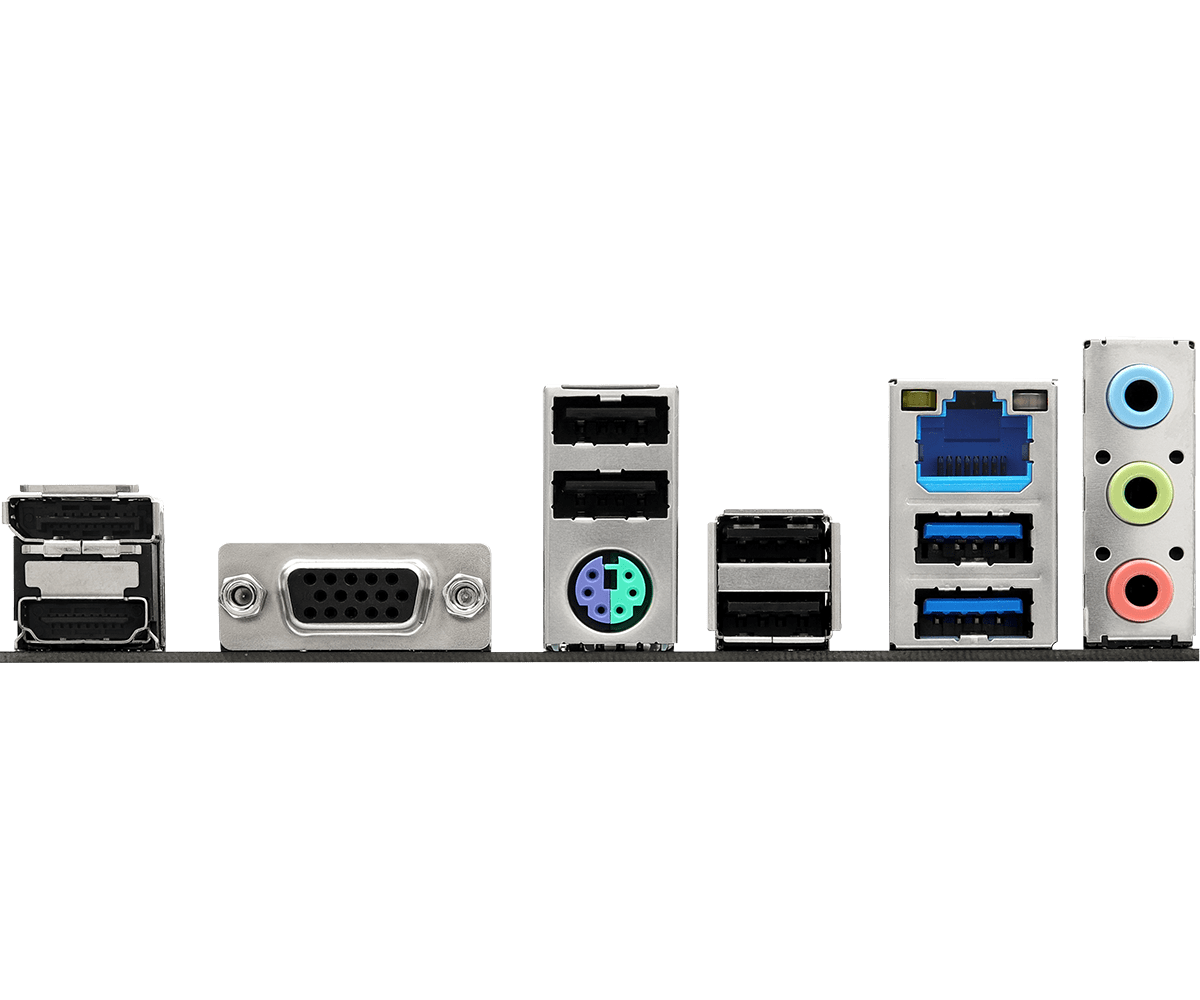

חיבורים ויציאות

2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x D-Sub Port
1x HDMI Port
1x DisplayPort 1.4
2x USB 3.2 Gen1 Ports
4x USB 2.0 Ports
1x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

תכונות ייחודיות

:Superb Productivity
Dual Channel DDR5
:Rock-Solid Durability
6+1+1+1+1 Power Phase
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
:Ultrafast Connectivity
2.5G LAN
:EZ Update
ASRock Auto Driver Installer

תוכנות מצורפות

:Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
:UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

.These utilities can be downloaded from ASRock Live Update & APP Shop*

אביזרים כלולים

1x I/O Shield
2x SATA Data Cables
1x Screw for M.2 Socket

תצורה

Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

קישור לאתר היצרן

https://www.asrock.com/MB/Intel/H810M-X/index.asp#Overview
