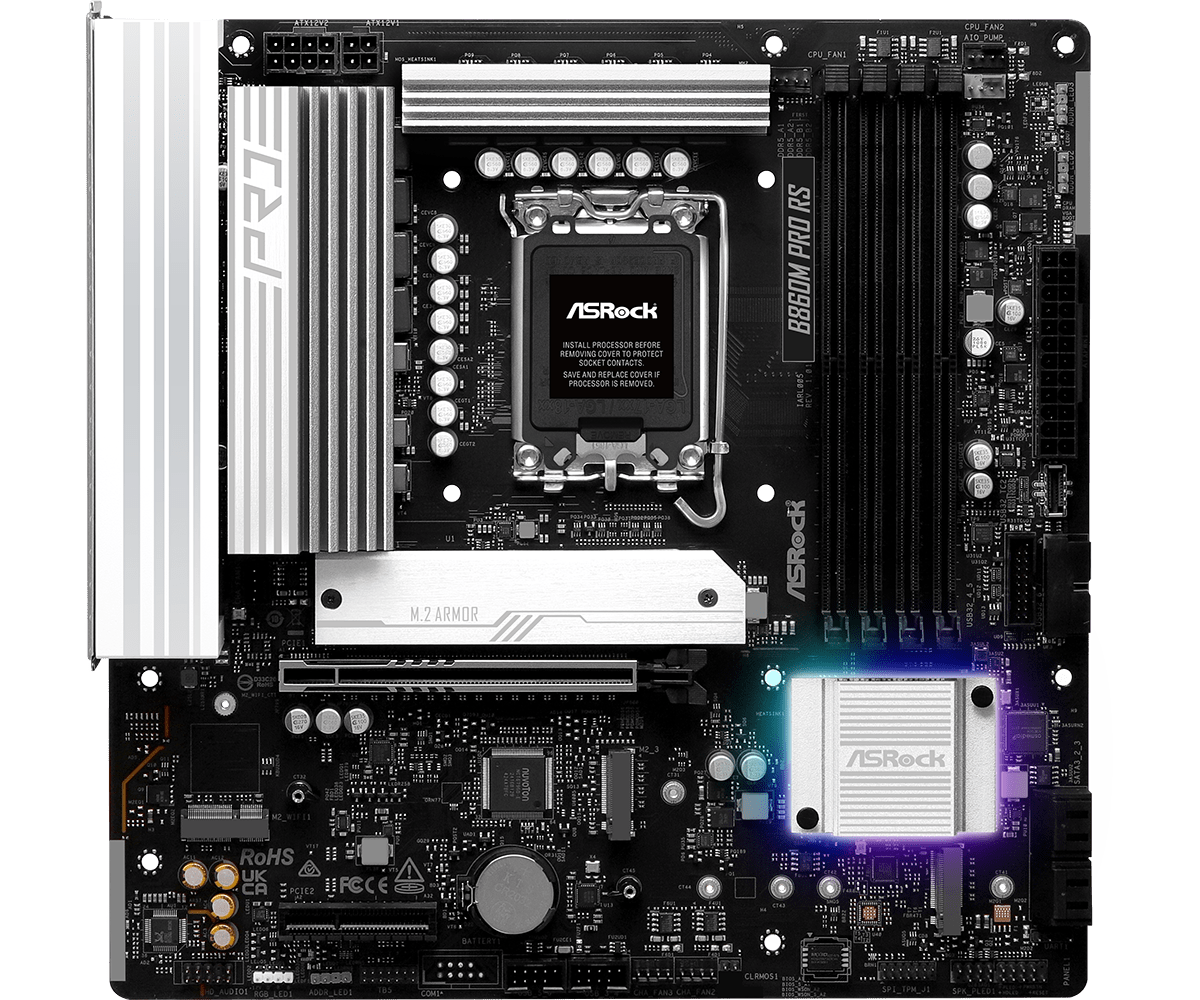

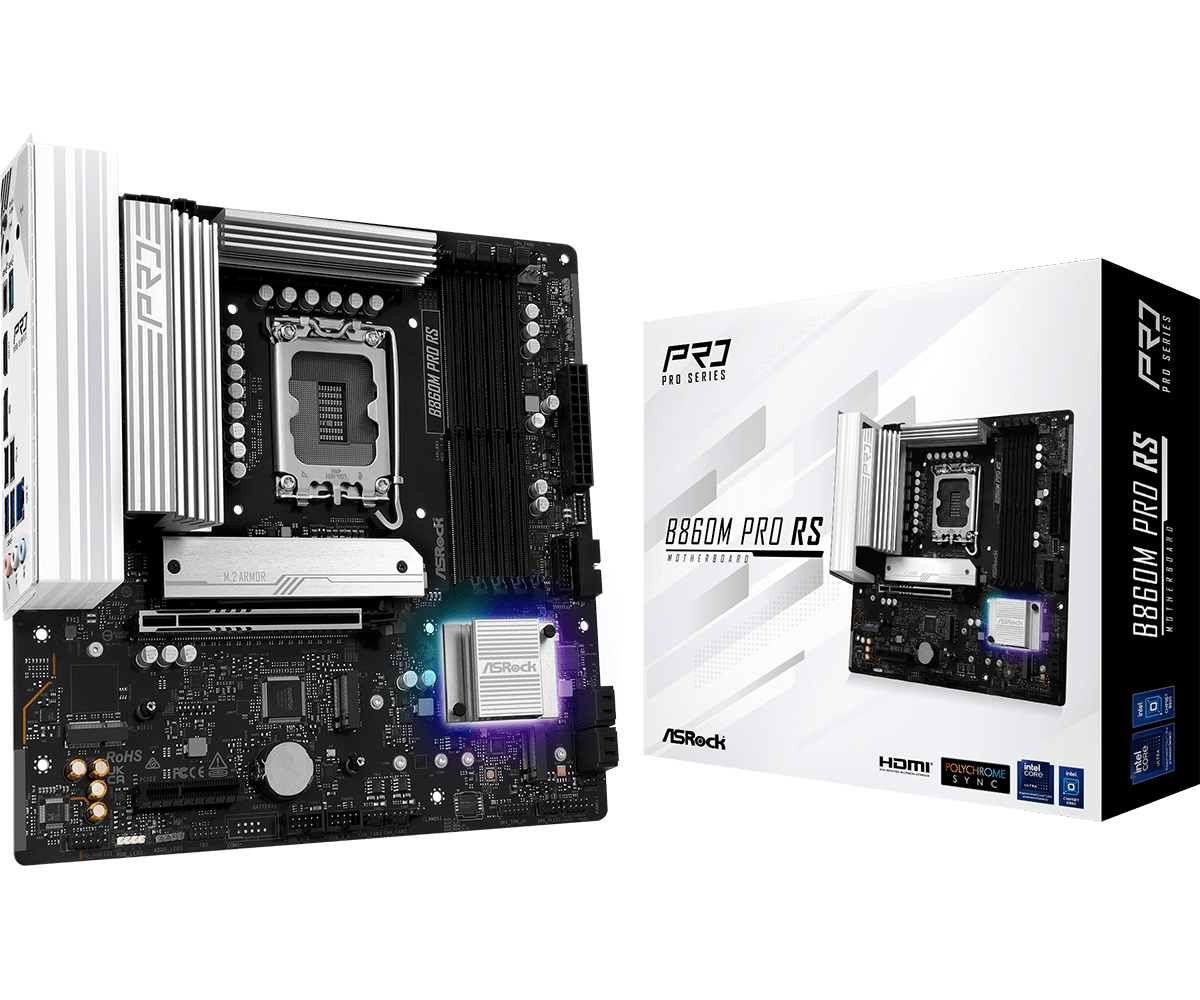

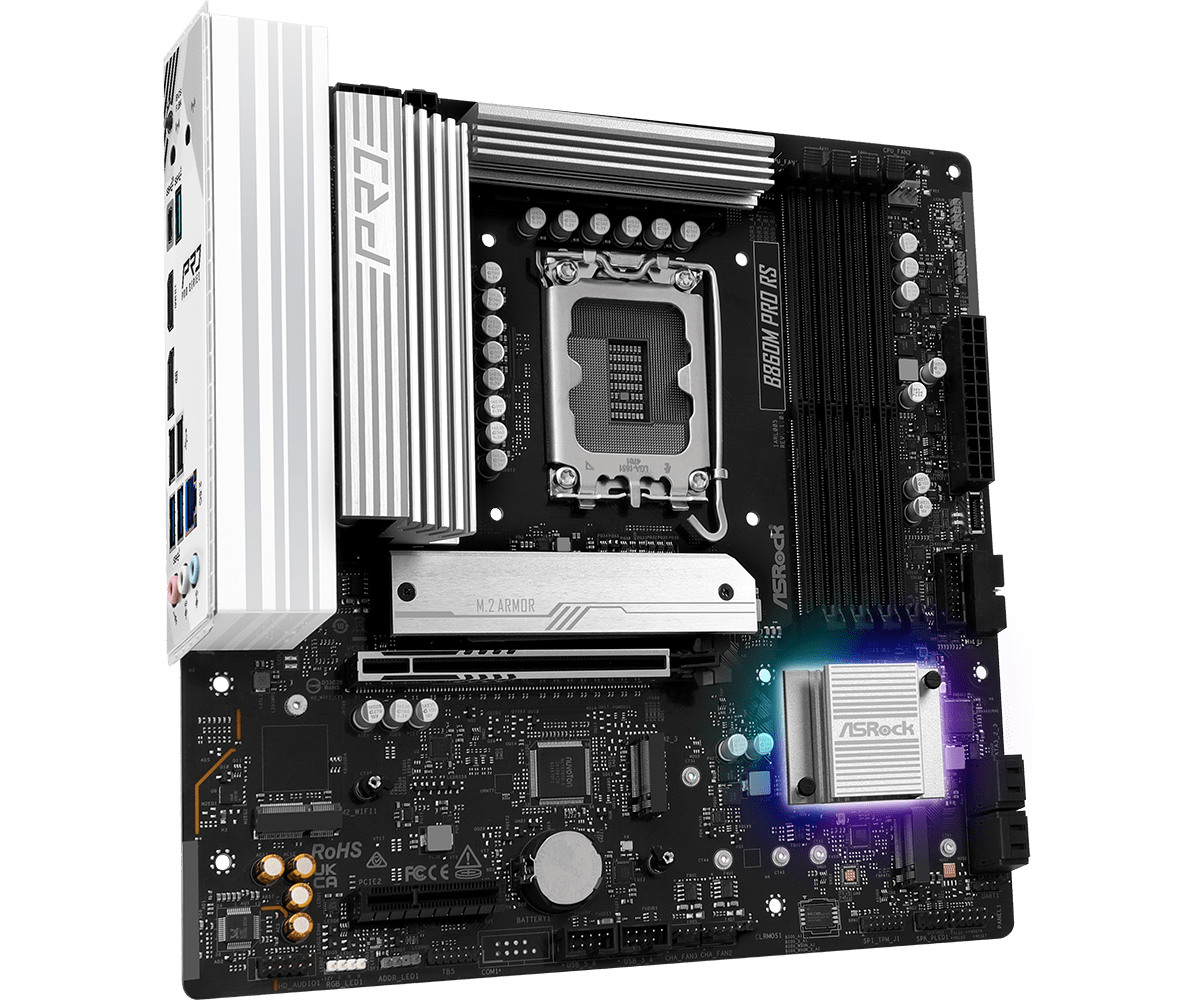

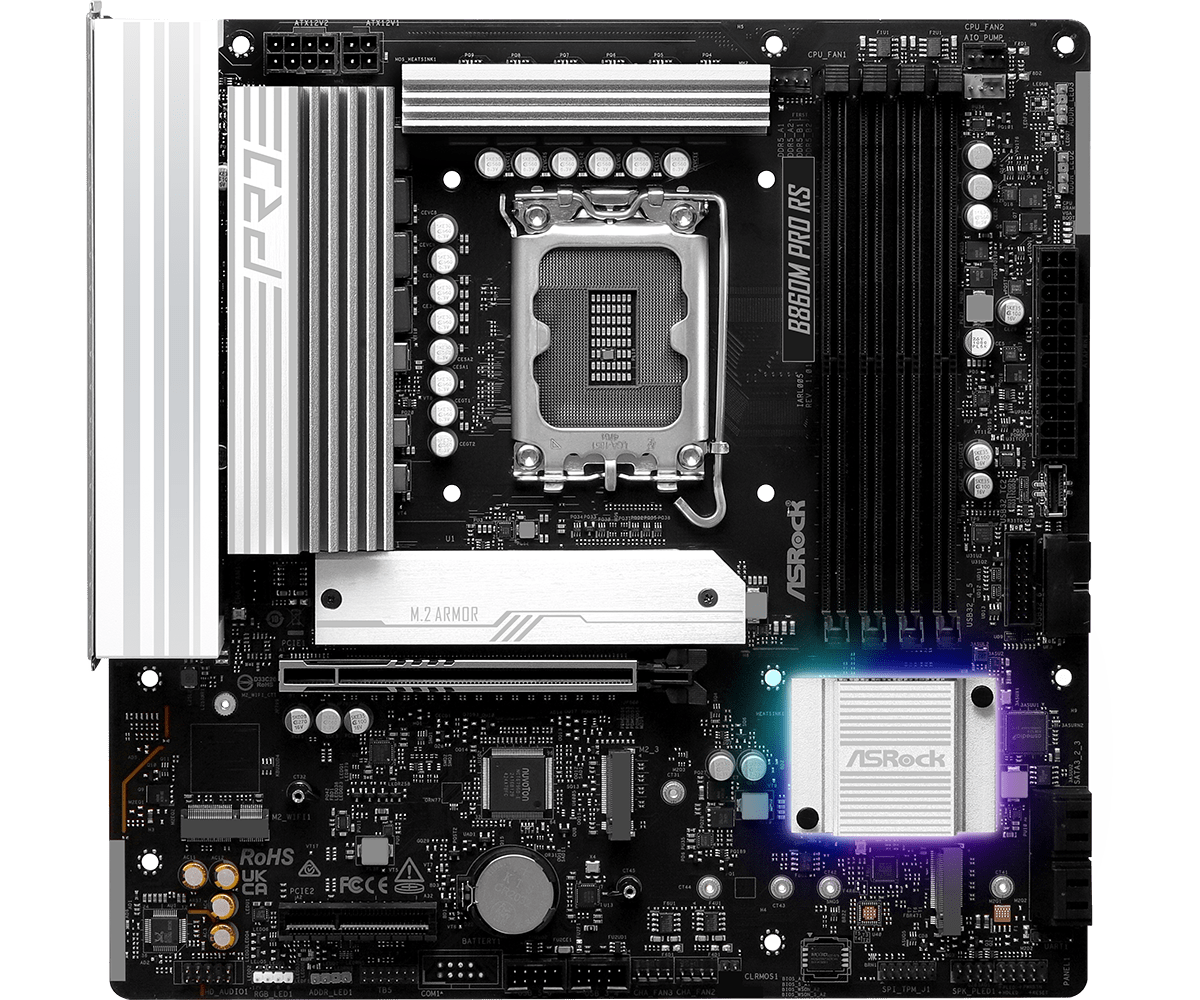

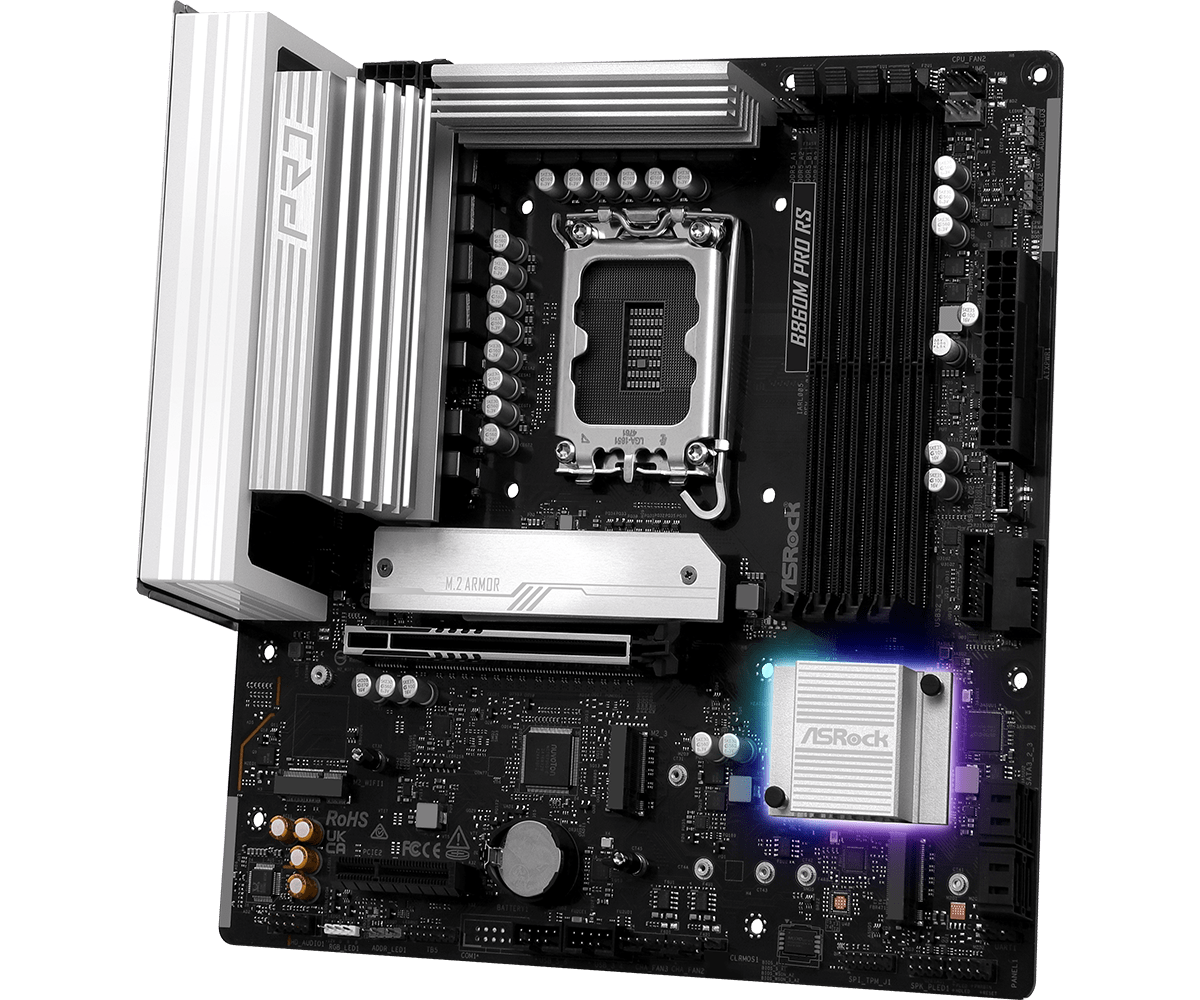

לוח אם – ASRock B860M Pro RS Micro-ATX 2.5GbE Lan LGA1851 DDR5

710.00

לוח אם איכותי מבית ASRock, בעל תושבת LGA1851, ערכת שבבים B860, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.

המלאי אזל

מק״ט 90-MXBRP0-A0UAYZ קטגוריה תגיות , , , , , ,

עוד על - לוח אם – ASRock B860M Pro RS Micro-ATX 2.5GbE Lan LGA1851 DDR5

תקופת אחריות

3 שנים על ידי היבואן הרשמי

יצרן לוח אם

ASRock

מבוסס

Intel

תושבת

LGA1851

ערכת שבבים

B860

סוג זיכרון לוח אם

DDR5

גודל

Micro-ATX

NVMe PCIe M.2 Connector

3

תמיכה במעבדים

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration

תמיכה בזיכרונות

Dual Channel DDR5 Memory Technology
4x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively

גרפיקה מובנית

Intel® Xe LPG Graphics Architecture
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

.Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated*

חריצי הרחבה

:CPU
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
:Chipset
1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Supports NVMe SSD as boot disks*

USB

:CPU
1x USB 3.2 Gen2x2 Type-C (Rear)
:Chipset
1x USB 3.2 Gen1 Type-C (Front)
7x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
6x USB 2.0 (2 Rear, 4 Front)

All USB ports support ESD Protection*

ממשק אחסון

:CPU
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
:Chipset
1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
4x SATA3 6.0 Gb/s Connectors

Supports Intel® Volume Management Device (VMD)*
Supports NVMe SSD as boot disks

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

שמע

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

כרטיס רשת קווי

2.5Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

חיבורים פנימיים

1x SPI TPM Header
1x Power LED and Speaker Header
1x RGB LED Header*
3x Addressable LED Headers**
2x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
3x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector (Hi-Density Power Connector)
1x 4 pin 12V Power Connector (Hi-Density Power Connector)
1x Front Panel Audio Connector
2x USB 2.0 Headers (Support 4 USB 2.0 ports)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen1 Header

Supports in total up to 12V/3A, 36W LED Strip*
Support in total up to 5V/3A, 15W LED Strip**
CPU_FAN1 supports the fan power up to 1A (12W)***
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W)
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use

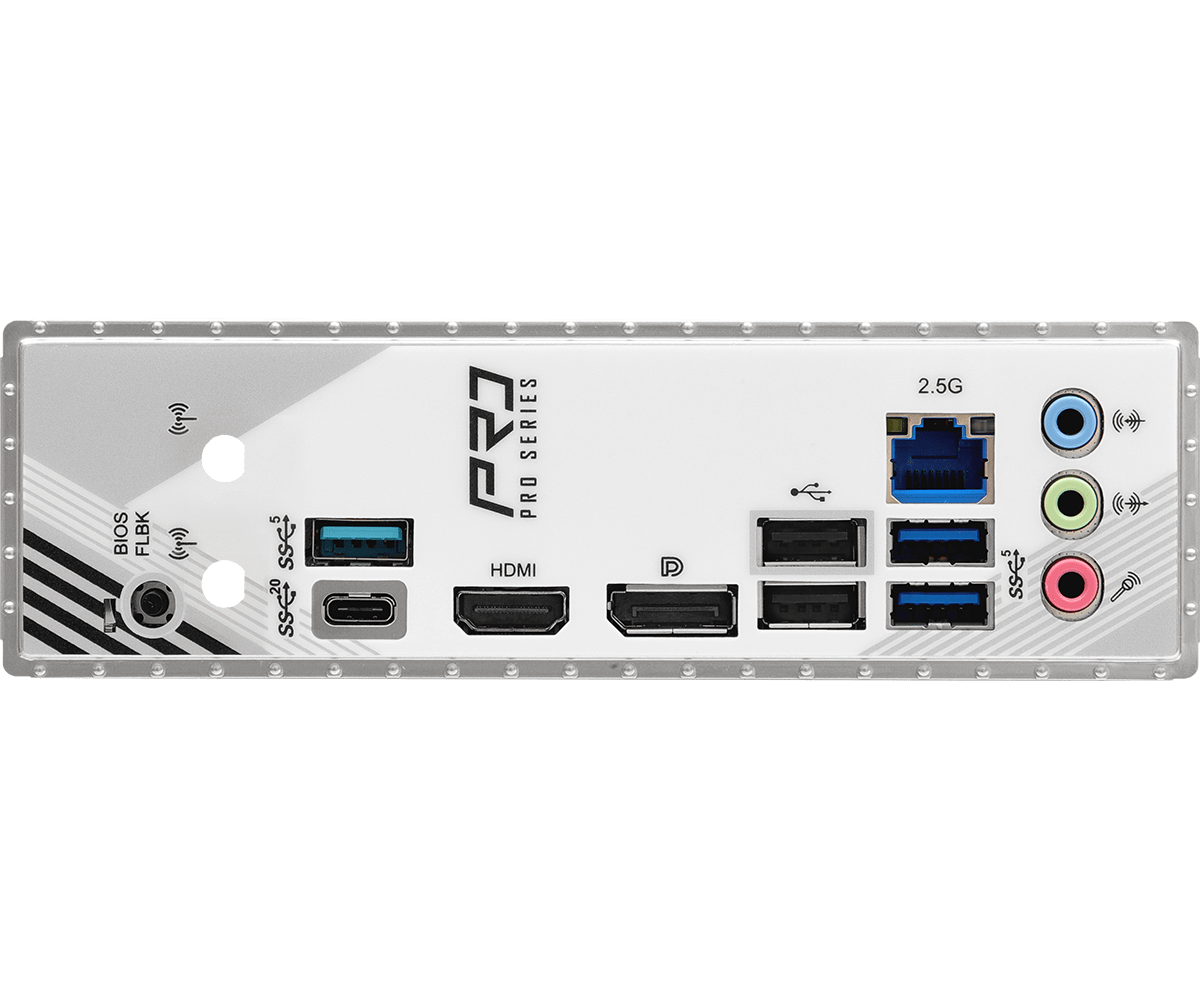

חיבורים ויציאות

2x Antenna Mounting Points
1x HDMI Port
1x DisplayPort 1.4
1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
3x USB 3.2 Gen1 Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port
1x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

תכונות ייחודיות

:Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
:Rock-Solid Durability
10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
Pre-Installed I/O Shield
:Ultrafast Connectivity
2.5G LAN
:EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
:EZ Troubleshooter
ASRock Post Status Checker

תוכנות מצורפות

:Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
:UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

.These utilities can be downloaded from ASRock Live Update & APP Shop*

אביזרים כלולים

2x SATA Data Cables
1x Screw for M.2 Socket

תצורה

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

קישור לאתר היצרן

https://www.asrock.com/MB/Intel/B860MProRS/index.asp#Overview
