| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | ASRock |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1851 |
|---|
| ערכת שבבים | B860 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | Micro-ATX |
|---|
| NVMe PCIe M.2 Connector | 2 |
|---|
| תמיכה במעבדים | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration |
|---|
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology
2x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x .1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6200+ MHz (OC), 6400 MHz Natively* |
|---|
| גרפיקה מובנית | Intel® Xe LPG Graphics Architecture
2x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz .Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated* |
|---|
| חריצי הרחבה | :CPU
1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
:Chipset
2x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks* |
|---|
| USB | :CPU
1x USB 3.2 Gen2x2 Type-C (Rear)
:Chipset
1x USB 3.2 Gen1 Type-C (Front)
5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection* |
|---|
| ממשק אחסון | :CPU
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
:Chipset
1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
4x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD)*
Supports NVMe SSD as boot disks Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* |
|---|
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
|---|
| כרטיס רשת קווי | Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H |
|---|
| חיבורים פנימיים | 1x SPI TPM Header
1x Power LED and Speaker Header
1x RGB LED Header*
3x Addressable LED Headers**
1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
2x USB 2.0 Headers (Support 4 USB 2.0 ports)
1x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip*
Support in total up to 5V/3A, 15W LED Strip**
CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W)***
CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use |
|---|

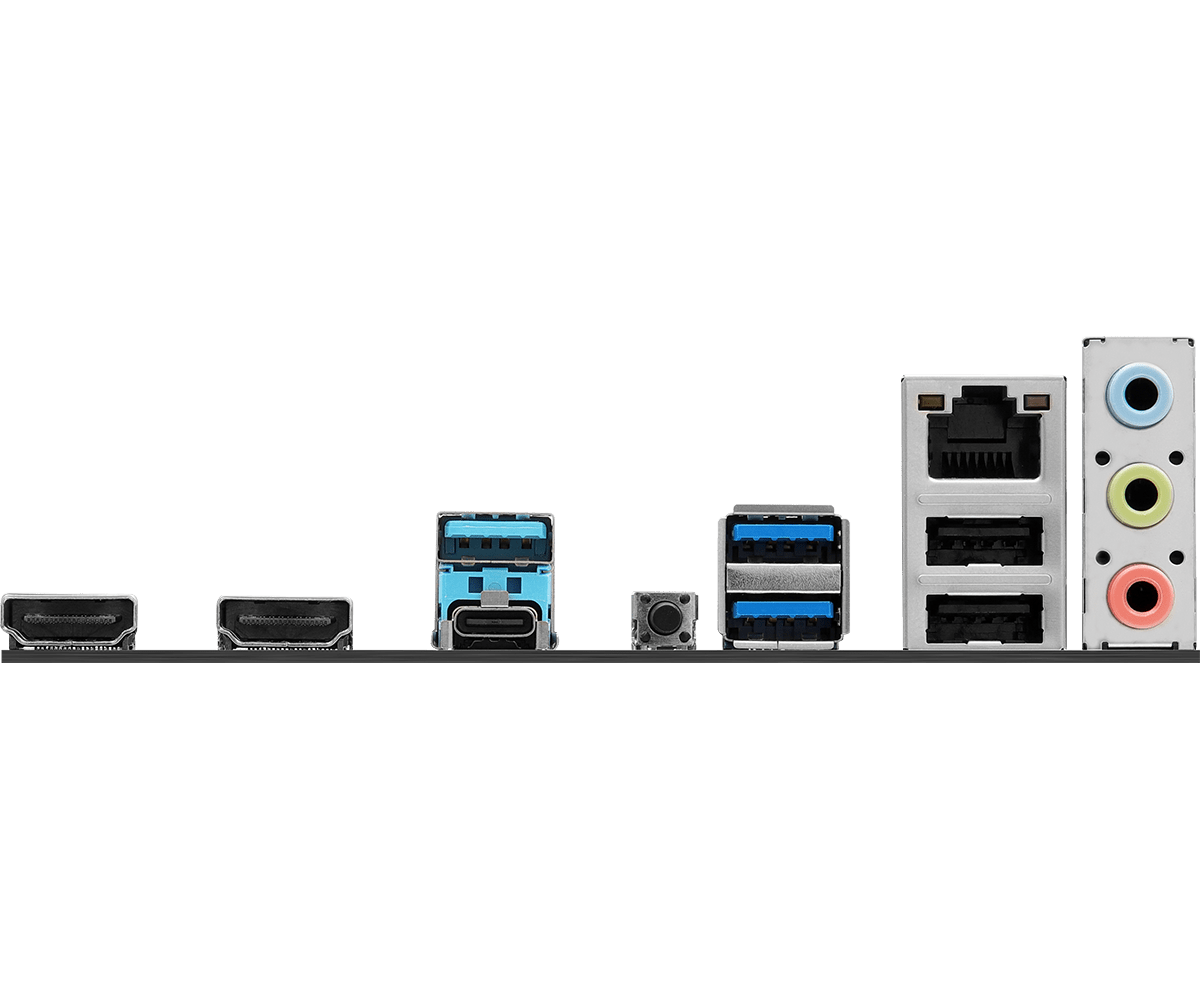

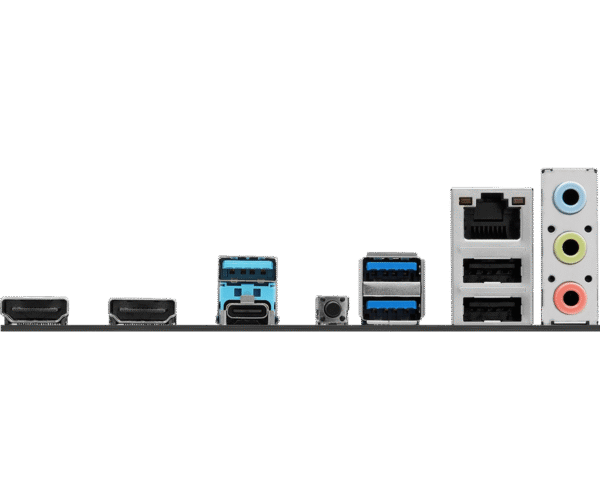

| חיבורים ויציאות | 2x Antenna Mounting Points
2x HDMI Ports
1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
3x USB 3.2 Gen1 Type-A Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port
1x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
|---|
| תכונות ייחודיות | :Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
:Rock-Solid Durability
5+1+1+1+1 Power Phase
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
:EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer |
|---|
| תוכנות מצורפות | :Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC*
:UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash .These utilities can be downloaded from ASRock Live Update & APP Shop* |
|---|
| אביזרים כלולים | 1x I/O Shield
2x SATA Data Cables
1x Screw for M.2 Socket |
|---|
| תצורה | Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm |
|---|
| קישור לאתר היצרן | https://www.asrock.com/MB/Intel/B860M-H2/index.asp#Overview |
|---|
| Ram Memory | DDR5 |
|---|
| Socket | LGA1851 |
|---|
