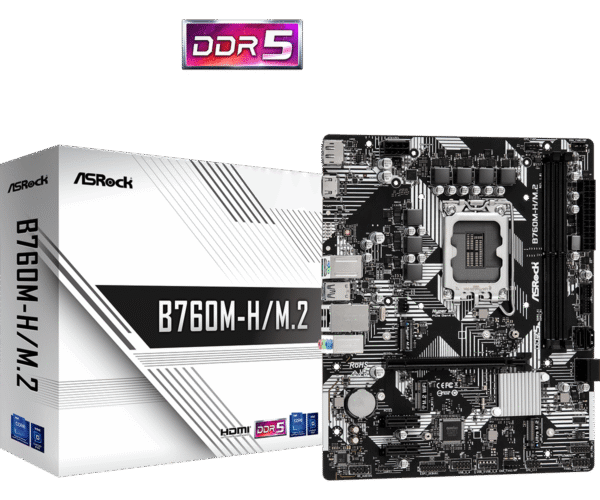

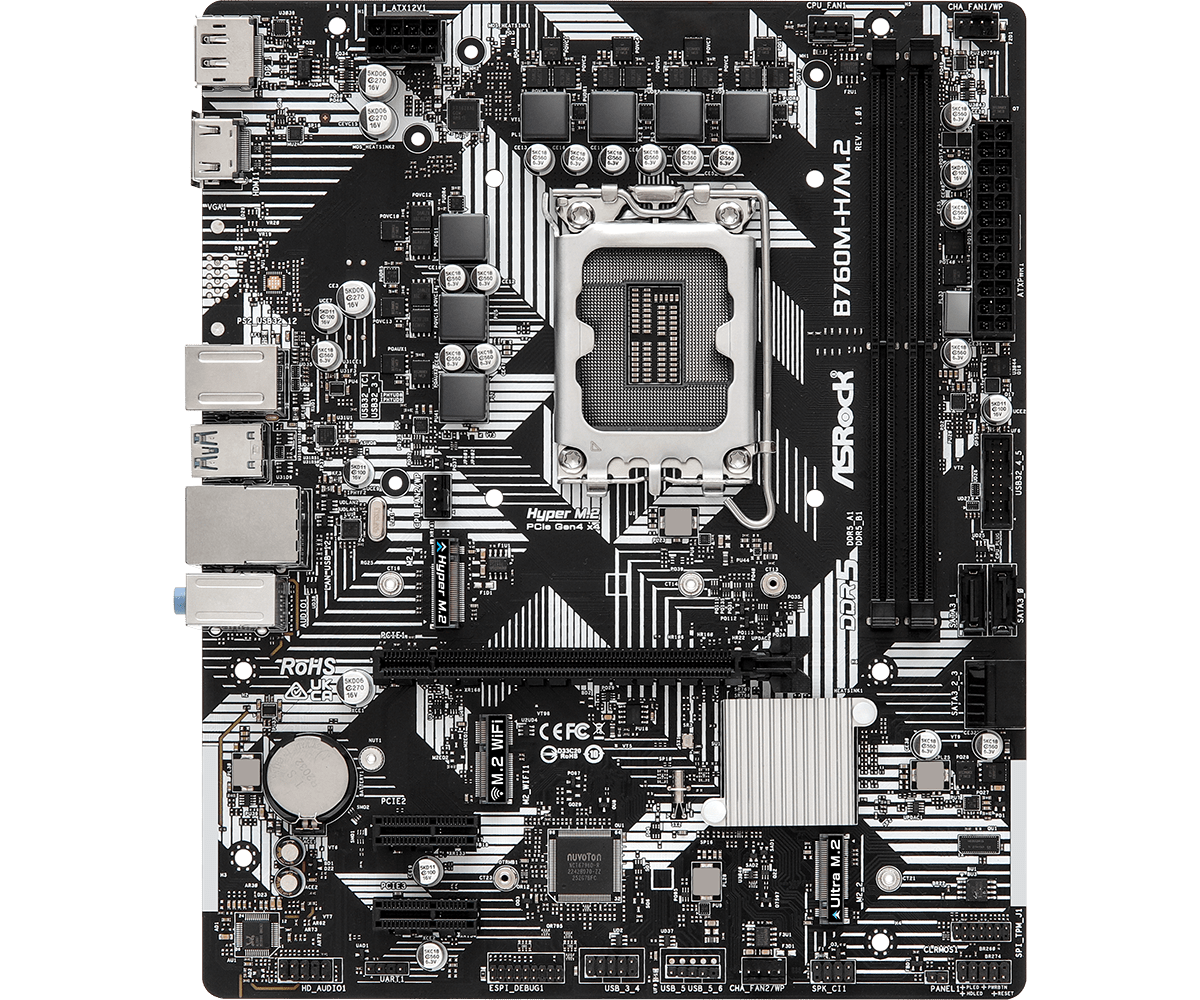

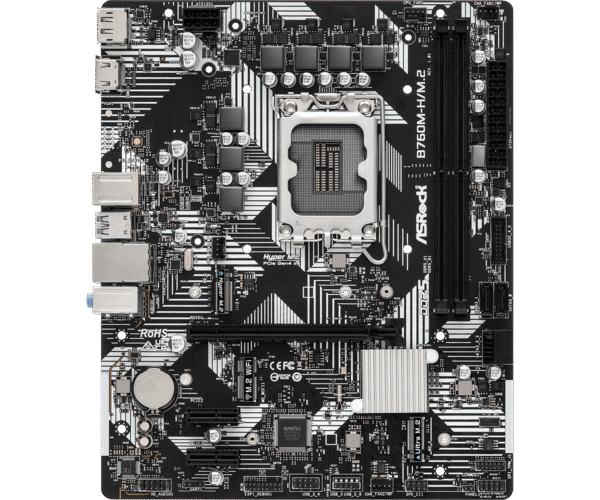

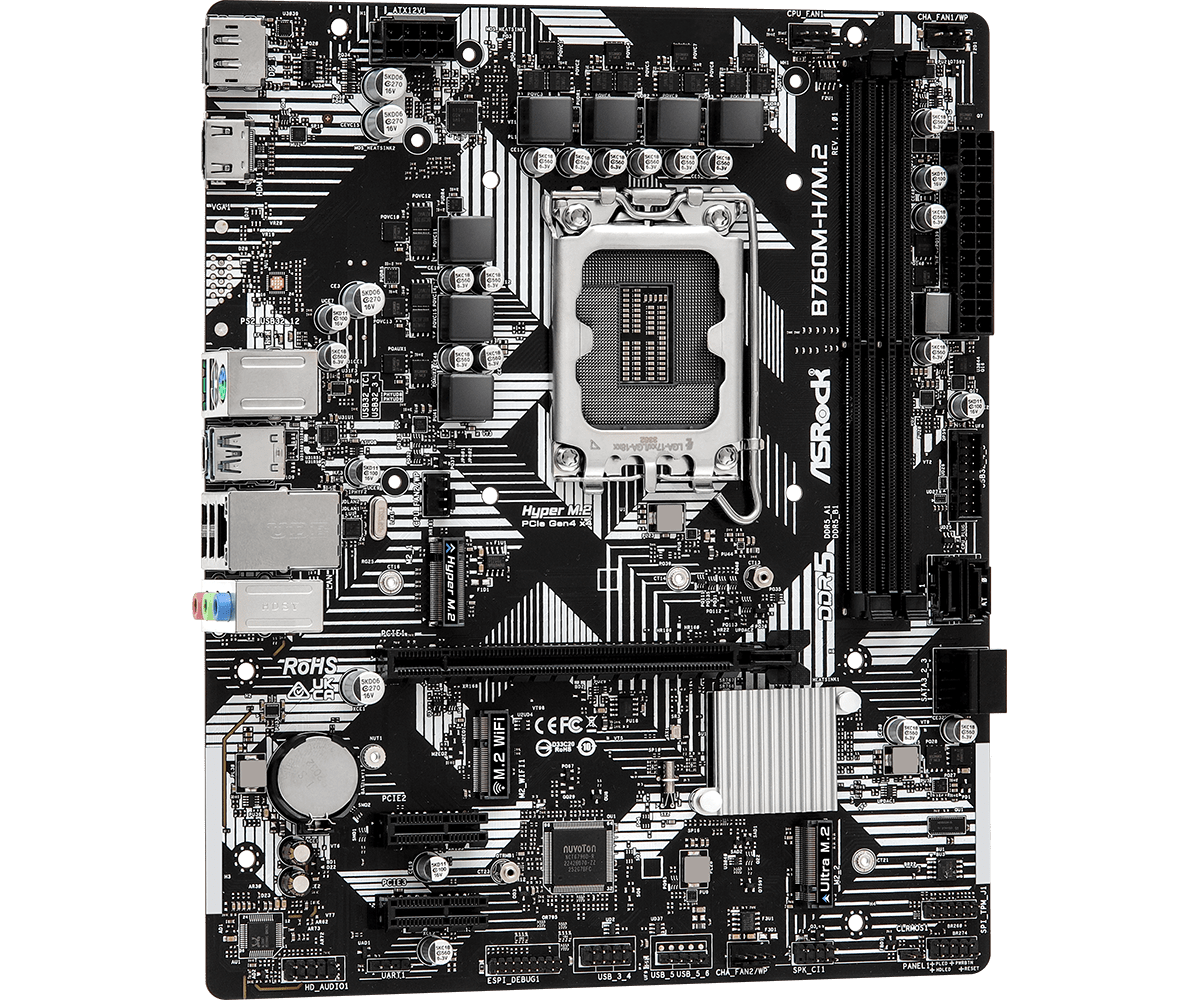

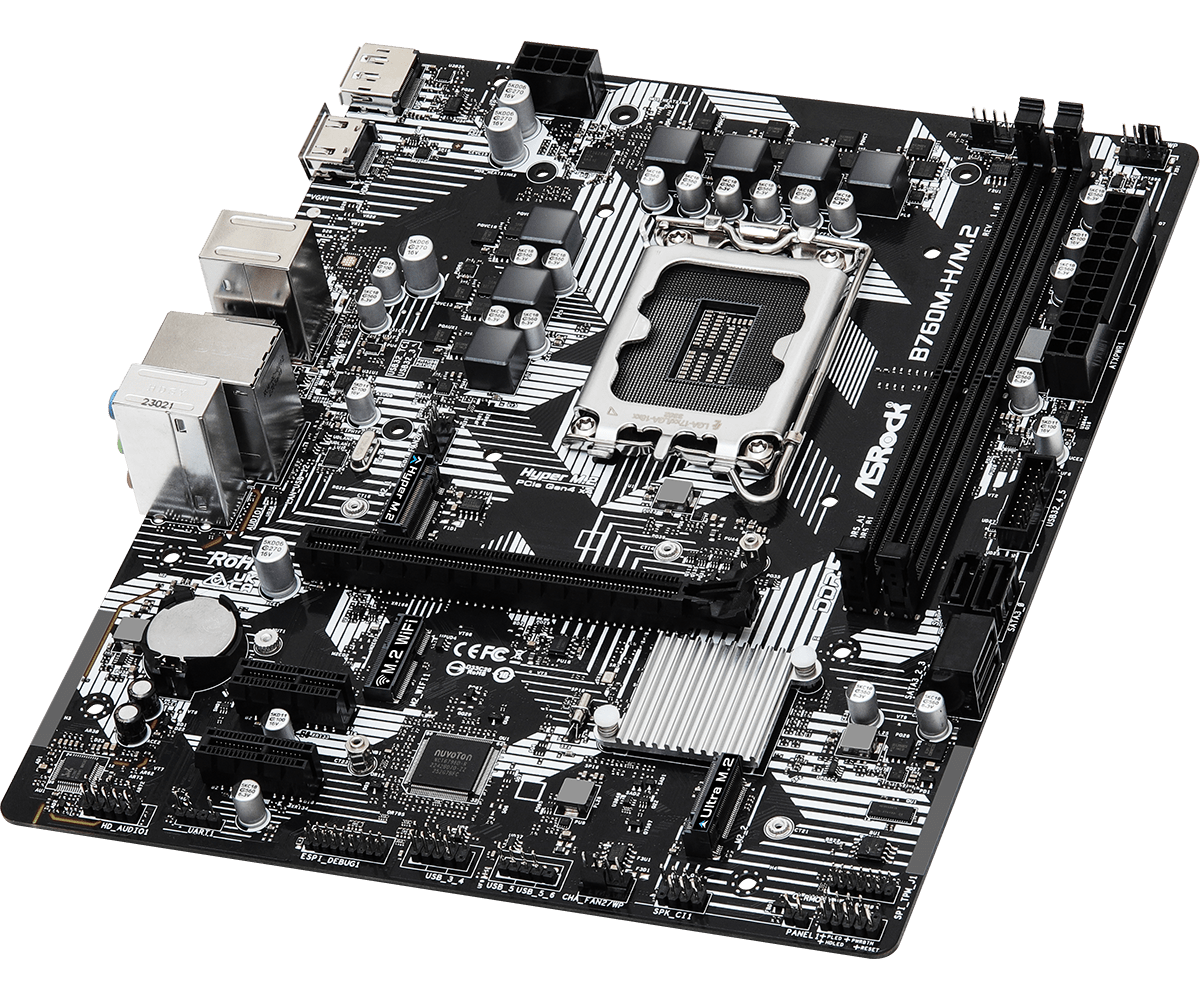

ASRock B760M-HM.2 Micro-ATX LGA1700 DDR5

לוח אם – ASRock B760M-H/M.2 Micro-ATX LGA1700 DDR5

609.00 ₪

לוח אם איכותי מבית ASRock, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.

המלאי אזל

מק״ט 90-MXBM40-A0UAYZ קטגוריה לוחות אם תגיות 1700, Asrock, B760, DDR5, Intel, Micro-ATX, שחור

עוד על - לוח אם – ASRock B760M-H/M.2 Micro-ATX LGA1700 DDR5

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	ASRock
מבוסס	Intel
תושבת	LGA1700
ערכת שבבים	B760
סוג זיכרון לוח אם	DDR5
גודל	Micro-ATX
NVMe PCIe M.2 Connector	2
תמיכה במעבדים	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
תמיכה בזיכרונות	Dual Channel DDR5 Memory Technology 2x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively 1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively
גרפיקה מובנית	Intel® Xe Graphics Architecture (Gen 12) 1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz .Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated*
חריצי הרחבה	:CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks*
USB	1x USB 3.2 Gen1 Type-C (Rear) 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5x USB 2.0 (2 Rear, 3 Front) All USB ports support ESD Protection*
ממשק אחסון	:CPU 1x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* :Chipset 1x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* 4x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD)* Supports NVMe SSD as boot disks If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
שמע	7.1CH HD Audio (Realtek ALC897 Audio Codec)
כרטיס רשת קווי	Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
חיבורים פנימיים	1x SPI TPM Header 1x Chassis Intrusion and Speaker Header 1x CPU Fan Connector (4-pin)* 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 2x USB 2.0 Headers (Support 3 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) CPU_FAN1 supports the fan power up to 1A (12W)* CPU_FAN2/WP supports the fan power up to 2A (24W) CHA_FAN1~2/WP support the fan power up to 2A (24W)* CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use

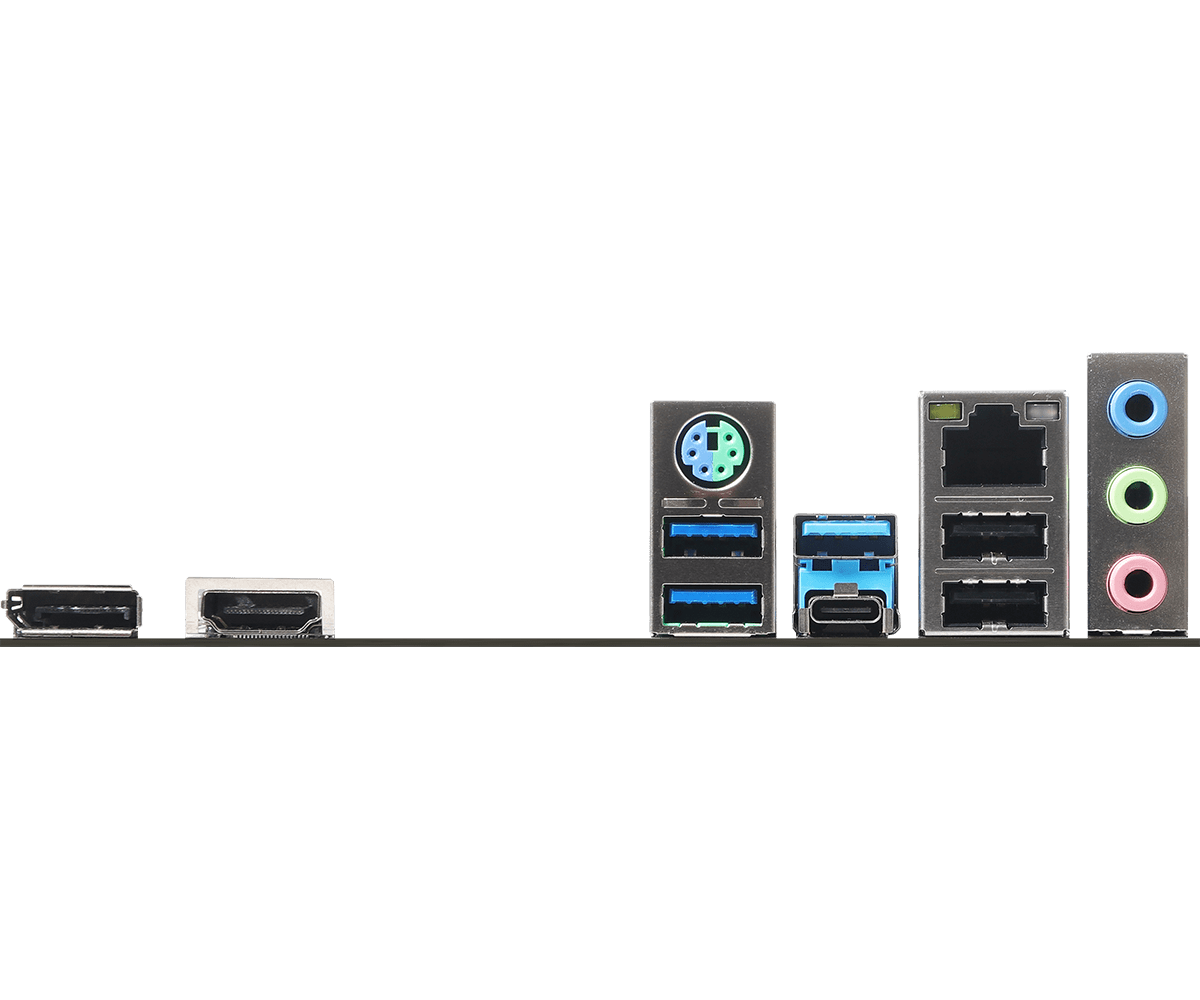

חיבורים ויציאות	2x Antenna Mounting Points 1x PS/2 Mouse/Keyboard Port 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen1 Type-C Port 3x USB 3.2 Gen1 Type-A Ports 2x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
תכונות ייחודיות	:Rock-Solid Durability 5+1+1 Power Phase ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology :EZ Update ASRock Auto Driver Installer
תוכנות מצורפות	:Software ASRock Motherboard Utility (A-Tuning) :UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer .These utilities can be downloaded from ASRock Live Update & APP Shop*
אביזרים כלולים	1x User Manual 1x I/O Shield 2x SATA Data Cables 3x Screws for M.2 Sockets
תצורה	Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
קישור לאתר היצרן	https://www.asrock.com/MB/Intel/B760M-HM.2/index.asp
