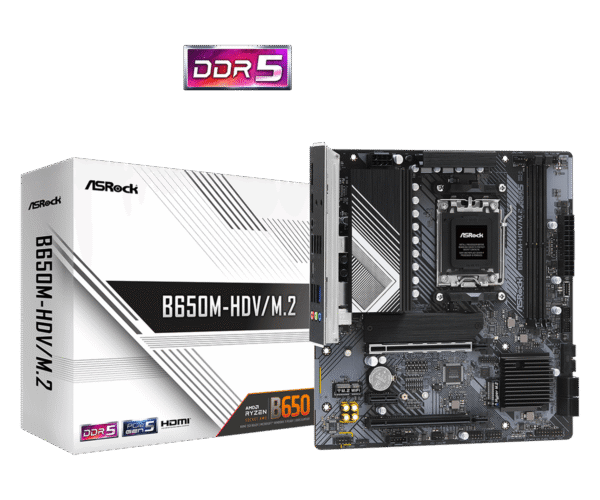

לוח אם – ASRock B650M-HDV/M.2 Micro-ATX 2.5GbE Lan AM5 DDR5

490.00

לוח אם איכותי מבית ASRock, בעל תושבת AM5, ערכת שבבים B650, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.

המלאי אזל

מק״ט 90-MXBS60-A0UAYZ קטגוריה תגיות , , , , , ,

עוד על - לוח אם – ASRock B650M-HDV/M.2 Micro-ATX 2.5GbE Lan AM5 DDR5

תקופת אחריות

3 שנים על ידי היבואן הרשמי

יצרן לוח אם

ASRock

מבוסס

AMD

תושבת

AM5

ערכת שבבים

B650

סוג זיכרון לוח אם

DDR5

גודל

Micro-ATX

NVMe PCIe M.2 Connector

2

תמיכה במעבדים

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

.The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details*

תמיכה בזיכרונות

Dual Channel DDR5 Memory Technology
2x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

.Please refer to Memory Support List for more information*

גרפיקה מובנית

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

חריצי הרחבה

:CPU
1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
1x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
:Chipset
1x PCIe 4.0 x1 Slot (PCIE2)*
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supports AMD CrossFire™
15μ Gold Contact in VGA PCIe Slot (PCIE1)

Supports NVMe SSD as boot disks*

USB

1x USB 3.2 Gen2 Type-C (Front)
1x USB 3.2 Gen1 Type-C (Rear)
6x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
8x USB 2.0 (4 Rear, 4 Front)

All USB ports support ESD Protection*

ממשק אחסון

:CPU
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
:Chipset
1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
4x SATA3 6.0 Gb/s Connectors

Supports NVMe SSD as boot disks*

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

Requires additional M.2 NVMe expansion cards to support RAID 10*

שמע

7.1CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

כרטיס רשת קווי

2.5Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

חיבורים פנימיים

1x SPI TPM Header
1x Power LED and Speaker Header
1x CPU Fan Connector (4-pin)*
3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2x USB 2.0 Headers (Support 4 USB 2.0 ports)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen2 Header

CPU_FAN1 supports the fan power up to 1A (12W)*
CHA_FAN1~3/WP support the fan power up to 2A (24W)**
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use

חיבורים ויציאות

2x Antenna Mounting Points
1x HDMI Port
1x DisplayPort 1.4
1x USB 3.2 Gen1 Type-C Port
2x USB 3.2 Gen1 Type-A Ports
4x USB 2.0 Ports
1x RJ-45 LAN Port
1x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

תכונות ייחודיות

:Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
:Rock-Solid Durability
8+2+1 Power Phase, 50A Dr.MOS
Pre-Installed I/O Shield
:Ultrafast Gaming
2.5G LAN EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
:EZ Troubleshooter
ASRock Post Status Checker

תוכנות מצורפות

:Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software*
:UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

.These utilities can be downloaded from ASRock Live Update & APP Shop*

אביזרים כלולים

1x User Manual
2x SATA Data Cables
3x Screws for M.2 Sockets

תצורה

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
2oz Copper PCB

קישור לאתר היצרן

https://www.asrock.com/mb/AMD/B650M-HDVM.2/
