| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
B760
|
| סוג זיכרון לוח אם |
DDR4
|
| גודל לוח אם |
Micro-ATX
|
| NVMe PCIe M.2 Connector |
2
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen
Processors, Intel® Core™ 12th Gen, Pentium® Gold and
Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
Intel® 14th & 13th & 12th Gen Processors
1x PCIe 5.0 x16 slot
Intel® B760 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
x PCIe 4.0 x1slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 8 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (4 x Type-A)
1x USB 3.2 Gen 1 port (1 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C®)*
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports*
USB_E4 and USB_EC3 can only be enabled/disabled simultaneously*
|
| ממשק אחסון |
:Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
:Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*
|
| שמע |
:Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback "
:Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications*
|
| חיבורים פנימיים |
:I/O Connectors Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
:Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x AURA RGB header
1x Clear CMOS header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
|

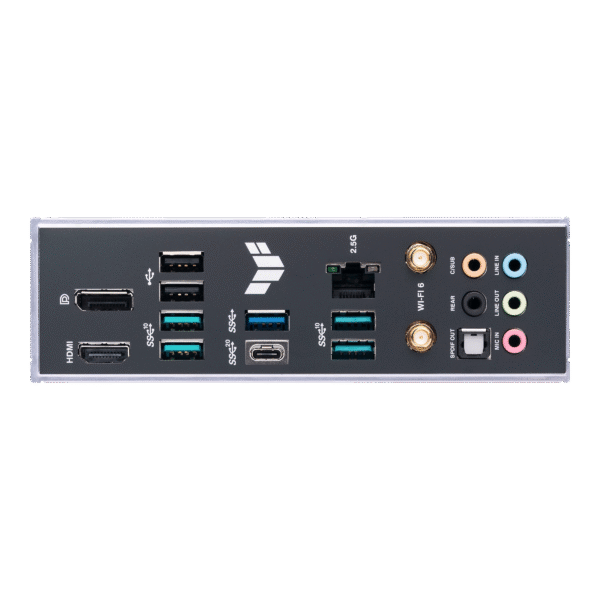

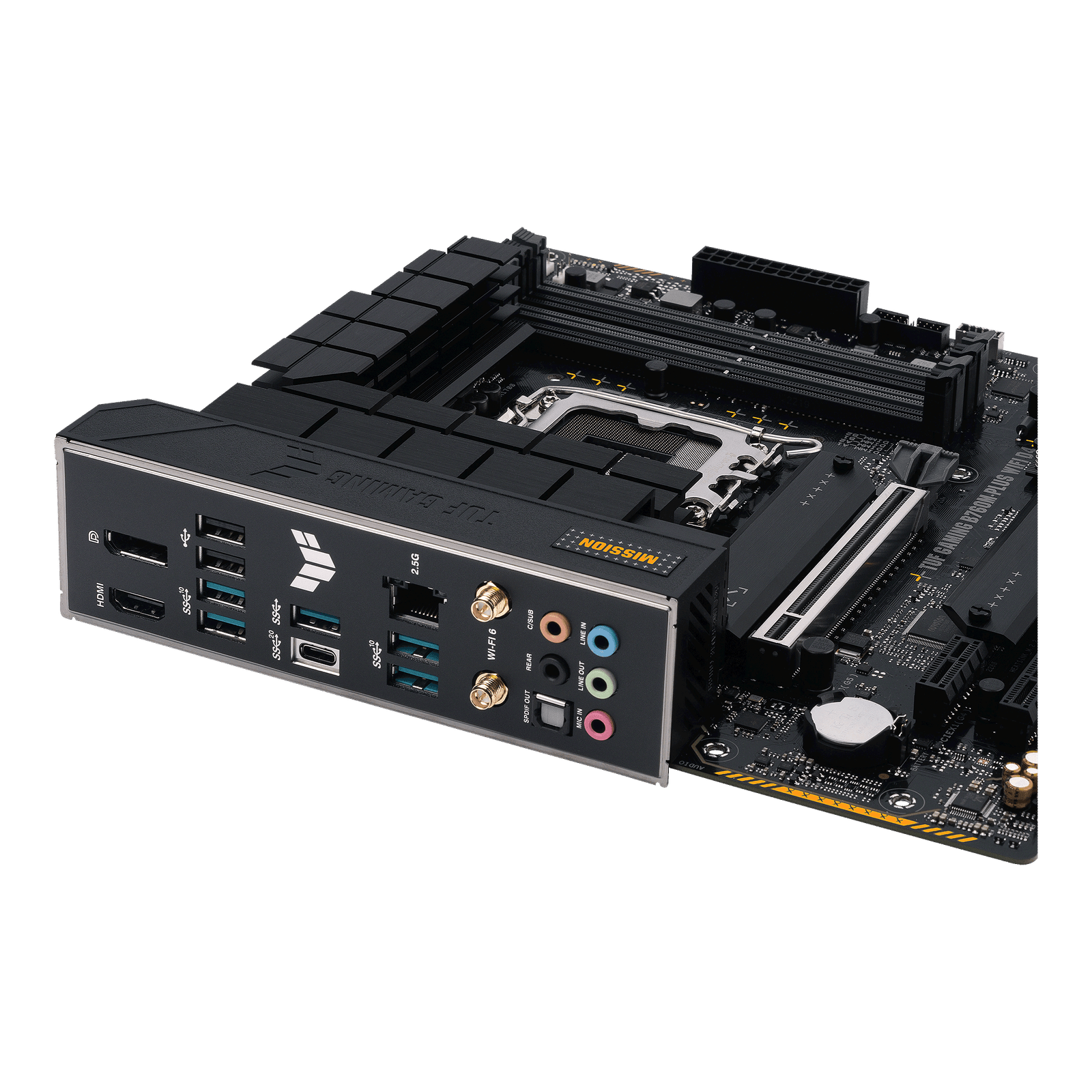

| חיבורים ויציאות |
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (4 x Type-A)
1x USB 3.2 Gen 1 port (1 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port
|
| תכונות מיוחדות |
:ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
:ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
:ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
:ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
:AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
:ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
:UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|
| BIOS |
128Mb Flash ROM, UEFI AMI BIOS
|
| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous
1x ASUS Wi-Fi moving antennas
1x M.2 Rubber Package
1x Screw package for M.2 SSD
1x TUF Gaming sticker
:Documentation
1x TUF Certification card
1x User guide
|
| תצורה |
mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/
|
