לוח אם – Asus TUF Gaming B760M-BTF WIFI D4 DDR4

1,060.00

לוח אם מבית ASUS, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR4, יציאות DP ו- HDMI, קישוריות WiFi ו- Bluetooth.

מק״ט 90MB1E50-M0EAY0 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Asus TUF Gaming B760M-BTF WIFI D4 DDR4

תקופת אחריות

3 שנים

דגם

TUF GAMING B760M-BTF WIFI D4

תמיכת מעבד

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

ערכת שבבים

B760 Chipset

זיכרון RAM

x4 DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

חיבורי גרפיקה

x1 DisplayPort**
x1 HDMI port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

חריצי הרחבה

x1 PCIe 5.0 x16 slot
x1 PCIe 4.0 x16 slot (supports x4 mode)
x1 PCIe 4.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

אחסון

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
x4 SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.

תקשורת

x1 Realtek 2.5Gb Ethernet
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

חיבורים ויציאות

x1 USB 3.2 Gen 2×2 port (1 x USB Type-C®)
x2 USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C®)
x3 USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
x4 USB 2.0 ports (4 x Type-A)
x DisplayPort
x1 HDMITM port
x1 Wi-Fi Module
x1 Realtek 2.5Gb Ethernet port
x3 Audio jacks
x1 Clear CMOS button

חיבורים פנימיים

x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x3 4-pin Chassis Fan headers
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x1 4-pin +12V Power connector
x3 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 3.2 Gen 2 connector (supports USB Type-C® )
x1 USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
x2 USB 2.0 headers support 4 additional USB 2.0 ports
x3 Addressable Gen 2 headers
x1 Aura RGB header
x1 COM Port header
x1 Front Panel Audio header (AAFP)
x1 10-1 pin System Panel header
x1 Thunderbolt™ (USB4®) header

תכונות מיוחדות

DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
M.2 heatsinks
VRM heatsink design
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
Aura RGB header
Addressable Gen 2 headers

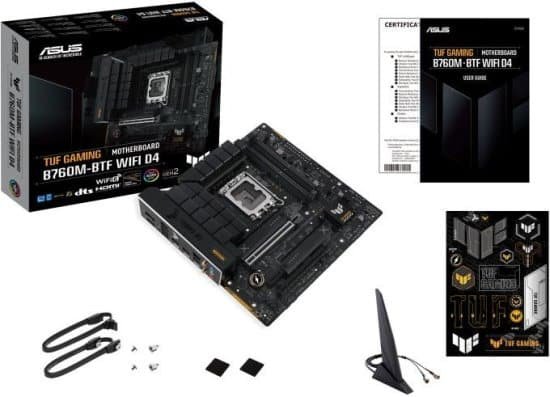

אביזרים

x2 SATA 6Gb/s cables
x1 ASUS Wi-Fi moving antenna
x1 TUF Gaming sticker
x1 M.2 Rubber Package
x1 Screw package for M.2 SSD
x1 User guide

תצורה

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
