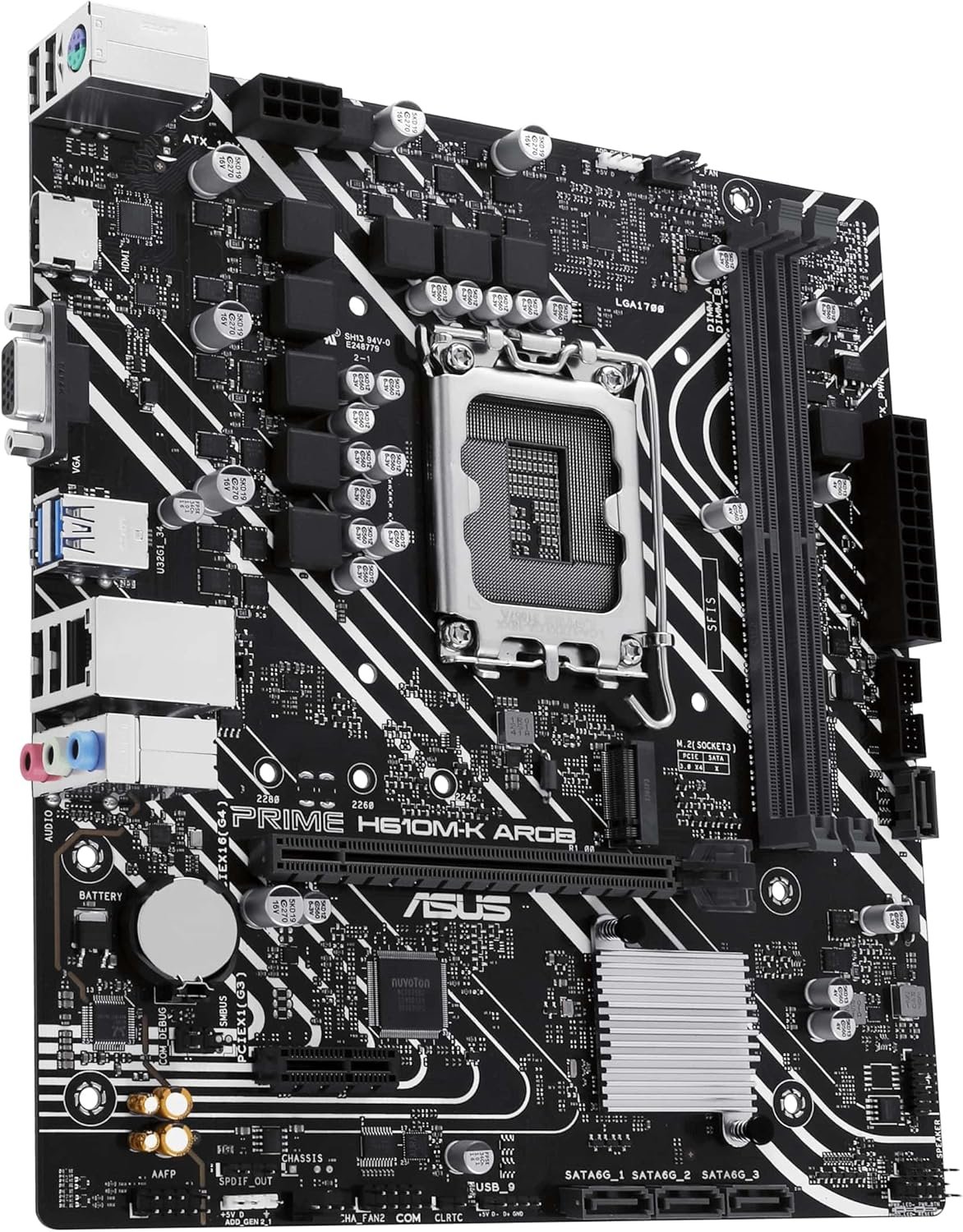

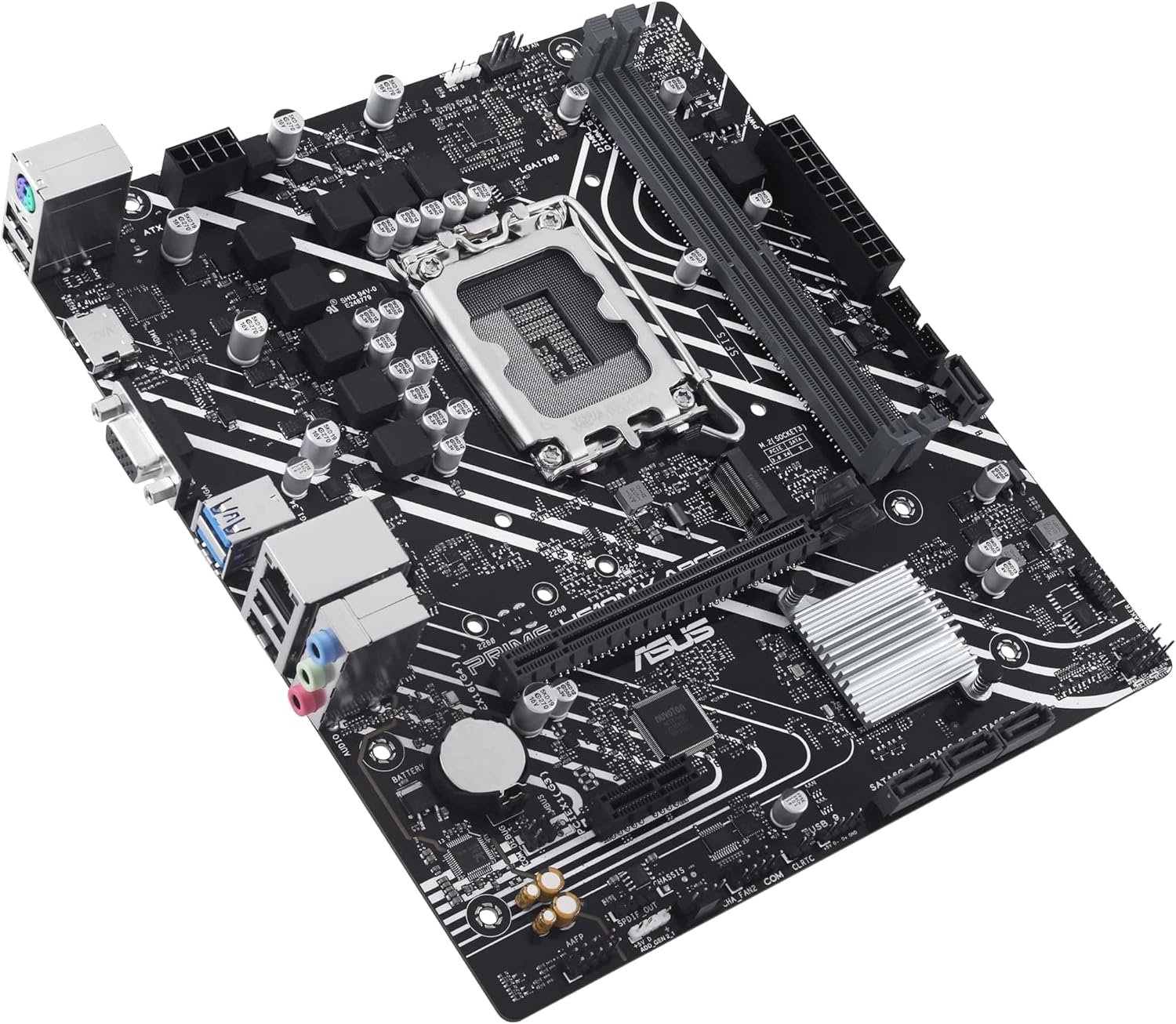

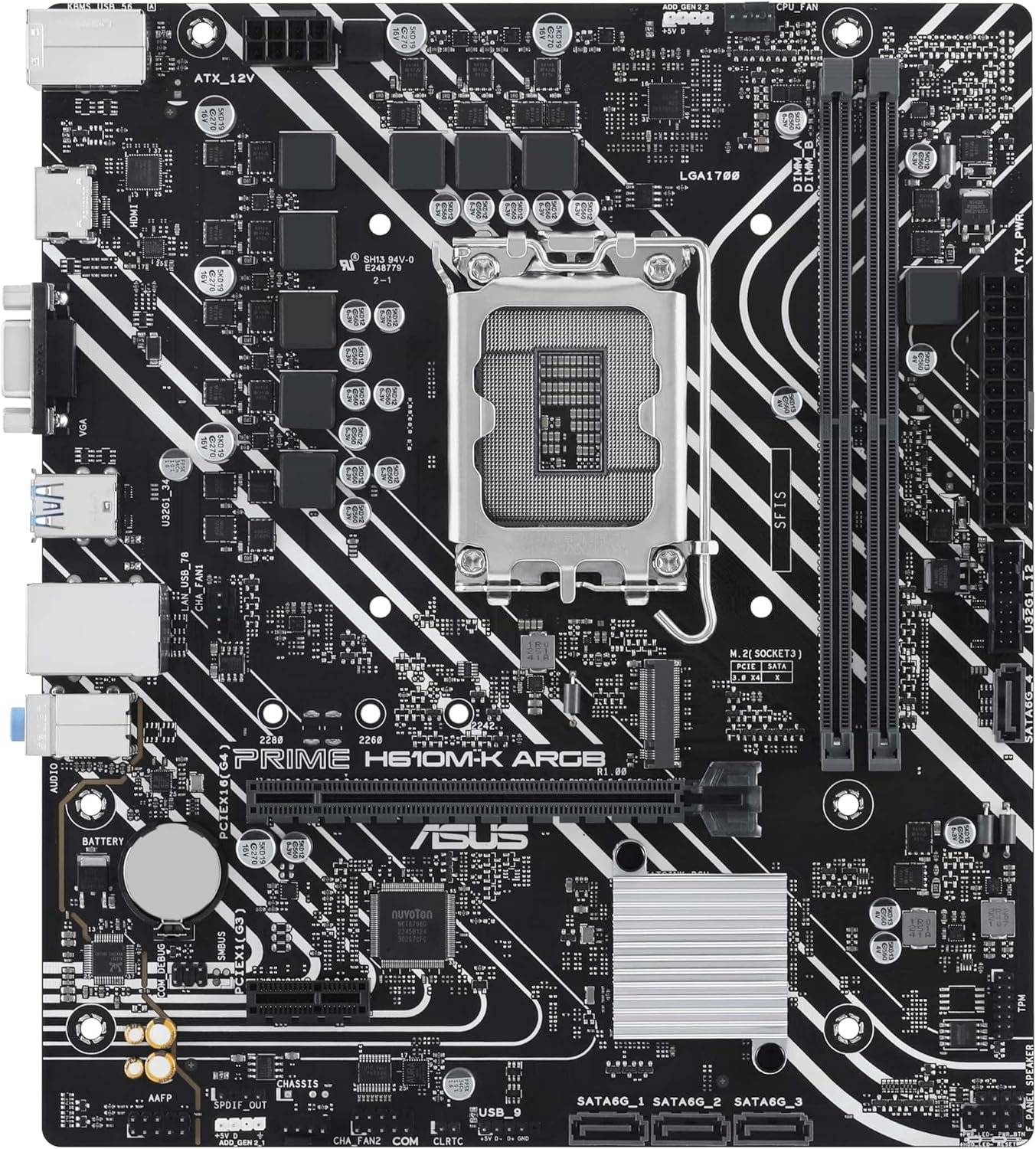

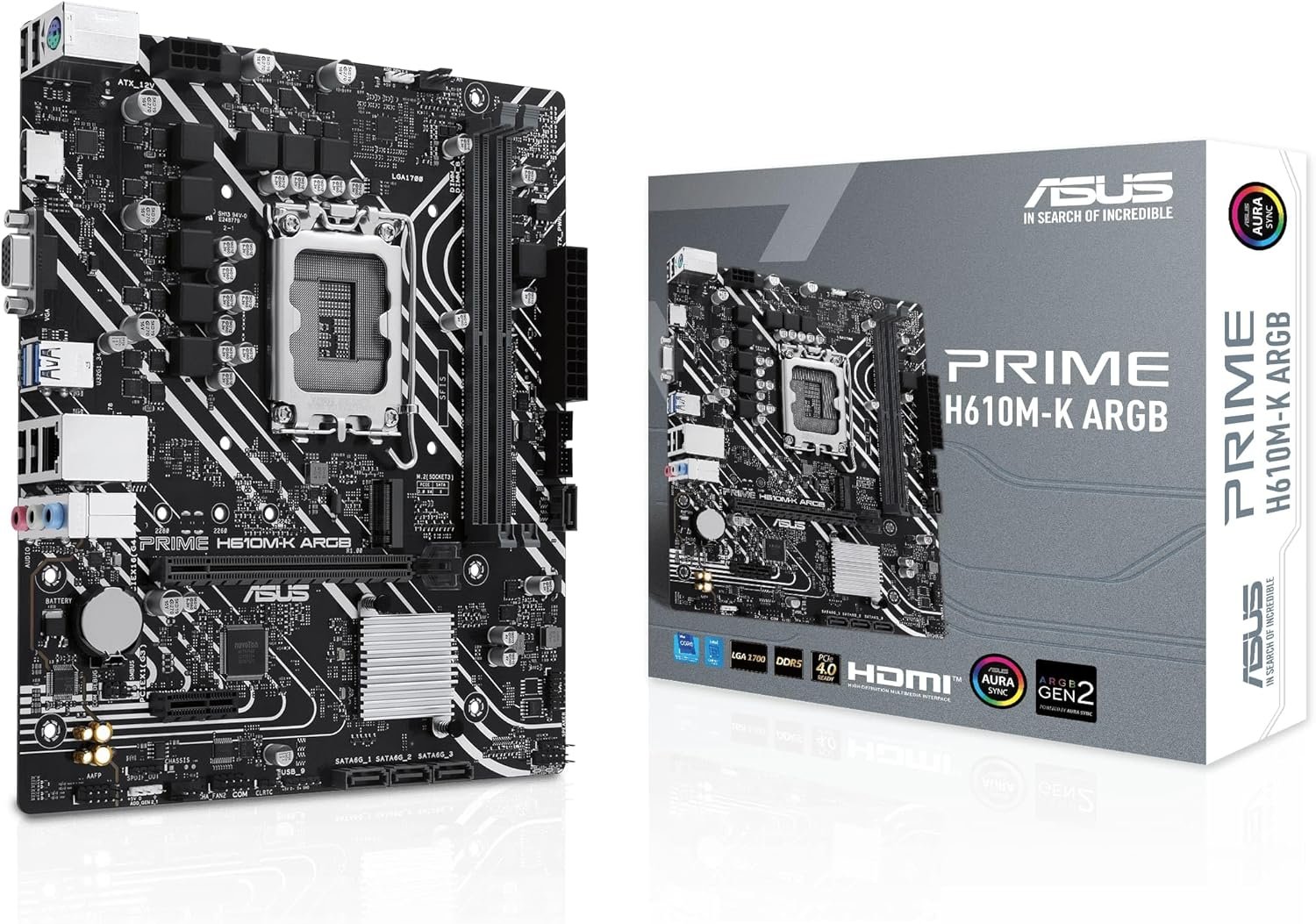

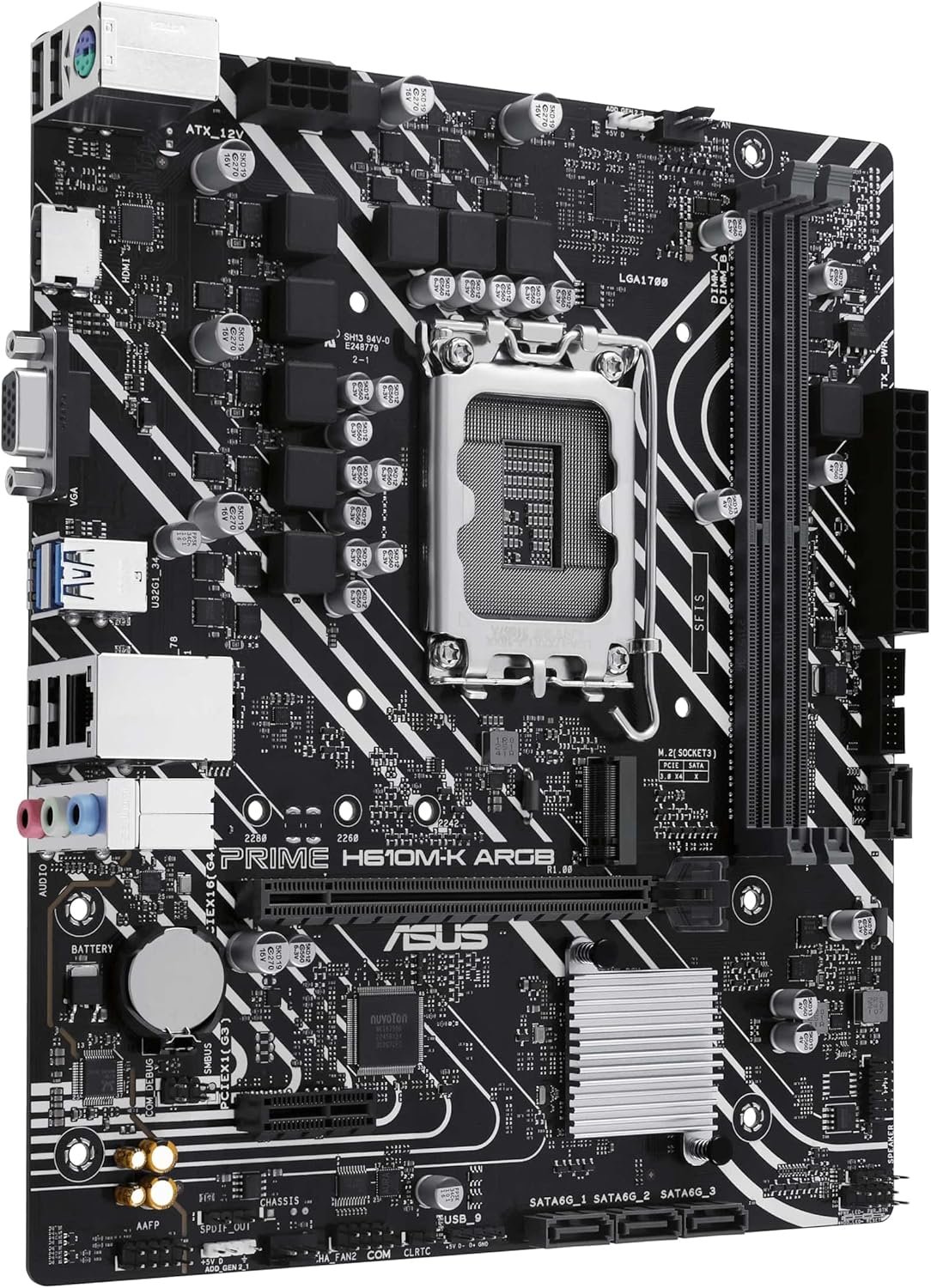

לוח אם – Asus Prime H610M-K ARGB Micro-ATX LGA1700 DDR5

460.00

לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזיכרונות DDR5 ובעל יציאות HDMI ,VGA.

מק״ט 90MB1G90-M0EAY0 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Asus Prime H610M-K ARGB Micro-ATX LGA1700 DDR5

תקופת אחריות

3 שנים על ידי היבואן הרשמי

יצרן לוח אם

Asus

מבוסס

Intel

תושבת

LGA1700

ערכת שבבים

H610

סוג זיכרון לוח אם

DDR5

גודל

Micro-ATX

תמיכה במעבדים

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
.Refer to http://www.asus.com for CPU support list*
.Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**

תמיכה בזיכרונות

2x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

גרפיקה מובנית

1x VGA port
1x HDMI™ port**
.Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports 4K@60Hz as specified in HDMI 2.1**

חריצי הרחבה

Intel® Core™ Processors (14th & 13th & 12th Gen)
1x PCIe 4.0 x16 slot
Intel® H610 Chipset
1x PCIe 3.0 x1 slot
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals –

USB

Rear USB (Total 6 ports)
2x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-)
Front USB (Total 3 ports)
1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1x USB 2.0 header supports 1 additional USB 2.0 port

שמע

Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
Supports up to 24-Bit/192 kHz playback –
Audio Features
Audio Shielding –
Premium audio capacitors –
Dedicated audio PCB layers –
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*

ממשק אחסון

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports

כרטיס רשת קווי

1x Realtek 1Gb Ethernet

חיבורים פנימיים

Fan and Cooling related
1x 4-pin CPU Fan header
2x 4-pin Chassis Fan headers

Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector

Storage related
1x M.2 slot (Key M)
4x SATA 6Gb/s ports

USB
1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous
2x Addressable Gen 2 headers
1x Clear CMOS header
1x Front Panel Audio header (AAFP)
1x COM Port header
1x S/PDIF Out header
1x Speaker header
1x SPI TPM header (14-1pin)
1x 10-1 pin System Panel header

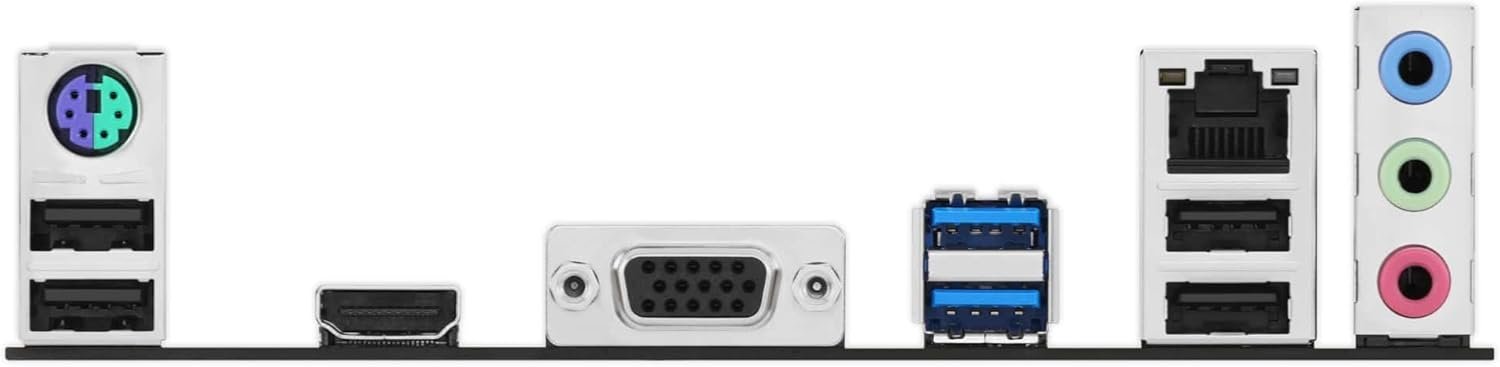

חיבורים ויציאות

2x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x VGA port
1x HDMI™ port
1x Realtek 1Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard/Mouse combo port

BIOS

128Mb Flash ROM, UEFI AMI BIOS

תכונות ייחודיות

ASUS 5X PROTECTION III
DIGI+ VRM –
LANGuard –
Overvoltage Protection –
SafeSlot Core –
Stainless-Steel Back I/O –

ASUS Q-Design
Q-DIMM –
Q-LED Core –
Q-Slot –

ASUS Thermal Solution
Aluminum heatsink design –

Aura Sync
Addressable Gen 2 RGB headers –

תוכנות מצורפות

ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync –
Fan Xpert 2+ –
Two-Way AI Noise Cancellation –
AI Suite 3
EPU –
DIGI+ VRM –
PC Cleaner –
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3 –
ASUS EZ Flash 3 –
ASUS UEFI BIOS EZ Mode –

אביזרים כלולים

Cables
2x SATA 6Gb/s cables

Miscellaneous
1x I/O Shield
1x M.2 Anchor

Documentation
1x User guide

תצורה

micro-ATX Form Factor
9.2inch x 8.0 inch ( 23.4 cm x 20.3 cm )

NVMe PCIe M.2 Connector

1

קישור לאתר היצרן

https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k-argb/
