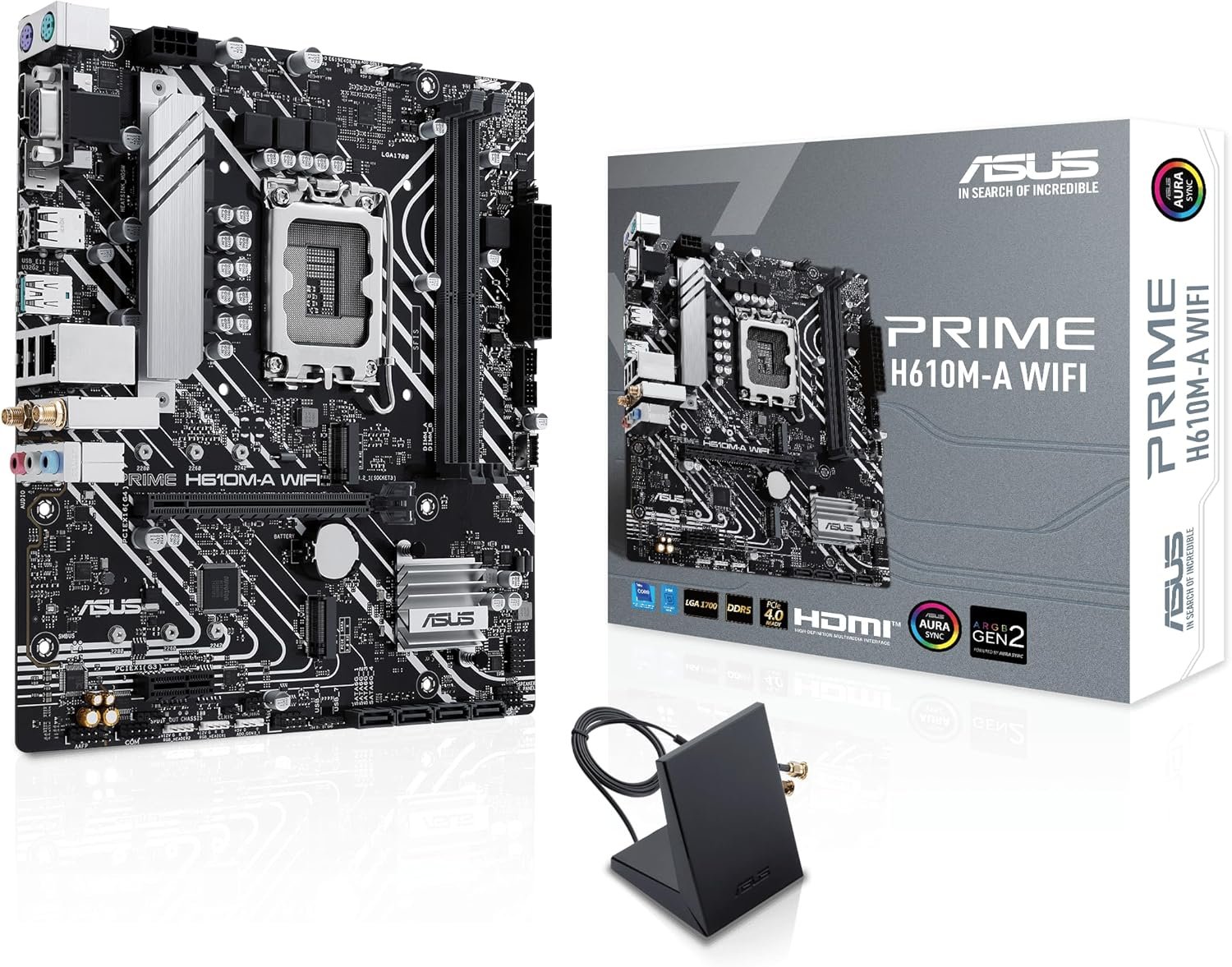

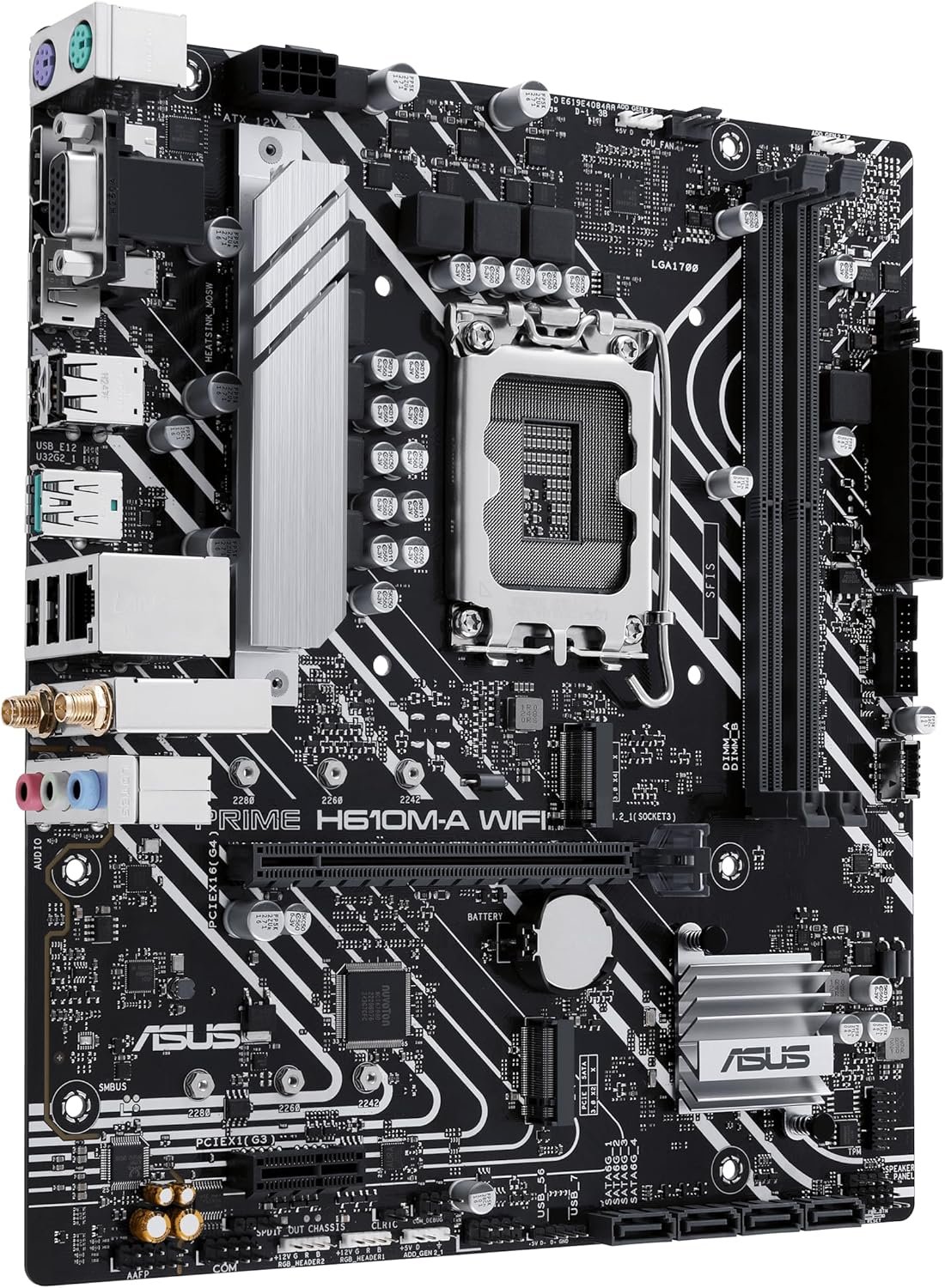

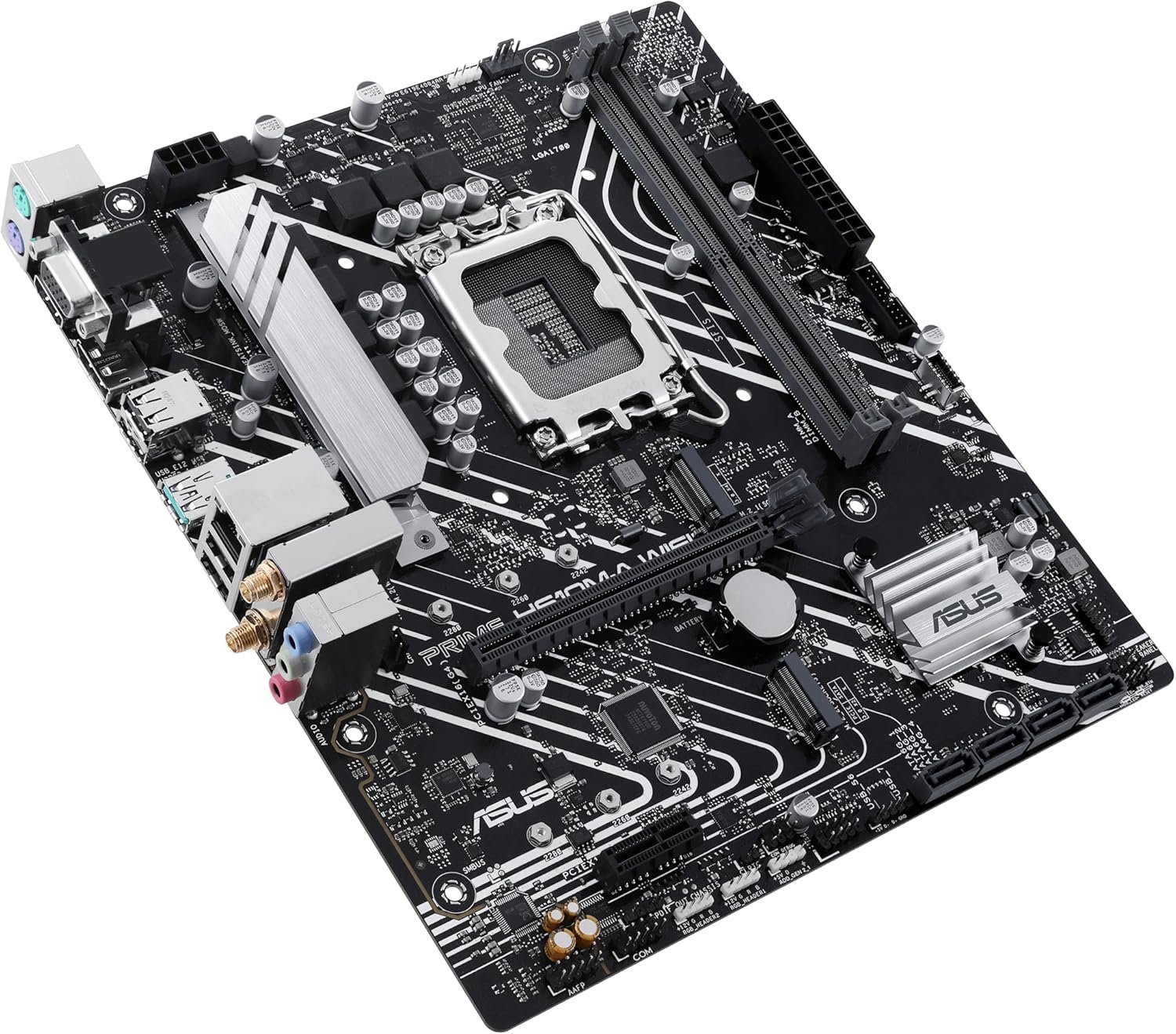

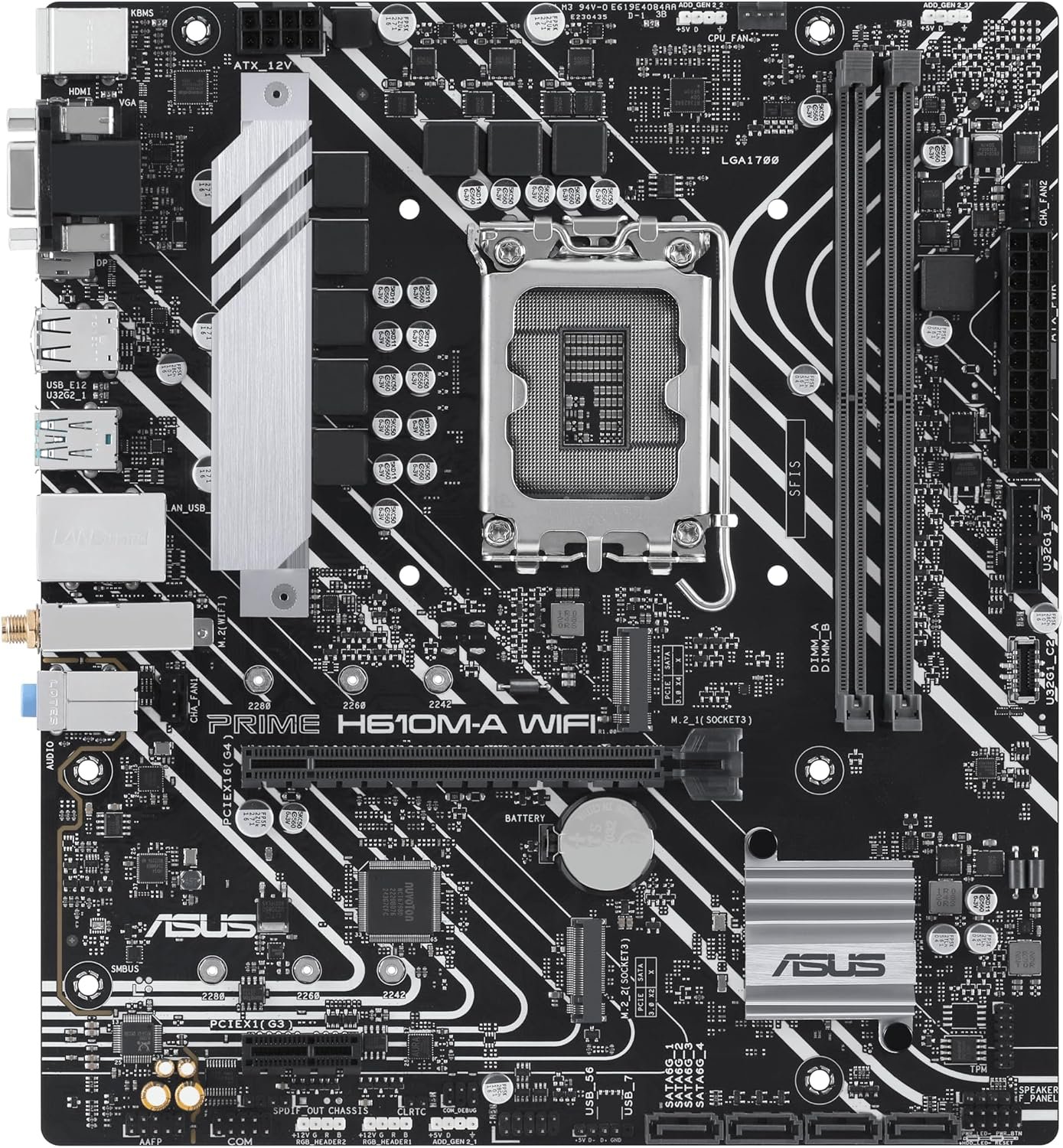

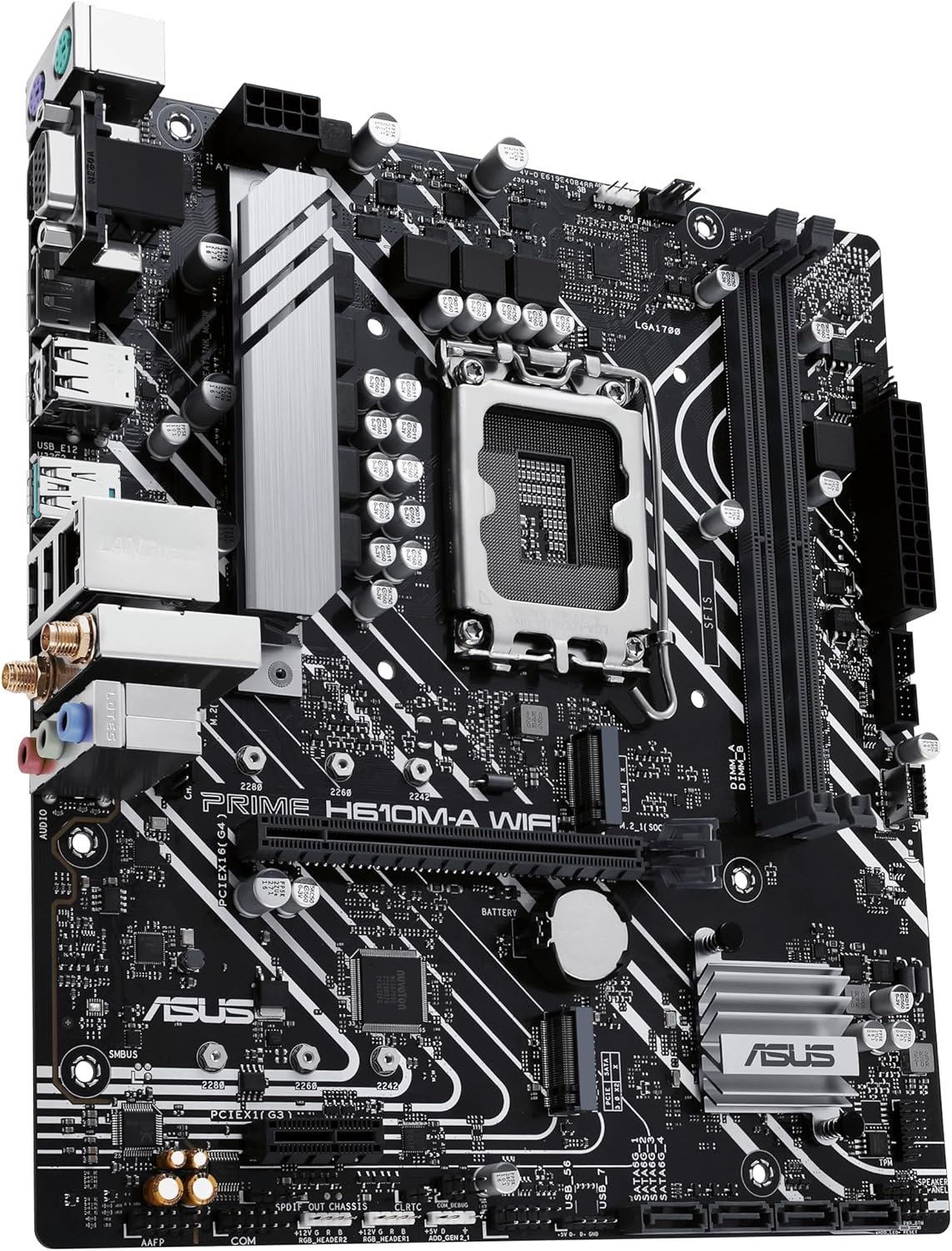

לוח אם – Asus PRIME H610M-A WIFI DDR5

575.00

לוח אם מבית ASUS, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזכרונות DDR5, בעל יציאות DP, VGA ו- HDMI.

מק״ט 90MB1G00-M0EAY0 קטגוריה תגיות , , , , ,

עוד על - לוח אם – Asus PRIME H610M-A WIFI DDR5

תקופת אחריות

3 שנים אחריות

דגם

Prime H610M-A WIFI

תמיכת מעבד

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

ערכת שבבים

H610 Chipset

זיכרון RAM

x2 DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

חיבורי גרפיקה

x1 DisplayPort**
x1 VGA port
x1 HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

חריצי הרחבה

x1 PCIe 4.0 x16 slot
x1 PCIe 3.0 x1 slot
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

אחסון

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
x4 SATA 6Gb/s ports

תקשורת

Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth® v5.0*

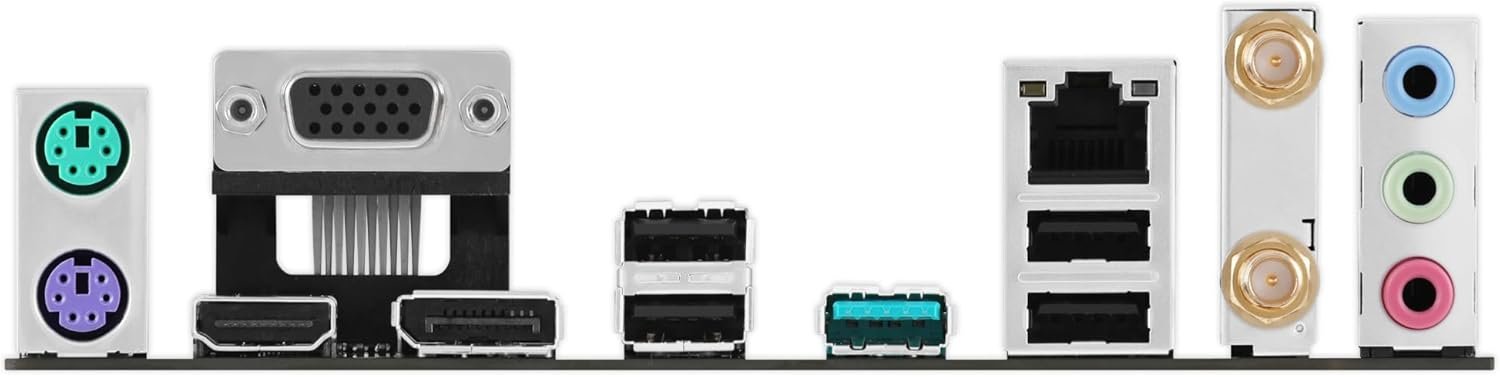

חיבורים ויציאות

x1 USB 3.2 Gen 2 (10G) port (1 x Type-A)
x4 USB 2.0 ports (4 x Type-A)
x1 DisplayPort
x1 VGA port
x1 HDMITM port
x1 Wi-Fi Module
x1 Intel® 1Gb Ethernet port
x3 Audio jacks
x1 PS/2 Keyboard (purple) port
x1 PS/2 Mouse (green) port

חיבורים פנימיים

x1 4-pin CPU Fan header
x2 4-pin Chassis Fan headers
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x2 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
x1 USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
x1 USB 2.0 header supports 1 USB 2.0 port
x1 USB 2.0 header supports additional 2 USB 2.0 ports
x3 Addressable Gen 2 headers
x2 AURA RGB headers
x1 Clear CMOS header
x1 Front Panel Audio header (AAFP)
x1 COM Port header
x1 S/PDIF Out header
x1 Speaker header
x1 SPI TPM header (14-1pin)
x1 10-1 pin System Panel header

תכונות מיוחדות

DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
VRM heatsink design
AURA RGB headers
Addressable Gen 2 headers

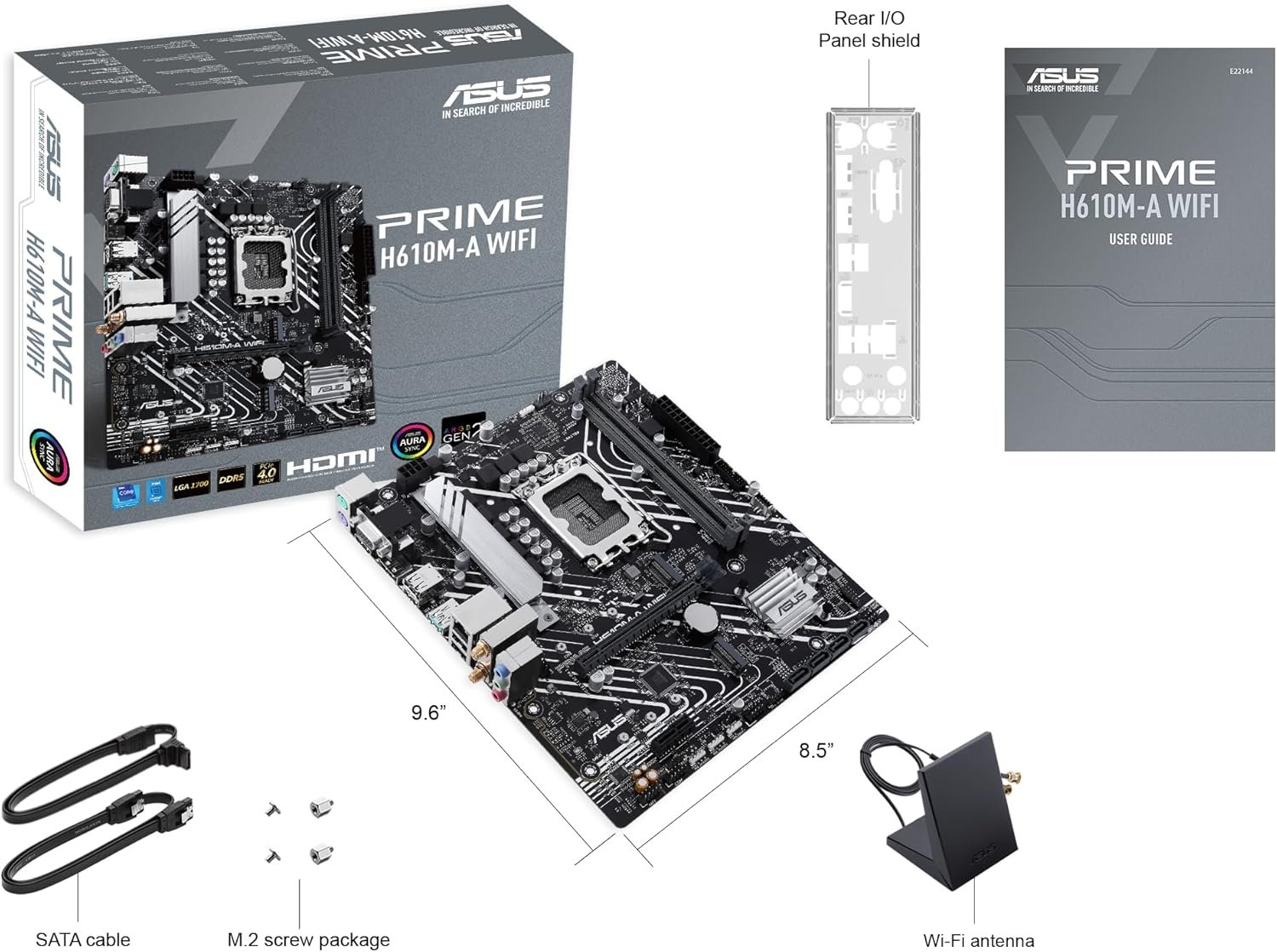

אביזרים

x2 SATA 6Gb/s cables
x1 ASUS Wi-Fi moving antennas
x1 I/O Shield
x1 Screw package for M.2 SSD
x1 User guide

תצורה

mATX Form Factor
9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
