| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1851
|
| ערכת שבבים |
Z890
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
Micro-ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Please refer to "CPU Support List" for more information*
|
| תמיכה בזיכרונות |
Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for DDR5 6400/5600 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information)
|
| גרפיקה מובנית |
:Integrated Graphics Processor-Intel® HD Graphics support
1x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
Support for DisplayPort 2.1 version*
1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Support for DisplayPort 2.1 version*
1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
Support for HDMI 1.4 version*
(Graphics specifications may vary depending on CPU support)
Support for up to 3 displays at the same time
|
| חריצי הרחבה |
:CPU
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
:Chipset
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
|
| USB |
:CPU
1x USB4® USB Type-C® port on the back panel
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
1x USB 3.2 Gen 2 Type-A port (red) on the back panel
6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
:Chipset+2 USB 2.0 Hubs
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
| ממשק אחסון |
:CPU
1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
:Chipset:
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
| שמע |
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
Support for S/PDIF Out
|
| כרטיס רשת קווי |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| מודול תקשורת אלחוטית |
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment)
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)*
Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
3x system fan headers
1x system fan/water cooling pump header
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
3x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
2x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1x HDMI port(Note)
1x power button
1x reset button
1x Q-Flash Plus button
1x reset jumper
1x Clear CMOS jumper
(Note) Actual support may vary by CPU
|

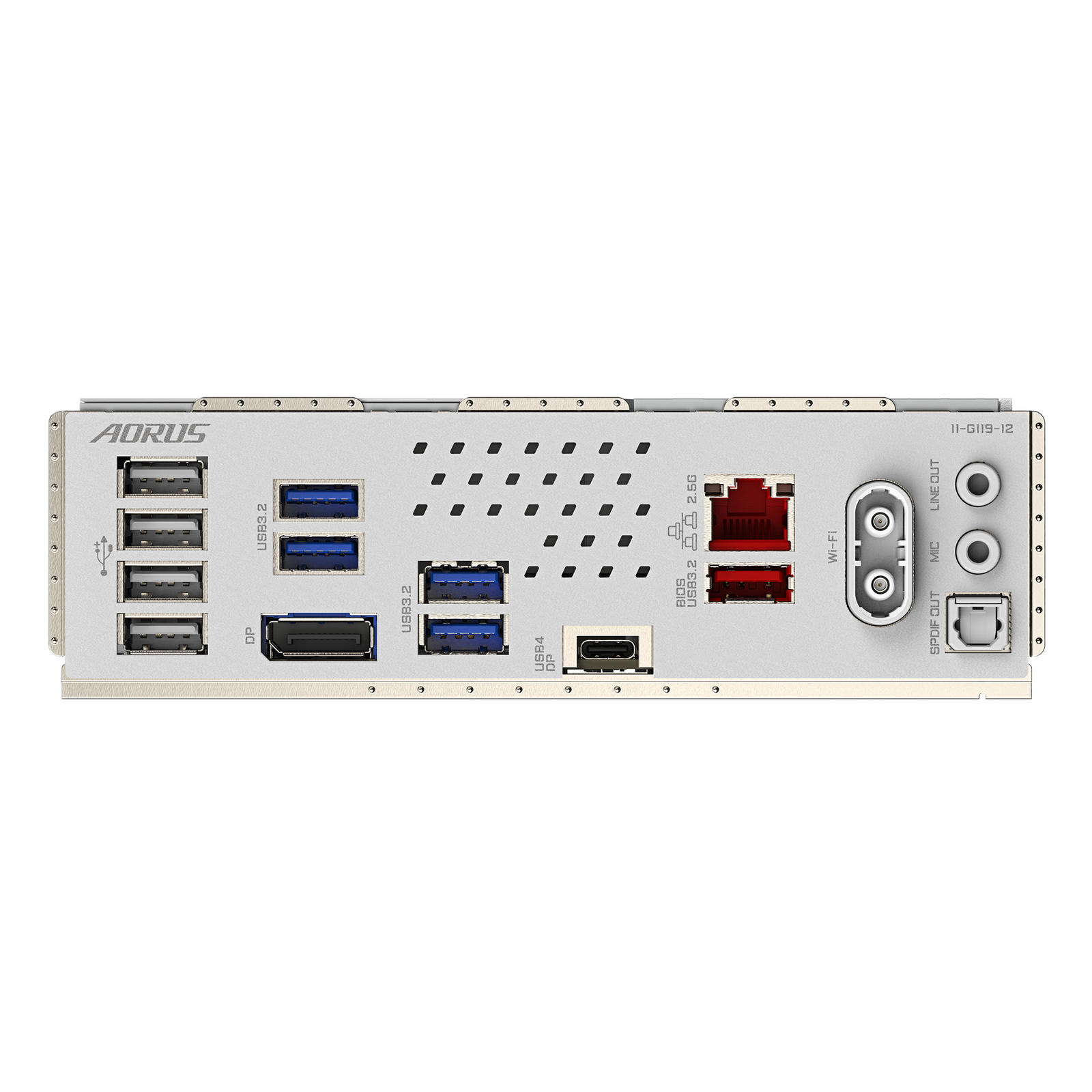

| חיבורים ויציאות |
1x USB4® USB Type-C® port (DisplayPort(Note))
1x USB 3.2 Gen 2 Type-A port (red)
4x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
2x antenna connectors (2T2R)
1x DisplayPort (Note)
1x RJ-45 port
1x optical S/PDIF Out connector
2x audio jacks
(Note) Actual support may vary by CPU
|
| BIOS |
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
|
| תוכנות מצורפות |
Norton® Internet Security (OEM version)
LAN bandwidth management software
|
| תצורה |
Micro ATX Form Factor; 24.4cm x 24.4cm
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/Z890M-AORUS-ELITE-WIFI7-ICE
|
