| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Gigabyte |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1851 |
|---|
| ערכת שבבים | Z890 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 4 |
|---|
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list)
L3 cache varies with CPU |
|---|
| תמיכה בזיכרונות | Support up to DDR5 9466+MT/s (OC)
4x DDR5 DIMM slots, Dual Channel
Max. Capacity 256 GB
Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel® Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
|---|
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support
1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Support for DisplayPort 2.1 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) |
|---|
| חריצי הרחבה | :CPU
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset
2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|---|
| USB | :Chipset
1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1x USB 3.2 Gen 2 Type-A port (red) on the back panel
6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
:Chipset+2 USB 2.0 Hubs
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|---|
| ממשק אחסון | :CPU
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
:Chipset
1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|---|
| שמע | Realtek® Audio CODEC
High Definition Audio
2/4/5.1-channel
You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings* |
|---|
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|

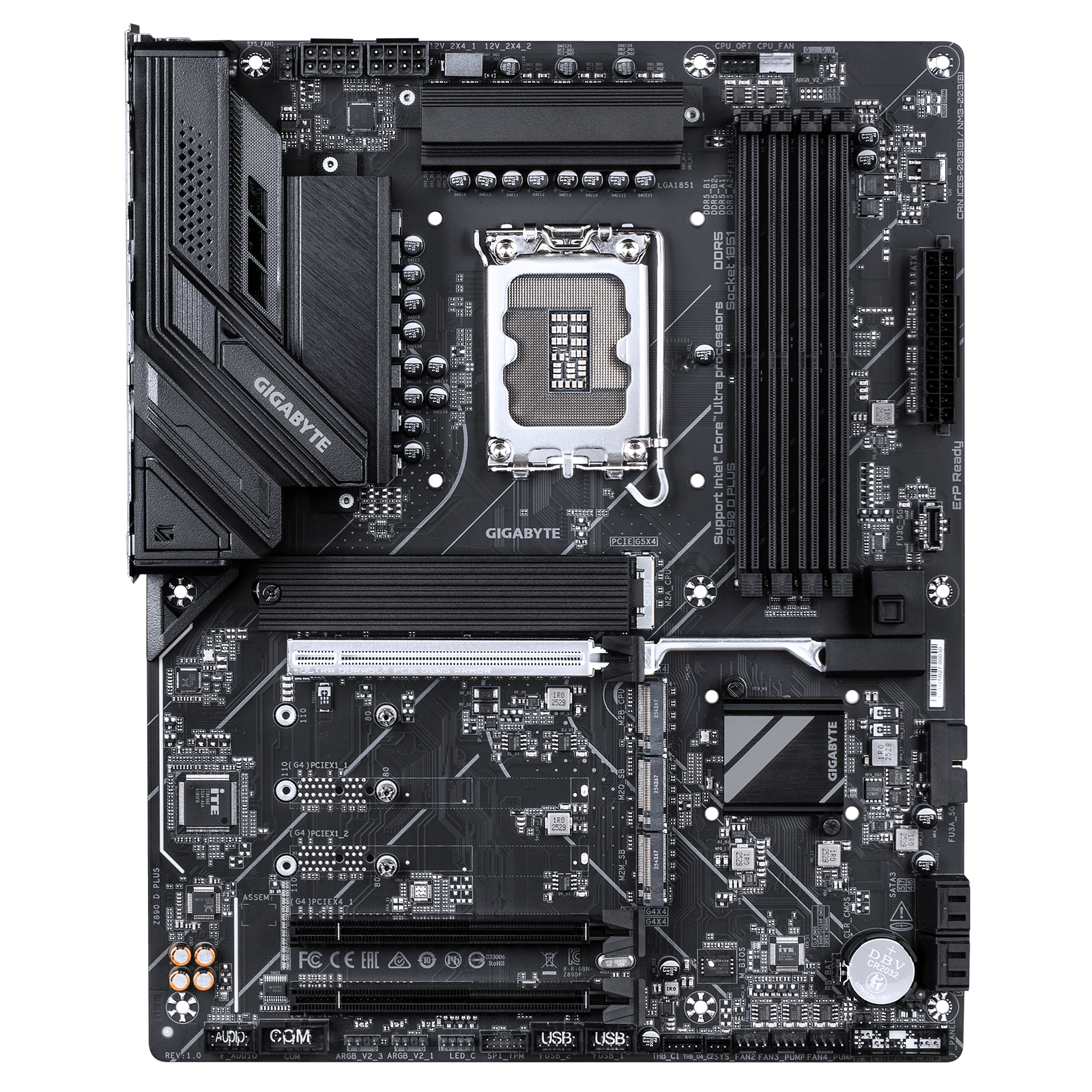

| חיבורים פנימיים | 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
3x system fan headers
1x system fan/water cooling pump header
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
2x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1x serial port header
1x reset jumper
1x Clear CMOS jumper |
|---|

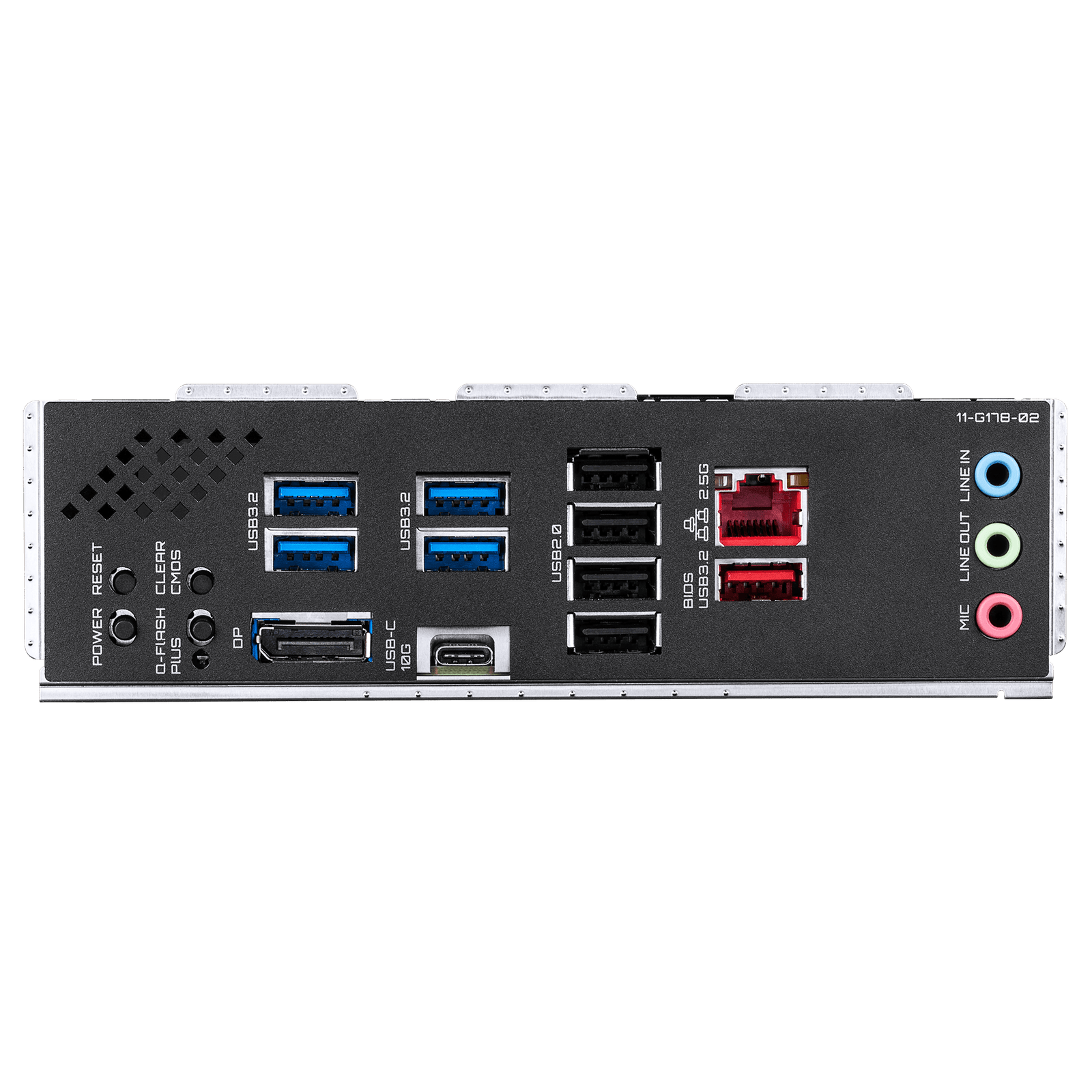

| חיבורים ויציאות | 1x reset button
1x power button
1x Clear CMOS button
1x Q-Flash Plus button
1x DisplayPort (Note)
1x USB Type-C® port, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 2 Type-A port (red)
4x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
1x RJ-45 port
3x audio jacks (Note) Actual support may vary by CPU |
|---|
| BIOS | 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| תכונות מיוחדות | Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
|---|
| תוכנות מצורפות | Norton® Internet Security (OEM version) |
|---|
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
|---|
| קישור לאתר היצרן | https://www.gigabyte.com/Motherboard/Z890-D-PLUS |
|---|
