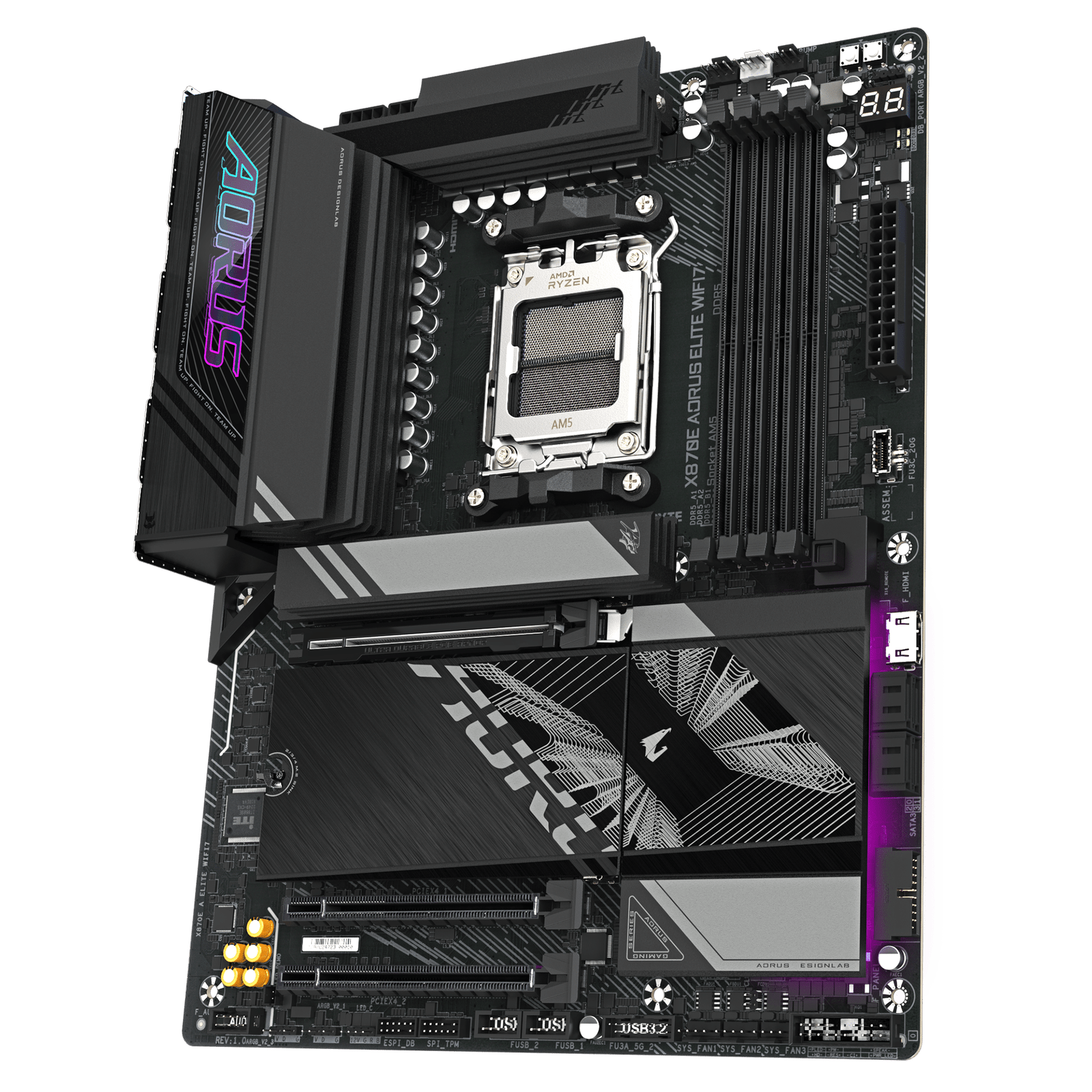

לוח אם – Gigabyte X870E Aorus Elite AM5 ATX WIFI7 2.5GbE Lan DDR5

1,755.00

לוח אם איכותי מבית GIGABYTE, בעל תושבת AM5, ערכת שבבים X870E ותאימות לזיכרונות DDR5.

מק״ט X870E A ELITE WIFI7 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Gigabyte X870E Aorus Elite AM5 ATX WIFI7 2.5GbE Lan DDR5

תקופת אחריות

3 שנים על ידי היבואן הרשמי מור לוי טכנולוגיות בע"מ

תמיכה במעבדים

:AMD Socket AM5, support for
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)

ערכת שבבים

AMD X870E

זיכרון

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
x4 DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)

גרפיקה

:Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
x2 USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
Support for DisplayPort 1.4 version and HDR*

:Integrated Graphics Processor with AMD Radeon™ Graphics support
x1 HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR*
Support native HDMI 2.1 TMDS compatible ports**

x1 front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
Support for HDMI 1.4 version*

(Graphics specifications may vary depending on CPU support)
Support for up to quad-display at the same time

שמע

Realtek® ALC1220 CODEC
The back panel line out jack supports DSD audio*

High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*

Support for S/PDIF Out

Networks / רשת

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment)
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)*
Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**

חריצי הרחבה

:x1 PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot*

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot)

:Chipset
x1 PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
x1 PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

אחסון

:x1 M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

x2 M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used*

x1 M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
x4 SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors*

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

:CPU+ASMedia USB4® controller
x2 USB4® USB Type-C® ports on the back panel
:CPU
x1 USB 3.2 Gen 1 port on the back panel
:Chipset
x1 USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
x2 USB 3.2 Gen 2 Type-A ports (red) on the back panel
x7 USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
x8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

חיבורים פנימיים

x1 24-pin ATX main power connector
x2 8-pin ATX 12V power connectors
x1 CPU fan header
x1 CPU fan/water cooling pump header
x3 system fan headers
x1 system fan/water cooling pump header
x3 addressable RGB Gen2 LED strip headers
x1 RGB LED strip header
x4 M.2 Socket 3 connectors
x4 SATA 6Gb/s connectors
x1 front panel header
x1 front panel audio header
x1 USB Type-C® header, with USB 3.2 Gen 2×2 support
x2 USB 3.2 Gen 1 headers
x2 USB 2.0/1.1 headers
x1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
x1 HDMI port (Note)
x1 power button
x1 reset button
x1 reset jumper
x1 Clear CMOS jumper

חיבורים ויציאות

x1 Q-Flash Plus button
x4 USB 2.0/1.1 ports
x4 USB 3.2 Gen 1 ports
x1 HDMI port (Note)
x2 USB4® USB Type-C® ports (DisplayPort (Note))
x1 RJ-45 port
x2 USB 3.2 Gen 2 Type-A ports (red)

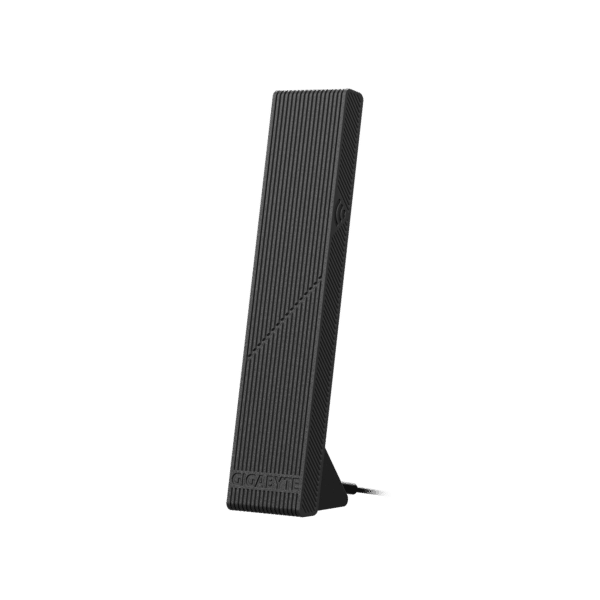

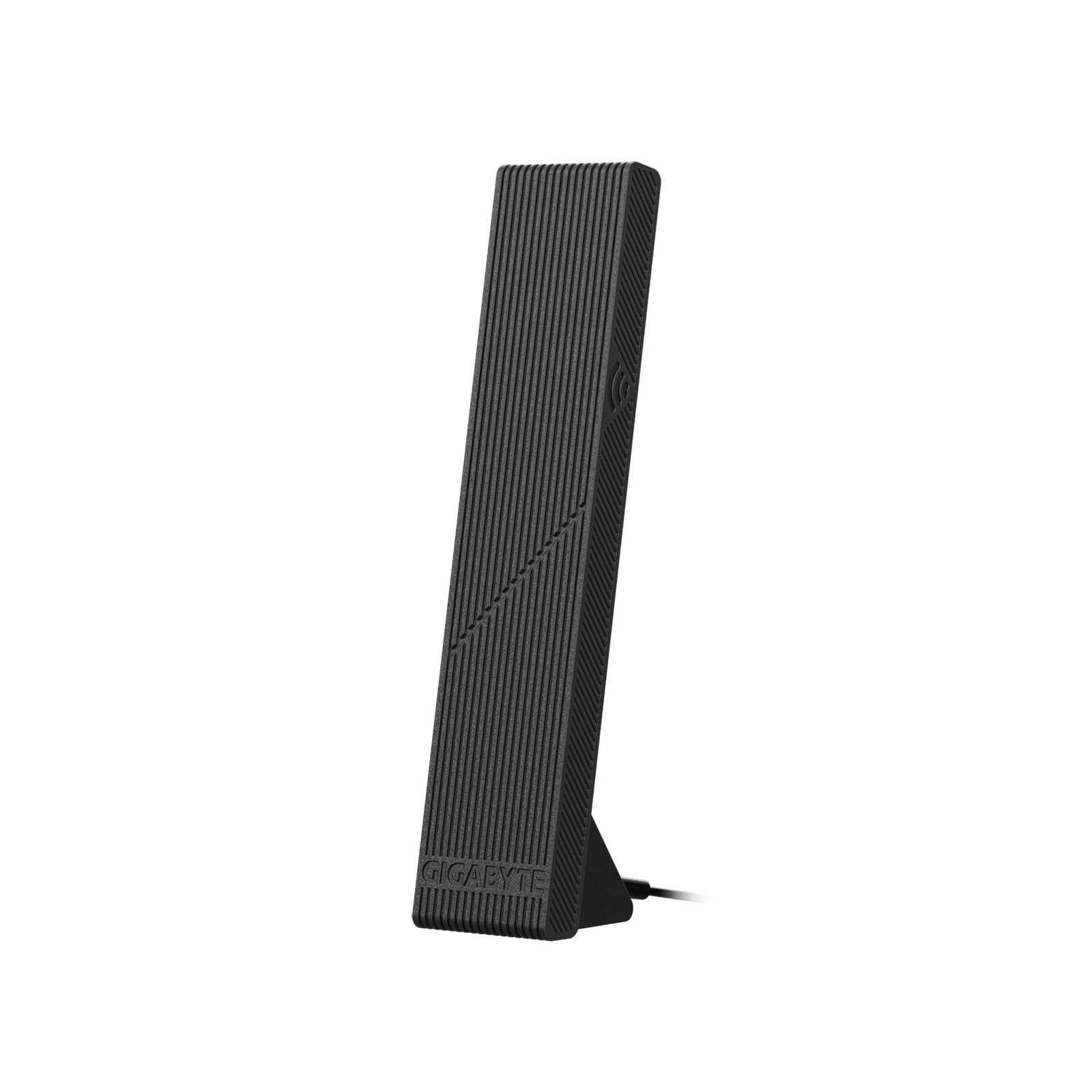

x2 antenna connectors (2T2R)
x2 audio jacks
x1 optical S/PDIF Out connector

בקר

iTE® I/O Controller Chip

BIOS

x1 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

מערכות הפעלה תומכות

Support for Windows 11 64-bit

תצורה

ATX Form Factor; 30.5cm x 24.4cm

קישור לאתר היצרן

https://www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-WIFI7#kf
