| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
AMD
|
| תושבת |
sTR5
|
| ערכת שבבים |
TRX50
|
| סוג זיכרון לוח אם |
ECC DDR5
|
| גודל לוח אם |
E-ATX
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
:AMD Socket sTR5, support for
AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)
|
| תמיכה בזיכרונות |
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8x DDR5 DIMM sockets supporting up to 2 TB of system memory
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
– AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| חריצי הרחבה |
:3x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot)
:1x PCI Express x16 slot (PCIEX16_4), integrated in the CPU
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x16 mode
|
| USB |
:CPU
4x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® USB4® controller:
2x USB4® USB Type-C® ports on the back panel
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
2x USB 3.2 Gen 2 Type-A ports (red) on the back panel
:Chipset+USB 3.2 Gen 1 Hub:
4x USB 3.2 Gen 1 ports available through the internal USB headers
:Chipset+USB 2.0 Hub
4x USB 2.0/1.1 ports available through the internal USB headers
|
| ממשק אחסון |
:3x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x4/x2 SSD
– AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x4/x2 SSD
:1x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x4/x2 SSD
The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 9000/7000 Series Processors*
4x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
|
| שמע |
Realtek® ALC4080 CODEC (rear panel audio)
– Support for DTS:X® Ultra
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio)
|
| כרטיס רשת קווי |
2x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
|
| מודול תקשורת אלחוטית |
Qualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment)
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
4x PCIe power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
2x system fan headers
4x system fan/water cooling pump headers
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2×2 support
2x USB 3.2 Gen 1 headers
2x USB 2.0/1.1 headers
1x noise detection header
1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1x power button
1x Clear CMOS button
1x reset button
1x reset jumper
2x temperature sensor headers
1x Clear CMOS jumper
|

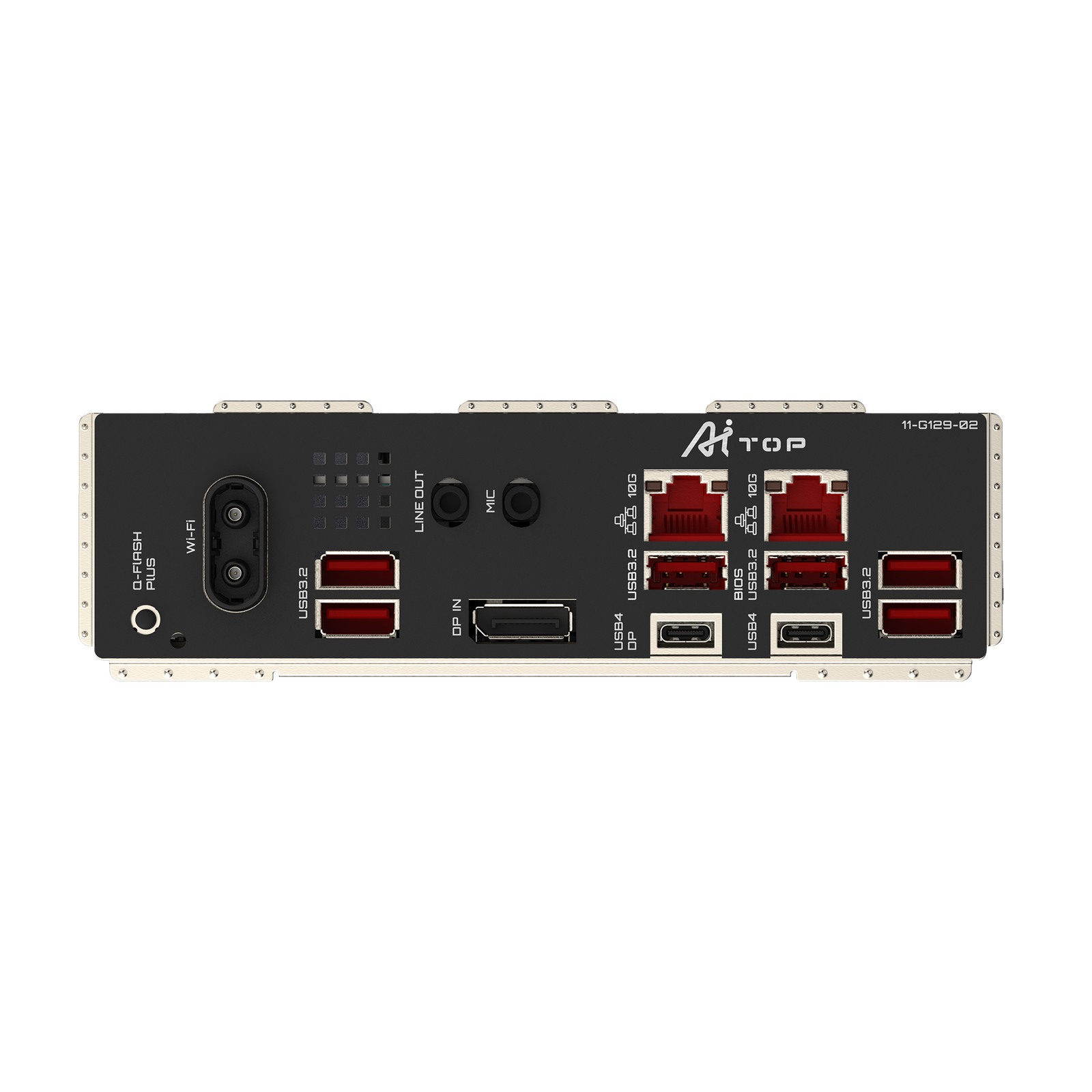

| חיבורים ויציאות |
1x Q-Flash Plus button
2x SMA antenna connectors (2T2R)
1x DisplayPort In port
1x USB4® USB Type-C® port (DisplayPort)
1x USB4® USB Type-C® port
6x USB 3.2 Gen 2 Type-A ports (red)
2x RJ-45 port
2x audio jacks
|
| BIOS |
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
|
| תוכנות מצורפות |
Norton® Internet Security (OEM version)
LAN bandwidth management software
|
| תצורה |
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/TRX50-AI-TOP
|
