| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Gigabyte |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1700 |
|---|
| ערכת שבבים | H610 |
|---|
| סוג זיכרון לוח אם | DDR4 |
|---|
| גודל לוח אם | Mini-ITX |
|---|
| NVMe PCIe M.2 Connector | 1 |
|---|
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Please refer to "CPU Support List" for more information* |
|---|
| תמיכה בזיכרונות | Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information) |
|---|
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support
1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3*
Support native HDMI 2.1 TMDS compatible ports**
1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3*
1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Support for DisplayPort 1.2 version*
(Graphics specifications may vary depending on CPU support)
Support for up to 3 displays at the same time |
|---|
| חריצי הרחבה | 1x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard) |
|---|
| USB | :Chipset
4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4x USB 2.0/1.1 ports on the back panel
:Chipset+USB 2.0 Hub
4x USB 2.0/1.1 ports available through the internal USB headers |
|---|
| ממשק אחסון | :Chipset
1x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
4x SATA 6Gb/s connectors |
|---|
| שמע | Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software |
|---|
| כרטיס רשת קווי | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
|---|
| חיבורים פנימיים | 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
1x CPU fan header
2x system fan headers
1x RGB LED strip header
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2x serial port headers
1x Clear CMOS jumper
1x chassis intrusion header |
|---|

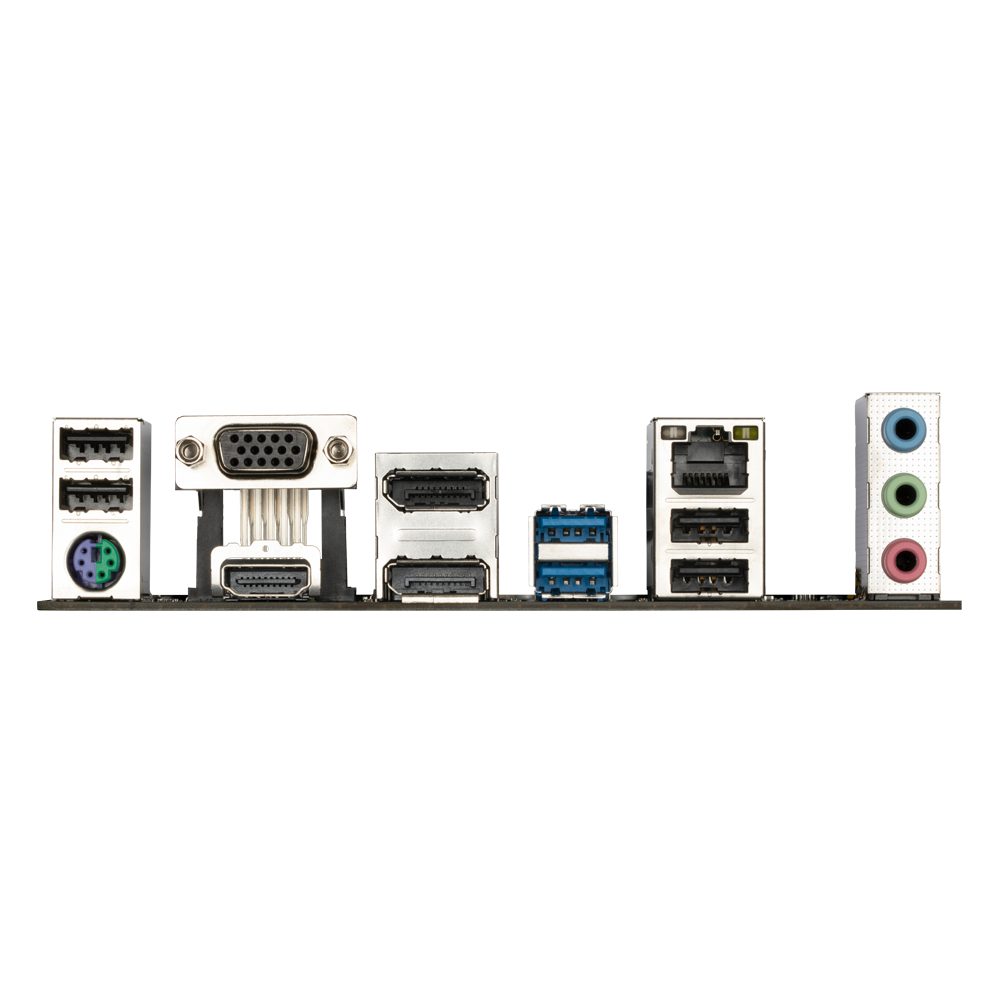

| חיבורים ויציאות | 1x PS/2 keyboard/mouse port
2x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
1x D-Sub port
2x DisplayPorts
1x HDMI 2.0 port
1x RJ-45 port
3x audio jacks |
|---|
| BIOS | 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| תכונות מיוחדות | Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
@BIOS
EasyTune
Ambient LED
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install |
|---|
| תוכנות מצורפות | Norton® Internet Security (OEM version)
LAN bandwidth management software |
|---|
| Ram Memory | DDR4 |
|---|
| Socket | LGA1700 |
|---|
