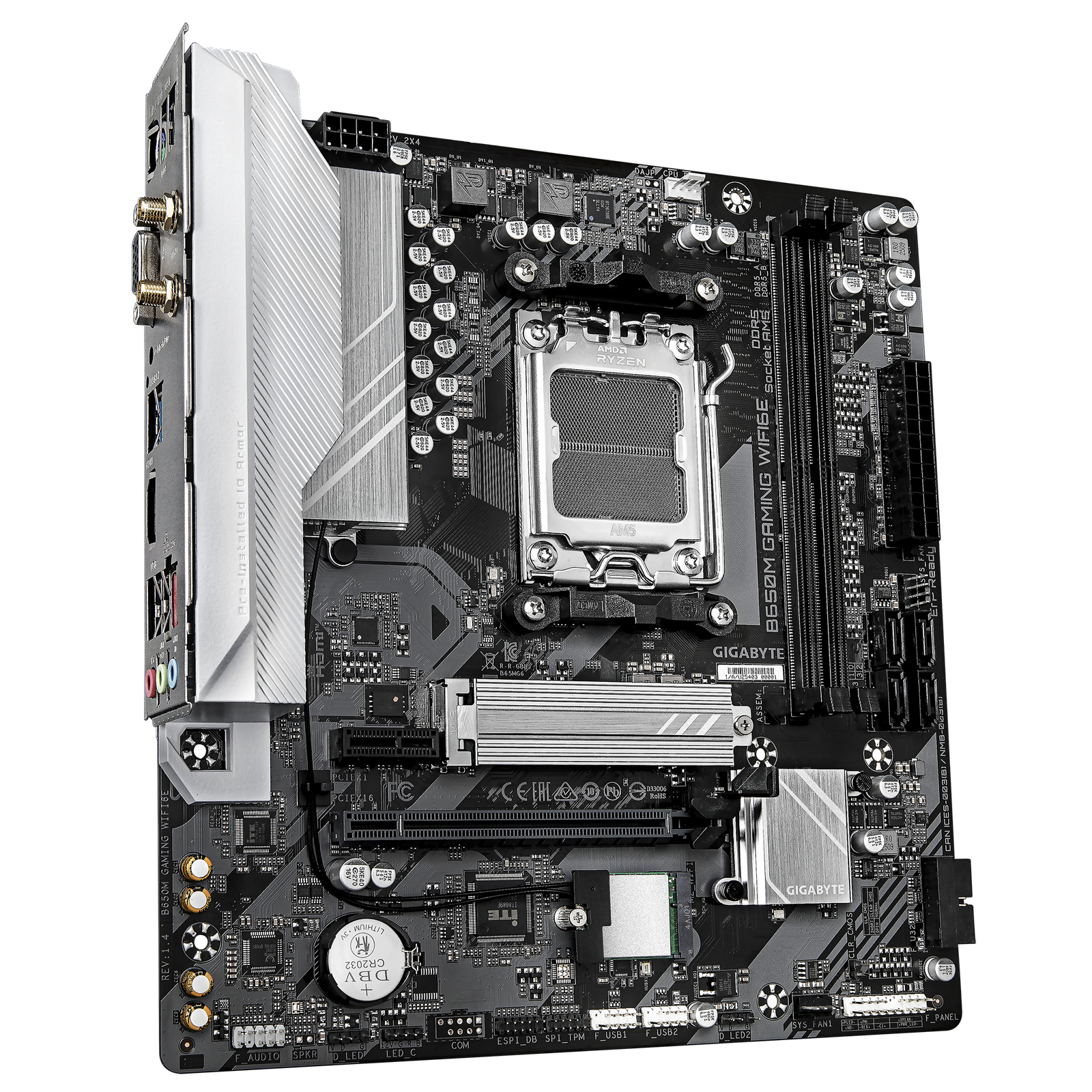

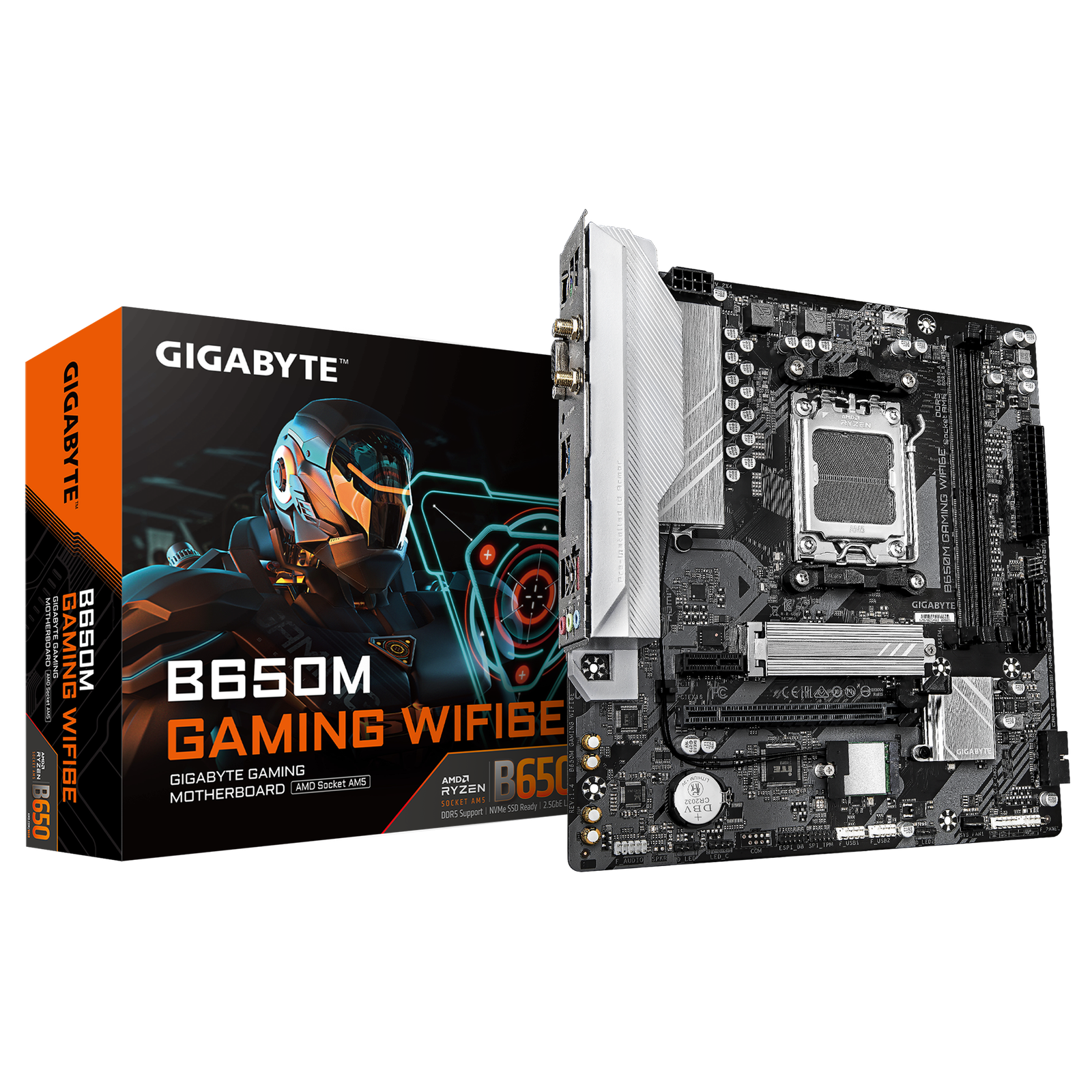

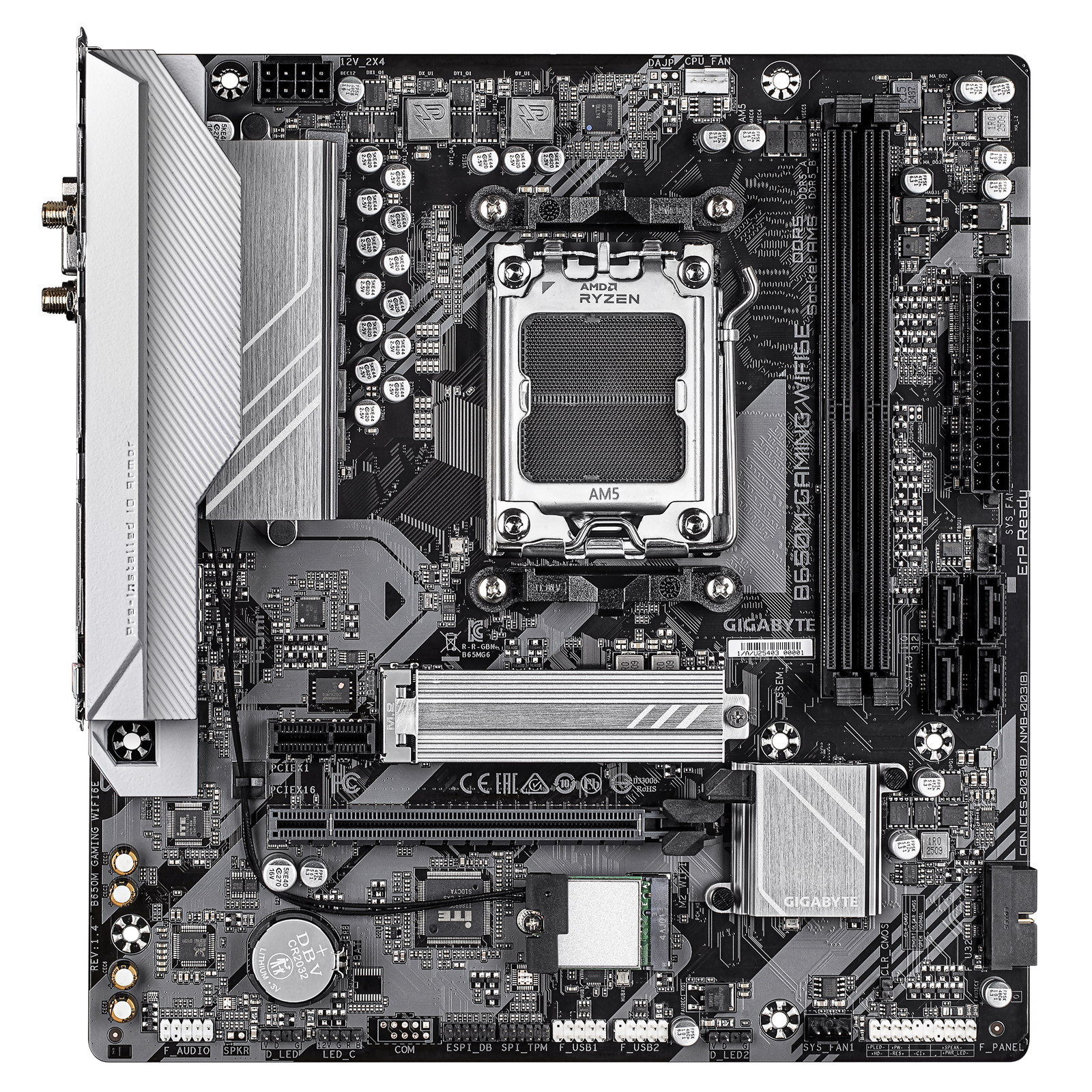

לוח אם – Gigabyte B650M Gaming WIFI6E Micro-ATX AM5 DDR5

חדש באתר

⁦לוח אם – Gigabyte B650M Gaming WIFI6E Micro-ATX AM5 DDR5⁩ – תמונה ⁦2⁩

לוח אם – Gigabyte B650M Gaming WIFI6E Micro-ATX AM5 DDR5

530.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B650, תאימות לזיכרונות DDR5, בעל יציאות HDMI ,VGA.

המלאי אזל

מק״ט B650M GAMING WIFI6E 1.4 קטגוריה לוחות אם תגיות AM5, AMD, B650, DDR5, Gigabyte, Micro-ATX, WIFI & Bluetooth, לבן

עוד על - לוח אם – Gigabyte B650M Gaming WIFI6E Micro-ATX AM5 DDR5

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	B650
סוג זיכרון לוח אם	DDR5
גודל לוח אם	Micro-ATX
NVMe PCIe M.2 Connector	1
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list)
תמיכה בזיכרונות	Support for DDR5 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
גרפיקה מובנית	Integrated Graphics Processor with AMD Radeon™ Graphics support 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support)
חריצי הרחבה	:1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
USB	:CPU 2x USB 3.2 Gen 1 ports on the back panel 1x USB 2.0/1.1 port on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 5x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) :Chipset+USB 2.0 Hub 2x USB 2.0/1.1 ports available through the internal USB header
ממשק אחסון	:1x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
כרטיס רשת קווי	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
מודול תקשורת אלחוטית	Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment)
חיבורים פנימיים	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 2x addressable LED strip headers 1x RGB LED strip header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x Clear CMOS jumper

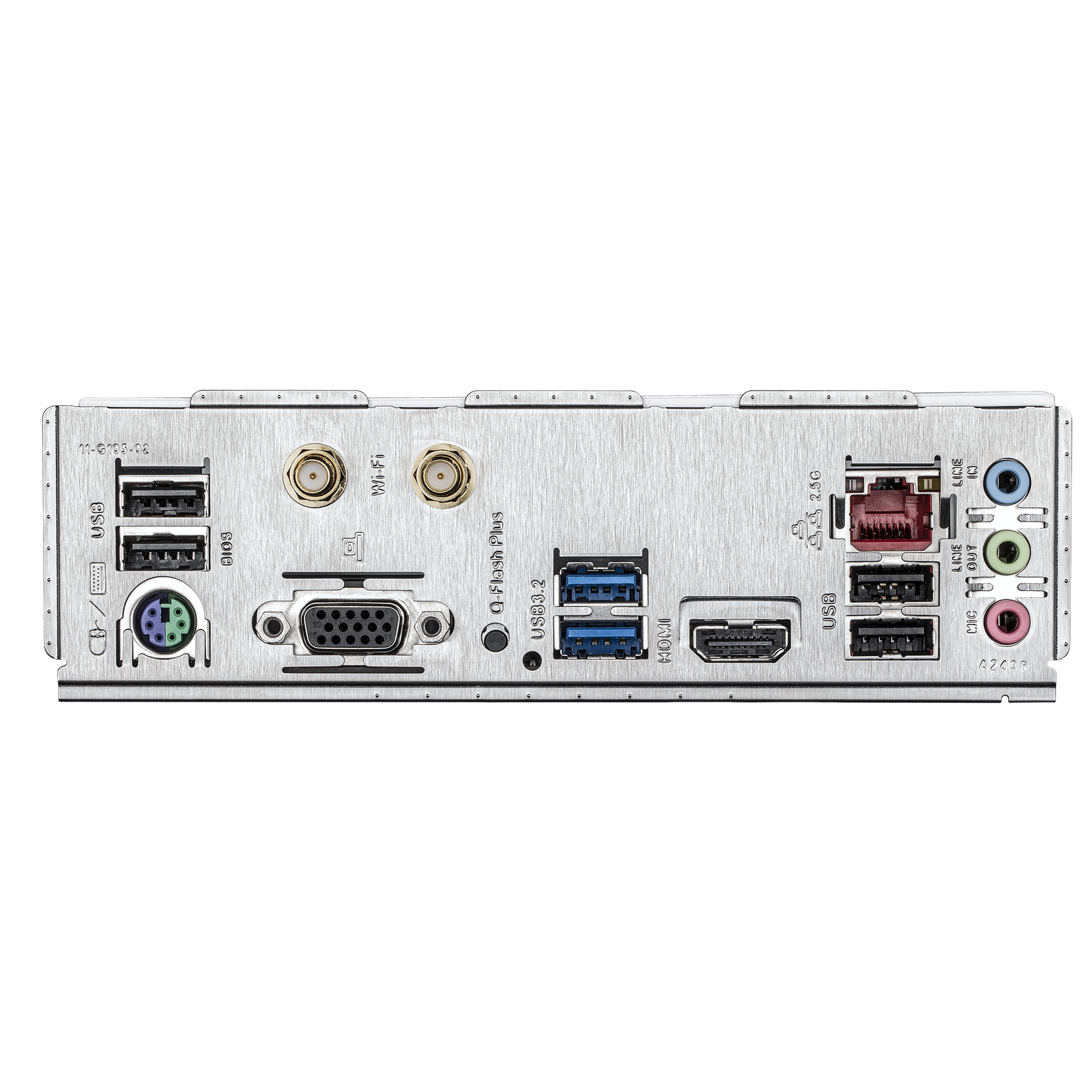

חיבורים ויציאות	4x USB 2.0/1.1 ports 1x PS/2 keyboard/mouse port 1x D-Sub port* 1x Q-Flash Plus button 2x USB 3.2 Gen 1 ports 1x HDMI port* 1x RJ-45 port 3x audio jacks Actual support may vary by CPU*
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות מיוחדות	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	Micro ATX Form Factor; 24.0cm x 22.5cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/B650M-GAMING-WIFI6E-rev-14
