| תקופת אחריות |
3 שנים
|
| תאימות למעבדים |
:AMD Socket AM5, support for
AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)
|
| ערכת שבבים |
AMD B650
|
| זיכרון |
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| גרפיקה |
Integrated Graphics Processor with AMD Radeon™ Graphics support:
x1 DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Support for DisplayPort 1.4 version*
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3*
Support for native HDMI 2.1 TMDS compatible ports**
(Graphics specifications may vary depending on CPU support)
|
| חריצי הרחבה |
x1 PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode-
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode-
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode-
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
x2 PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used*
x1 PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
|
| אחסון |
:x1 M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs-
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs-
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs-
x1 M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs-
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs-
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs-
x1 M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support
x4 SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
| רשת |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
| תקשורת אלחוטית |
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment)
|
| USB |
CPU:
x2 USB 3.2 Gen 2 Type-A ports (red) on the back panel –
1 x1 USB Type-C® port on the back panel, with USB 3.2 Gen 1 support –
:CPU+USB 2.0 Hub
4 x4 USB 2.0/1.1 ports on the back panel
:Chipset
x2 USB 3.2 Gen 1 ports available through the internal USB header
x1 USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
x4 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
:Chipset+USB 2.0 Hub
x4 USB 2.0/1.1 ports available through the internal USB headers
|
| שמע |
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
|

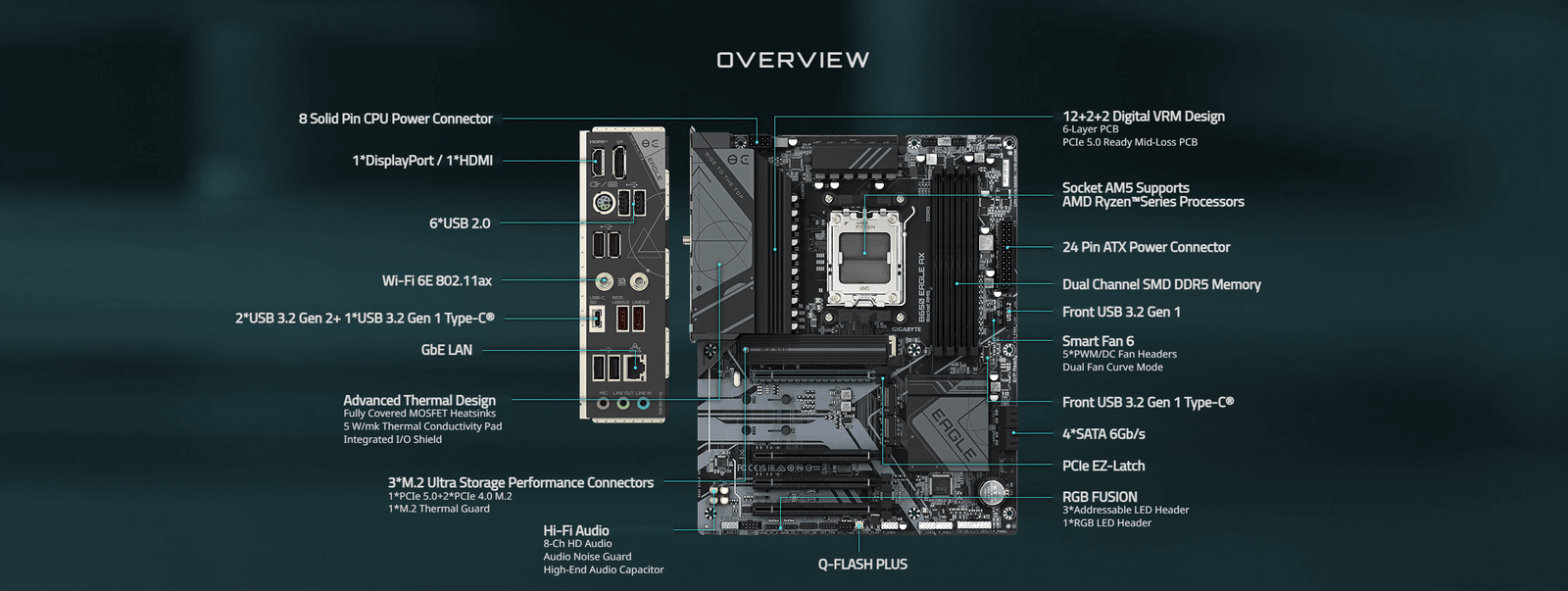

| חיבורים ויציאות |
x1 DisplayPort
x1 HDMI port
x1 PS/2 keyboard/mouse port
x2 SMA antenna connectors (2T2R)
x1 USB Type-C® port, with USB 3.2 Gen 1 support
x2 USB 3.2 Gen 2 Type-A ports (red)
x6 USB 2.0/1.1 ports
x1 RJ-45 port
x3 audio jacks
|
| חיבורים פנימיים |
x1 24-pin ATX main power connector
x1 8-pin ATX 12V power connector
x1 CPU fan header
x1 CPU fan/water cooling pump header
x2 system fan headers
x1 system fan/water cooling pump header
x3 addressable RGB Gen2 LED strip headers
x1 RGB LED strip header
x3 M.2 Socket 3 connectors
x4 SATA 6Gb/s connectors
x1 front panel header
x1 front panel audio header
x1 USB Type-C® header, with USB 3.2 Gen 1 support
x1 USB 3.2 Gen 1 header
x3 USB 2.0/1.1 headers
x1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
x1 Q-Flash Plus button
x1 serial port header j
x1 Clear CMOS jumper
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
|
| תצורה |
ATX Form Factor; 30.5cm x 24.4cm
|
| קיצור לאתר היצרן |
https://www.gigabyte.com/Motherboard/B650-EAGLE-AX#kf
|
