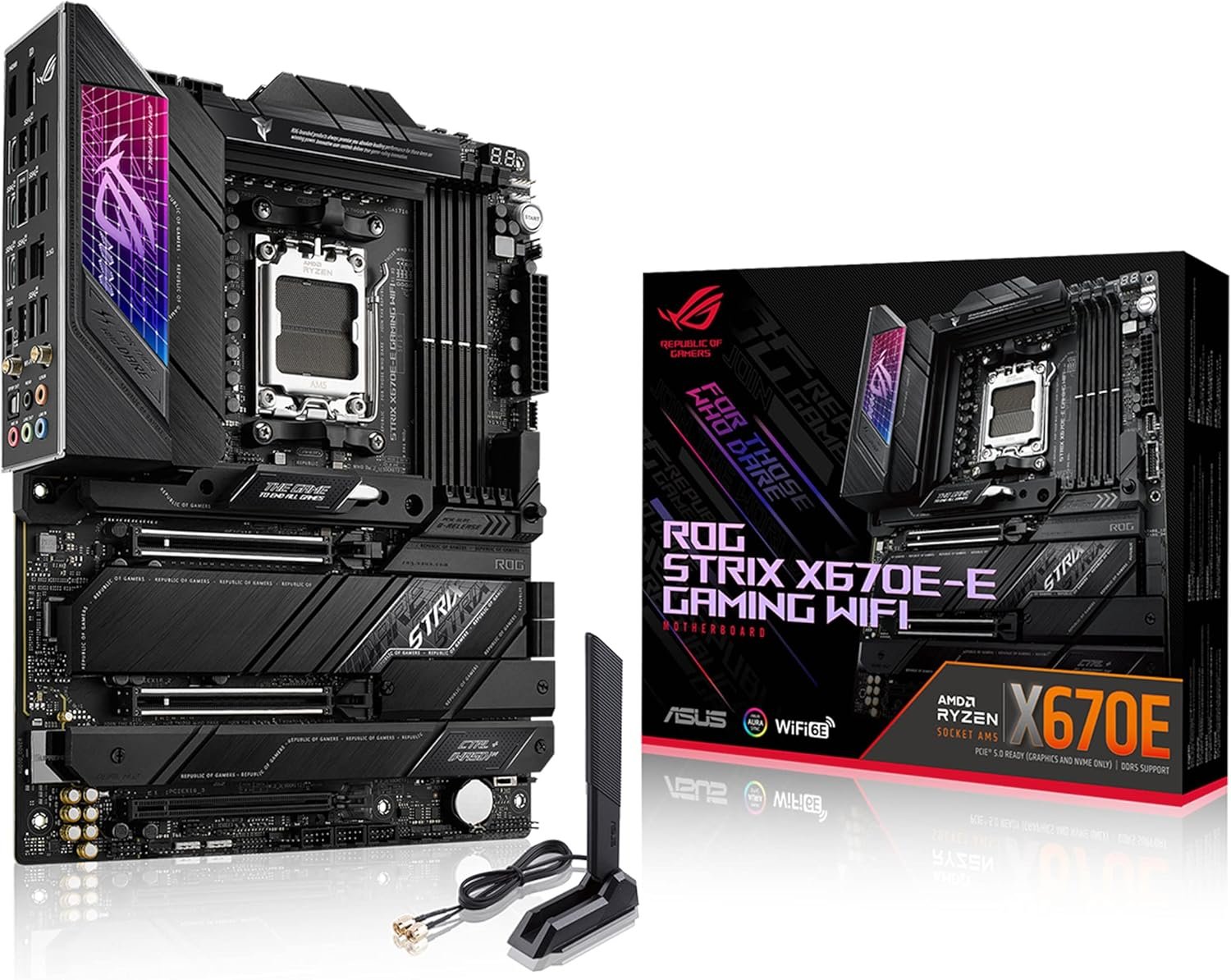

לוח אם – Asus ROG STRIX X670E-E GAMING WIFI DDR5 AM5

2,730.00

ROG Strix Gaming WiFi מגיע מצויד בביצועים חזקים ובמראה רענן. עם אספקת חשמל חזקה שתוכננה להתמודד עם המעבדים העדכניים ביותר של AMD Ryzen™ 7000.

מק״ט 90MB1BR0-M0EAY0 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Asus ROG STRIX X670E-E GAMING WIFI DDR5 AM5

תקופת אחריות

3 שנים

תאימות למעבדים

AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors

ערכת שבבים

AMD B650 Chipset

זיכרון RAM

x4 DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory
Dual Channel Memory Architecture

חיבורי גרפיקה

x1 DisplayPort
x1 HDMI® port

חריצי הרחבה

:AMD Ryzen™ Desktop Processors
x2 PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)
:AMD B650 Chipset
x1 PCIe 4.0 x16 slot (supports x4 mode)

אחסון

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
:AMD Ryzen™ Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
:AMD B650 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
x4 SATA 6Gb/s ports

תקשורת

x1 Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

חיבורים ויציאות

x1 USB 3.2 Gen 2×2 port (1 x Type-C®)
x12 USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C®)
x1 DisplayPort
x1 HDMI® port
x1 Wi-Fi Module
x1 Intel® 2.5Gb Ethernet port
x5 Gold-plated audio jacks
x1 Optical S/PDIF out port
x1 BIOS FlashBack™ button
x1 Clear CMOS button

חיבורים פנימיים

:Fan and Cooling related
x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x5 4-pin Chassis Fan headers
:Power related
x1 24-pin Main Power connector
x2 8-pin +12V Power connector
:Storage related
x4 M.2 slots (Key M)
x4 SATA 6Gb/s ports
:USB
x1 USB 3.2 Gen 2 connector (supports USB Type-C®)
x1 USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
x3 USB 2.0 headers support additional 4 USB 2.0 ports
:Miscellaneous
x3 Addressable Gen 2 headers
x1 Aura RGB header
x1 Alteration Mode Switch
x1 CPU Over Voltage jumper
x1 Front Panel Audio header (AAFP)
x1 Start button
x1 20-3 pin System Panel header with
:Chassis intrude function
x1 Thermal Sensor header
x1 Thunderbolt™ (USB4®) header

תכונות מיוחדות

+Extreme Engine Digi
5K Black Metallic Capacitors
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsinks
M.2 heatsink backplate
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers

אביזרים

:Cables
x2 SATA 6Gb/s cables
Additional Cooling Kit
x1 Thermal pad for M.2
:Miscellaneous
x1 ASUS Wi-Fi moving antennas
x1 Cable ties pack
x1 Massive M.2 Heatsink
x1 M.2 Q-Latch package for M.2 backplate
x1 M.2 Q-Latch package
x1 ROG Graphics card holder
x2 Rubber Packages for M.2
x1 Rubber Package for M.2 backplate
x1 ROG key chain
x1 ROG Strix sticker
x1 ROG Strix thank you card
:Documentation
x1 User guide

תצורה

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

קישור לאתר היצרן

https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-e-gaming-wifi-model/
