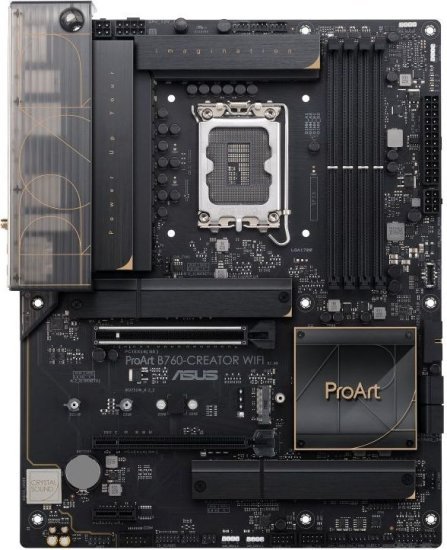

לוח אם – Asus PROART B760-CREATOR WIFI DDR5

1,210.00

לוח אם מבית ASUS, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR5, יציאות DP ו-HDMI וקישוריות WiFI ו-Bluetooth.

מק״ט 90MB1FY0-M1EAY0 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Asus PROART B760-CREATOR WIFI DDR5

תקופת אחריות

3 שנים

דגם

ProArt B760-CREATOR WIFI

תמיכת מעבד

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

ערכת שבבים

B760 Chipset

זיכרון RAM

x4 DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

חיבורי גרפיקה

x1 HDMI™ port**
x1 DisplayPort port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4.

חריצי הרחבה

x1 PCIe 5.0/4.0/3.0 x16 slot
x1 PCIe 4.0 x16 slot (supports x4 mode)
x1 PCIe 3.0 x1 slot**
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.

אחסון

M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
x4 SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run at PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by manually enabled in BIOS.

תקשורת

x1 Realtek 2.5Gb Ethernet
x1 Intel® 1Gb Ethernet
ASUS LANGuard
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

חיבורים ויציאות

x1 USB 3.2 Gen 2 port (1 x USB Type-C®)
x4 USB 3.2 Gen 1 ports (4 x Type-A)
x4 USB 2.0 ports (4 x Type-A)
x1 DisplayPort
x1 HDMITM port
x1 Wi-Fi Module
x1 Realtek 2.5Gb Ethernet port
x1 Intel® 1Gb Ethernet port
x5 Audio jacks
x1 Optical S/PDIF out port

חיבורים פנימיים

x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x4 4-pin Chassis Fan headers
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x1 4-pin +12V Power connector
x1 6-pin PD_12V Power connector
x3 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 3.2 Gen 2×2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
x1 USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
x2 USB 2.0 headers support additional 4 USB 2.0 ports
x3 Addressable Gen 2 headers
x1 AURA RGB header
x1 Clear CMOS header
x1 COM Port header
x1 Front Panel Audio header (AAFP)
x1 SPI TPM header (14-1pin)
x1 20-5 pin System Panel header
x1 Thermal Sensor header
x1 Thunderbolt™ header

תכונות מיוחדות

DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
M.2 Q-Latch
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
Flexible M.2 heatsink
VRM heatsink design
ProCool
Pre-mounted I/O shield
AURA RGB header
Addressable Gen 2 headers

אביזרים

x2 SATA 6Gb/s cables
x1 ASUS Wi-Fi moving antennas
x2 M.2 Rubber packages
x1 ProArt ruler
x1 Q-connector
x1 ACC Express Activation Key Card
x1 User guide

תצורה

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
