| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
1700
|
| ערכת שבבים |
Z790
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
Micro-ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMITM port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 8 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
4x USB 3.2 Gen 1 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports*
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth*
|
| ממשק אחסון |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10*
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
:Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
|
| כרטיס רשת קווי |
1x Intel® 1Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
M.2 slot only (Key E, CNVi & PCIe)*
Wi-Fi module is sold separately*
|
| חיבורים פנימיים |
:Fan and cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
1x 8-pin + 12V Power connector
1x 4-pin + 12V Power connector
:Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x M.2 slot (Key E)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
|

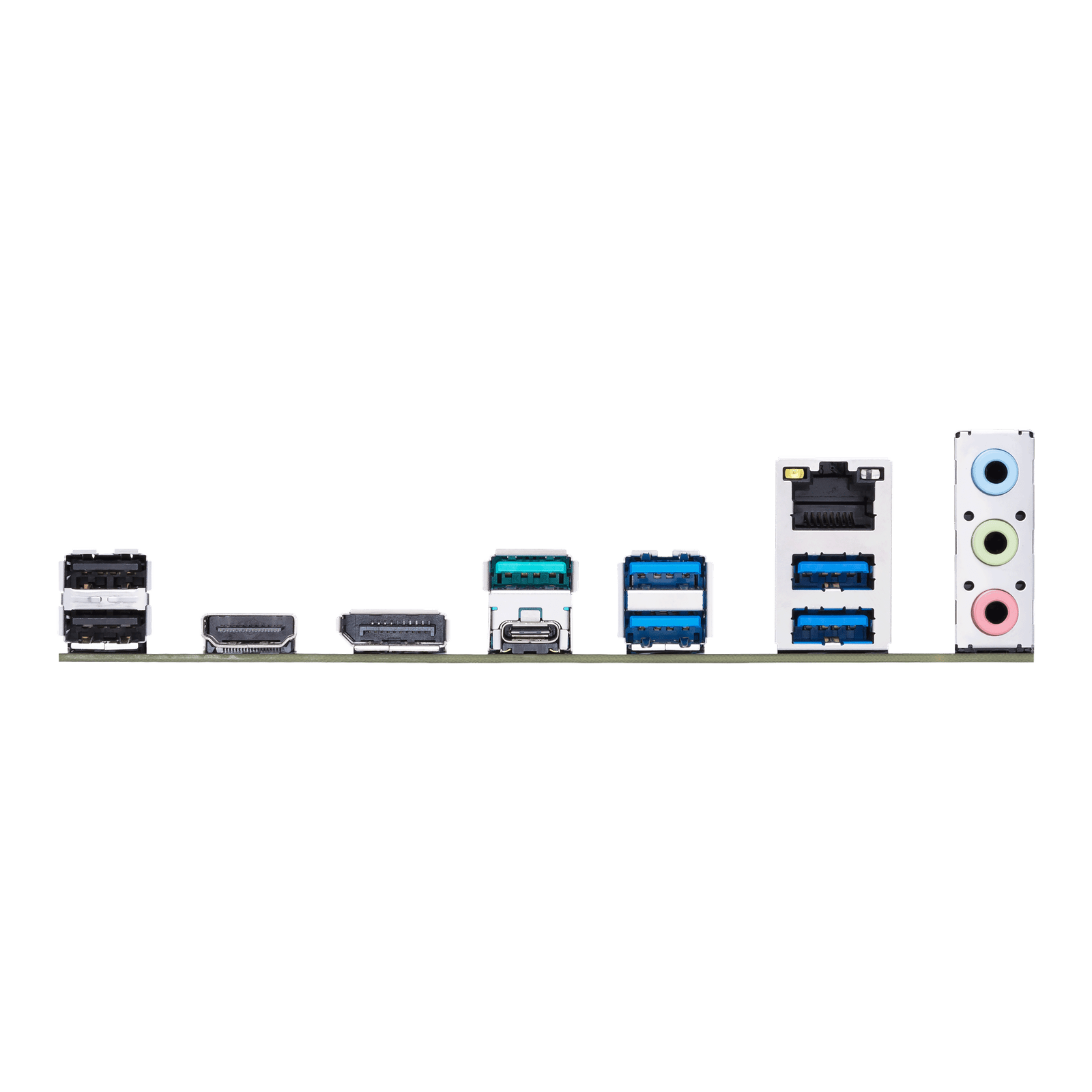

| חיבורים ויציאות |
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
4x USB 3.2 Gen 1 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMITM port
1x Intel® 1Gb Ethernet port
3x Audio jacks
|
| BIOS |
(128+64) 192Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|

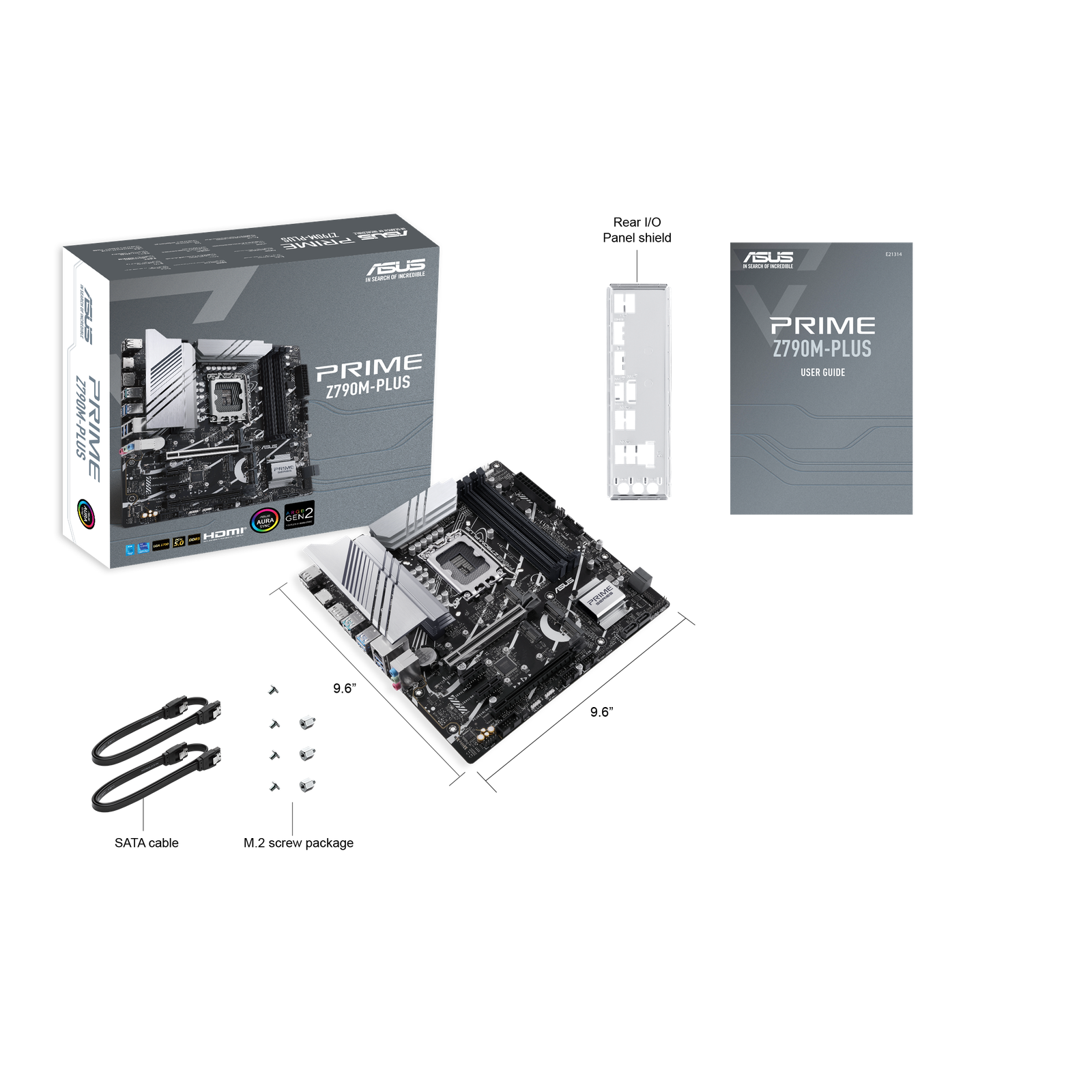

| אביזרים כלולים |
Cables
2x SATA 6Gb/s cables
:Miscellaneous

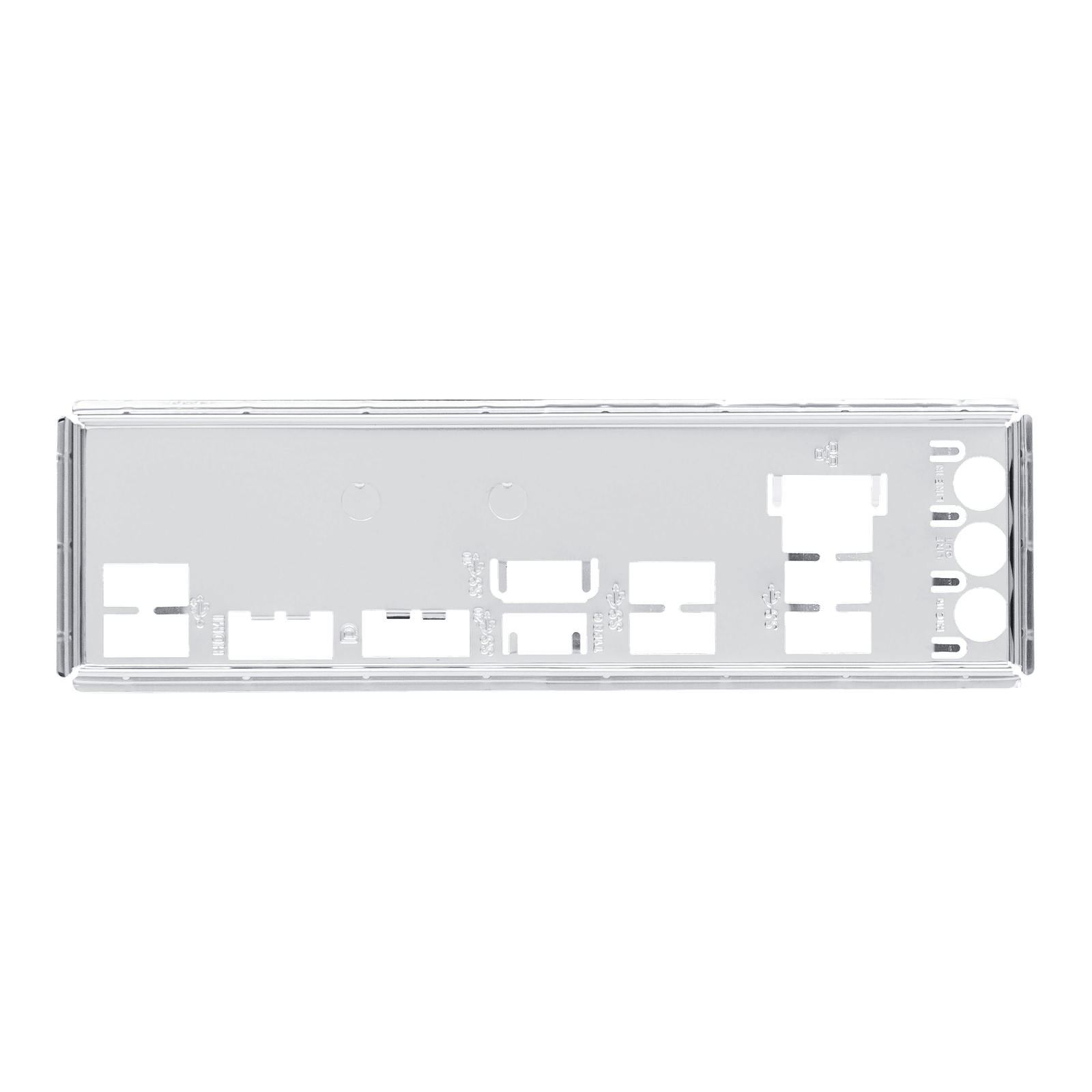

1x I/O Shield
2x Screw packages for M.2 SSD
:Documentation
1x User guide
|
| תצורה |
mATX Form Factor
9.6inch x 9.6 inch (24.4 cm x 24.4 cm)
|
