| תקופת אחריות | 3 שנים |
|---|
| תאימות למעבדים | AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors |
|---|
| ערכת שבבים | AMD X670 Chipset |
|---|
| זיכרון RAM | x4 DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture |
|---|
| חיבורי גרפיקה | x1 DisplayPort
x1 HDMI® port |
|---|
| חריצי הרחבה | :AMD Ryzen™ 7000 Series Desktop Processors
x1 PCIe 5.0 x16 slot
:AMD X670 Chipset
x1 PCIe 4.0 x16 slot (supports x4 mode)
x1 PCIe 4.0 x4 slots |
|---|
| אחסון | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
:AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
:AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
x4 SATA 6Gb/s ports |
|---|
| תקשורת | x1 Realtek 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 |
|---|
| חיבורים ויציאות | x1 USB 3.2 Gen 2×2 port (1 x USB Type-C®)
x4 USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
x5 USB 3.2 Gen 1 ports (5 x Type-A)
x1 DisplayPort
x1 HDMI® port
x1 Wi-Fi Module
x1 Realtek 2.5Gb Ethernet port
x5 Audio jacks
x1 BIOS FlashBack™ button |
|---|
| חיבורים פנימיים | :Fan and Cooling related
x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x4 4-pin Chassis Fan headers
x1 W_PUMP+ header
:Power related
x1 24-pin Main Power connector
x2 8-pin +12V Power connector
:Storage related
x4 M.2 slots (Key M)
x4 SATA 6Gb/s ports
:USB
x1 USB 3.2 Gen 2 connector (supports USB Type-C®)
x1 USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
x3 USB 2.0 headers support additional 4 USB 2.0 ports
:Miscellaneous
x3 Addressable Gen 2 headers
x1 Aura RGB headers
x1 Clear CMOS header
x1 COM Port header
x1 CPU Over Voltage jumper
x1 Front Panel Audio header (AAFP)
x1 Power button
x1 SPI TPM header (14-1pin)
x1 20-5 pin System Panel header
x1 Thermal Sensor header
x1 Thunderbolt™ header |
|---|
| תכונות מיוחדות | ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
LANGuard
Overvoltage Protection
Safeslot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Aura Sync
Aura RGB headers
Addressable Gen 2 headers |
|---|
| אביזרים | :Cables
x2 SATA 6Gb/s cables
:Miscellaneous
x1 ASUS Wi-Fi moving antenna
x2 Rubber packages for M.2
x2 Screw packages for M.2 SSD
x1 Q-connector
:Documentation
x1 User guide |
|---|
| תצורה | ATX Form Factor
12inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
|---|

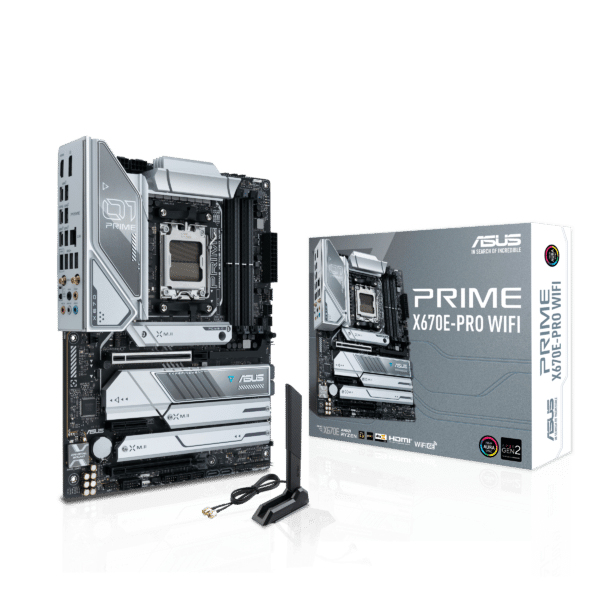

| קישור לאתר היצרן | https://www.asus.com/motherboards-components/motherboards/prime/prime-x670e-pro-wifi/ |
|---|
| Ram Memory | DDR5 |
|---|
| Socket | AM5 |
|---|
